SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 COVER CYLINDER HEADFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR FILTERFIG.12 CLEANER ASSYFIG.13 MUFFLERFIG.14 OIL PUMPFIG.15 COOLING FANFIG.16 2ND AIRFIG.17 TRANSMISSION (1)FIG.18 TRANSMISSION (2)FIG.19 KICK STARTER

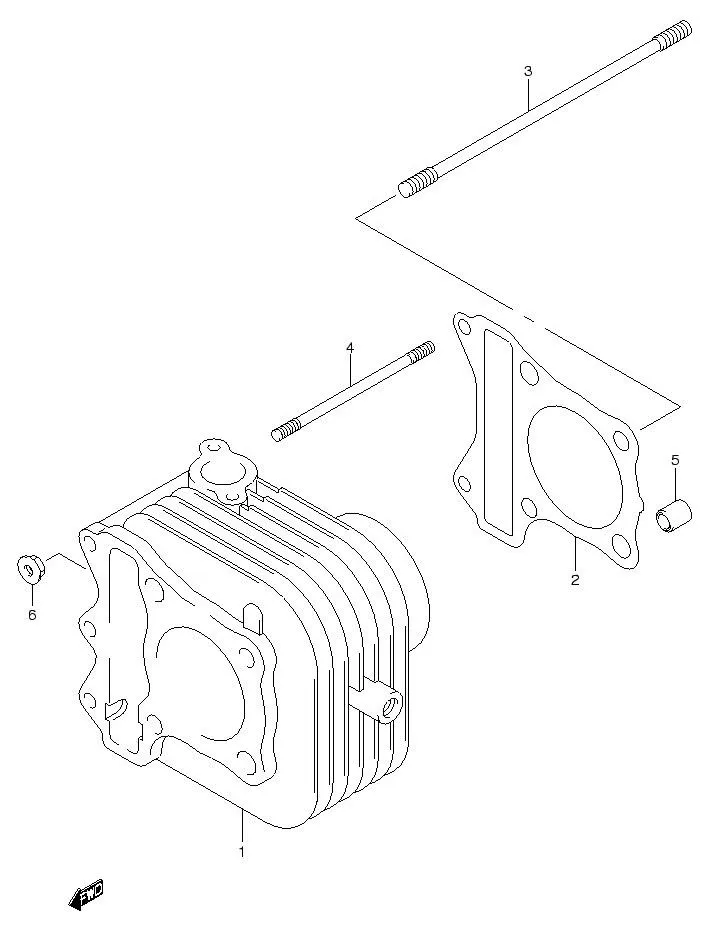

FIG.3 CYLINDER

FIG.3 CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 11211-33G10-0F0
SUB: 11211B33G01N0F1		 CYLINDER 1 Rp404.000
2 11241-46G10-000
SUB: 11241B46G10N000		 GASKET, CYLINDER 1 Rp7.500
3 09108-08272-000
SUB: 09108B08272N000		 BOLT, STUD (L:185) 4 Rp26.500
4 01421-0695A-000
SUB: 01421B0695BN000		 BOLT, STUD (L:95) 2 Rp7.000
5 04211-11129-000 PIN 2 Rp2.000
6 08316-1006A-000
SUB: 08316B1006BN000		 NUT 1 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
