SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 COVER CYLINDER HEADFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR FILTERFIG.12 CLEANER ASSYFIG.13 MUFFLERFIG.14 OIL PUMPFIG.15 COOLING FANFIG.16 2ND AIRFIG.17 TRANSMISSION (1)FIG.18 TRANSMISSION (2)FIG.19 KICK STARTER

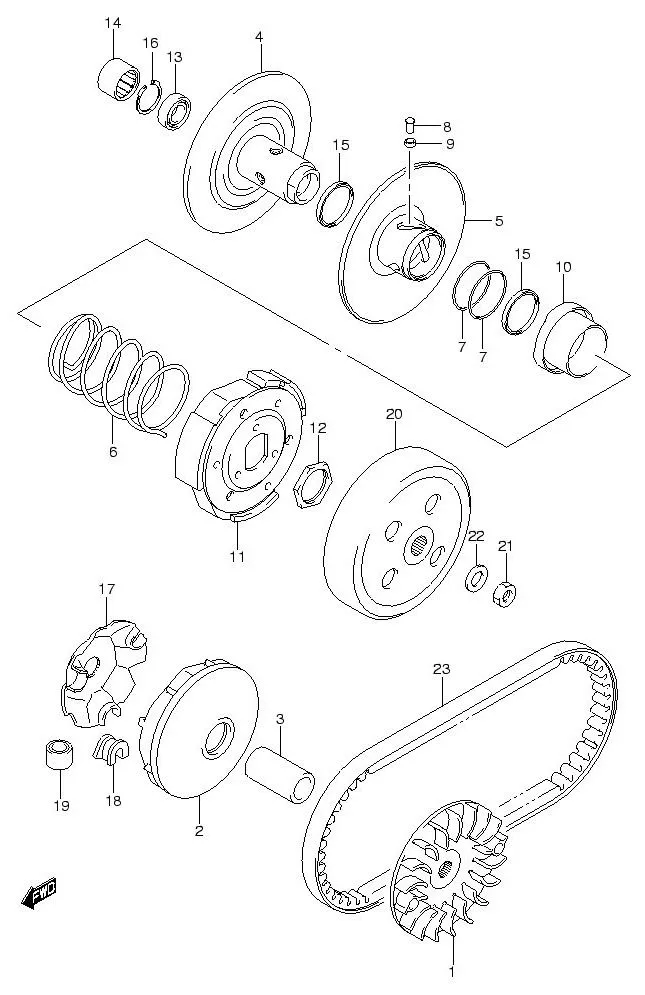

FIG.17 TRANSMISSION (1)

FIG.17 TRANSMISSION (1)
No No. Part Description Qty Price Per Pcs Remarks
1 21111-33G00-000 FACE, FIXED DRINE 1 Rp76.500
2 21120-33G10-000
SUB: 21120-33G00-000		 FACE, MOVABLE DRIVE 1 Rp141.500
3 21125-33G00-000 SPACER, MOVABLE DRIVE 1 Rp68.000
4 21210-33G00-000 FACE, FIXED DRIVEN 1 Rp347.000
5 21240-33G01-000
SUB: 21240-33G00-000		 FACE, MOVABLE DRIVEN 1 Rp213.500
6 21243-33G00-001
SUB: 21243-33G00-000		 SPRING, MOVABLE DRIVEN 1 Rp32.500
7 21245-33G00-000 O RING, MOVABLE DRIVEN 2 Rp12.500
8 21248-33G00-001
SUB: 21248-33G00-000		 PIN, MOVABLE DRIVEN 3 Rp12.500
9 21249-33G00-000 SPACER, MOVABLE DRIVEN PIN 3 Rp4.500
10 21471-33G00-001
SUB: 21471-33G00-000		 SHEET, MOVABLE DRIVEN 1 Rp21.000
11 21501-46G00-000 CLUTCH ASSY, SHOE 1 Rp282.500
12 09140-28004-000 NUT, SHOE CLUTCH 1 Rp8.000
13 09262-15035-000 BEARING, FIXED DRIVEN, L 1 Rp107.000
14 09263-20093-000 BEARING, FIXED DRIVEN, R 1 Rp112.500
15 09284-34003-000 SEAL, MOVABLE DRIVEN OIL 2 Rp21.500
16 09381-24005-000 CIRCLIP, FIXED DRIVEN 1 Rp8.000
17 21431-33G00-000 PLATE, MOVABLE DRIVE 1 Rp78.000
18 21481-14F00-000 DAMPER, MOVABLE DRIVE PLATE 3 Rp23.500
19 21650-33G50-000
SUB: 21650-33G10-000		 ROLLER, MOVABLE DRIVE 6 Rp20.000
20 21220-20E21-000
SUB: 21220B20E21N000		 HOUSING, CLUTCH 1 Rp106.000
21 09140-12039-000
SUB: 09140B12039N000		 NUT, CLUTCH HOUSING 1 Rp6.500
22 09164-12020-000 WASHER 1 Rp9.500
23 27601-46G10-000 V-BELT, DRIVE 1 Rp237.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
