SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 COVER CYLINDER HEADFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR FILTERFIG.12 CLEANER ASSYFIG.13 MUFFLERFIG.14 OIL PUMPFIG.15 COOLING FANFIG.16 2ND AIRFIG.17 TRANSMISSION (1)FIG.18 TRANSMISSION (2)FIG.19 KICK STARTER

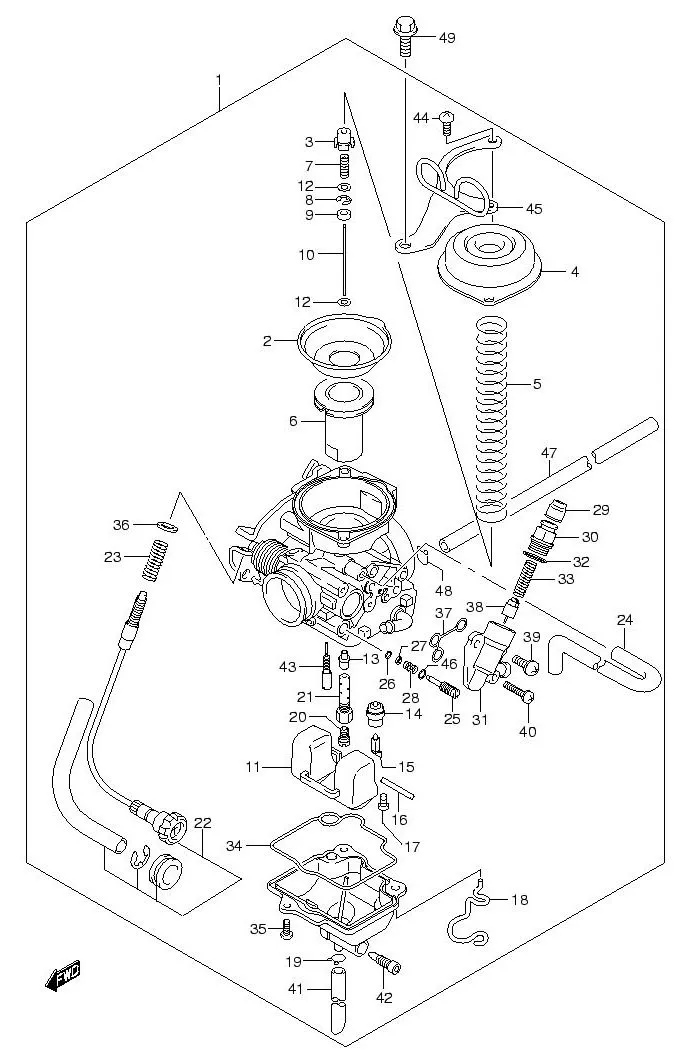

FIG.10 CARBURETOR

FIG.10 CARBURETOR
No No. Part Description Qty Price Per Pcs Remarks
1 13200-13H12-000
SUB: 13200B13H10N000		 CARBURETOR ASSY 1 Rp1.007.000
2 13507-25G00-000
SUB: 13507B25G00N000		 .DIAPHRAGM 1 Rp24.500
3 13418-12F40-000
SUB: 13418B12F40N000		 .HOLDER 1 Rp12.500
4 13502-46G10-000
SUB: 13502B46G10N000		 .COVER, DIAPHRAGM 1 Rp32.500
5 13573-46G00-000
SUB: 13573B46G00N000		 .SPRING 1 Rp10.000
6 13500-13H00-000
SUB: 13500B13H00N000		 .VALVE ASSY, PISTON 1 Rp84.000
7 13481-23F00-000 .SPRING 1 Rp8.500
8 13533-98410-000
SUB: 13533B98410N000		 .E RING 1 Rp6.000
9 13387-23F00-000 .RING 1 Rp8.500
10 13383-46G00-000 .JET, NEEDLE 1 Rp17.000
11 13240-47E00-000 .FLOAT ASSY 1 Rp33.500
12 13382-23F00-000 .WASHER 2 Rp8.500
13 13341-46G00-000 .NEEDLE, JET 1 Rp20.000
14 DISCONTINUE
SUB: 13370-46G00-000		 .SEAT, VALVE 1 -
15 13551-13H00-000
SUB: 13551-46G00-000		 .NEEDLE ASSY 1 Rp101.000
16 13254-20010-000 .PIN, FLOAT 1 Rp7.500
17 02112-04083-000 .SCREW 1 Rp7.500
18 13274-13H00-000
SUB: 13274B13H00N000		 .CLIP 1 Rp18.500
19 13259-98010-000
SUB: 13259B98010N000		 .CLIP 1 Rp9.500
20 09491-28016-000
SUB: 09491B28016N000		 .JET, MAIN 1 Rp12.500
21 13342-13H00-000
SUB: 13342B13H00N000		 .HOLDER, JET 1 Rp50.000
22 13267-13H00-000
SUB: 13267B13H00N000		 .SCREW 1 Rp71.000
23 13268-51010-000
SUB: 13268B51010N000		 .SPRING 1 Rp7.500
24 DISCONTINUE
SUB: 13686B13H00N000		 .HOSE 1 -
25 13279-13H00-000
SUB: 13279B13H00N000		 .ADJUSTER 1 Rp30.000
26 13295-29900-000
SUB: 13295B29900N000		 .O RING 1 Rp8.000
27 13291-29900-000
SUB: 13291B29900N000		 .WASHER 1 Rp6.500
28 13268-47070-000 .SPRING 1 Rp8.000
29 13681-04010-000 .CAP 1 Rp6.500
30 13418-43410-000 .HOLDER, GUIDE 1 Rp7.500
31 13412-46G00-000 .BODY ASSY, STARTER 1 Rp52.000
32 13278-47090-000 .O RING 1 Rp5.500
33 DISCONTINUE
SUB: 13417B26F00N000		 .SPRING 1 -
34 13258-23F00-000 .O RING 1 Rp13.500
35 13602-38A10-000 .SCREW 3 Rp8.500
36 13432-44120-000
SUB: 13432B44120N000		 .WASHER 1 Rp10.500
37 13258-46G00-000 .O RING 1 Rp8.000
38 13411-46G00-000 .PLUNGER 1 Rp33.500
39 02112-35127-000 .SCREW 2 Rp9.500
40 DISCONTINUE
SUB: 13601-04188-000		 .SCREW 1 -
41 DISCONTINUE
SUB: 13684B04420N000		 .HOSE 1 -
42 13247-25600-000
SUB: 13247-25G00-000		 .SCREW, DRAIN 1 Rp8.500
43 09492-12003-000
SUB: 09492B12003N000		 .JET, PILOT 1 Rp19.000
44 13602-05108-000
SUB: 13602B05108N000		 .SCREW 2 Rp8.500
45 13270-13H00-000
SUB: 13270B13H00N000		 .PLATE 1 Rp40.000
46 13509-17C00-000 .O RING 1 Rp7.500
47 DISCONTINUE
SUB: 13683B29B50N000		 .HOSE 1 -
48 13529-13H00-000
SUB: 13529B13H00N000		 .CLIP 1 Rp16.500
49 01547-0616A-000 BOLT 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
