SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 COVER CYLINDER HEADFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR FILTERFIG.12 CLEANER ASSYFIG.13 MUFFLERFIG.14 OIL PUMPFIG.15 COOLING FANFIG.16 2ND AIRFIG.17 TRANSMISSION (1)FIG.18 TRANSMISSION (2)FIG.19 KICK STARTER

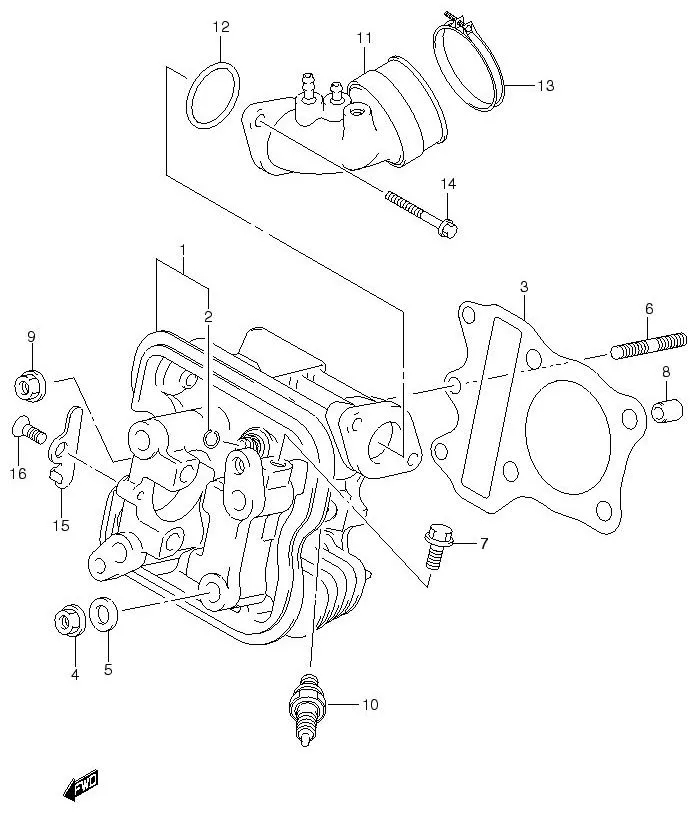

FIG.2 CYLINDER HEAD

FIG.2 CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 11110B13H00N000		 HEAD, CYLINDER 1 -
2 09381-10004-000 .SNAP RING 2 Rp3.000
3 11141-46G10-000
SUB: 11141B46G10N000		 GASKET, CYLINDER HEAD 1 Rp20.500
4 08316-1008A-000
SUB: 08316B1008BN000		 NUT 4 Rp3.500
5 09160-08121-000 WASHER 4 Rp6.500
6 01421-0630B-000
SUB: 01421B0630BN000		 BOLT, STUD 1 Rp3.500
7 01547-0610A-000
SUB: 01547-0610B-000		 PLUG 1 Rp3.000
8 04211-11129-000 PIN 2 Rp2.000
9 08316-1006A-000
SUB: 08316B1006BN000		 NUT 2 Rp2.000
10-1 09482-00710-000
SUB: 09482-00710L000		 PLUG, SPARK (C6HSA) 1 Rp24.500
10-2 09482-00810-000
SUB: 09482-00810L000		 PLUG, SPARK (U20FS-U) 1 Rp18.500
11 13110-13H00-000
SUB: 13110B13H00N000		 PIPE, INTAKE 1 Rp284.000
12 09280-28005-000
SUB: 09280B28005N000		 O RING, D:2.4, ID:27.7 1 Rp4.000
13 DISCONTINUE
SUB: 13170B13H00N000		 CLAMP 1 -
14 01547-0630A-000
SUB: 01547B0630AN000		 BOLT 1 Rp6.500
15 12862-33G00-000
SUB: 12862B33G00N000		 RETAINER, CAMSHAFT 1 Rp23.500
16 02122-0612A-000
SUB: 02122B0612BN000		 SCREW 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
