SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 COVER CYLINDER HEADFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR FILTERFIG.12 CLEANER ASSYFIG.13 MUFFLERFIG.14 OIL PUMPFIG.15 COOLING FANFIG.16 2ND AIRFIG.17 TRANSMISSION (1)FIG.18 TRANSMISSION (2)FIG.19 KICK STARTER

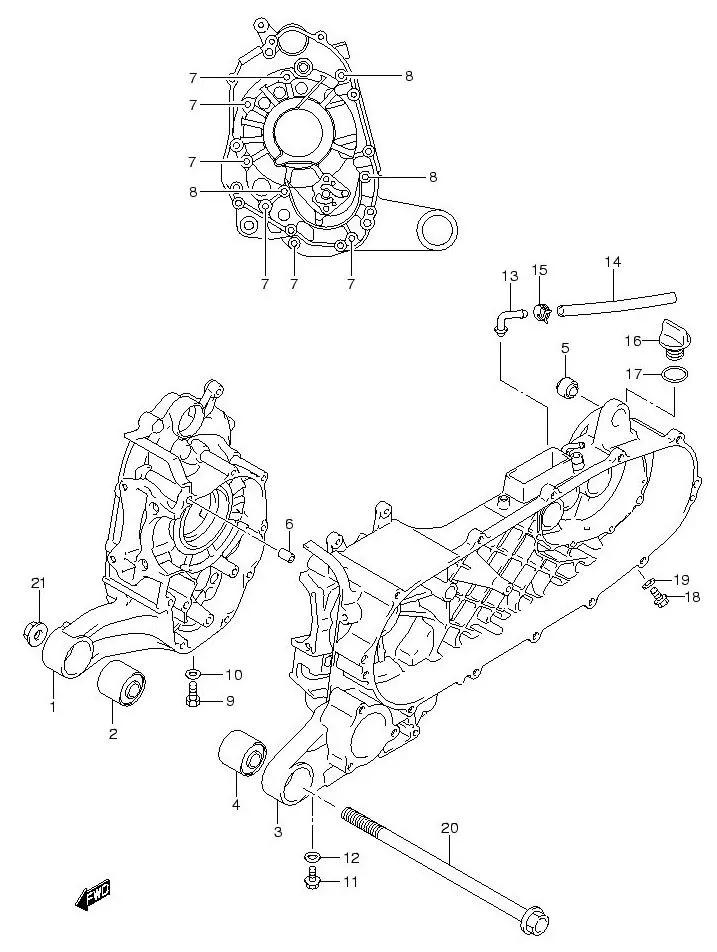

FIG.4 CRANKCASE

FIG.4 CRANKCASE
No No. Part Description Qty Price Per Pcs Remarks
1 11310-46G10-000
SUB: 11310B46G10N000		 CRANKCASE SET, RH 1 Rp305.500
2 11315-46G00-000 .BUSH, ENGINE MTG 1 Rp69.500
3 11320-46G30-000
SUB: 11320B46G30N000		 CRANKCASE SET, LH 1 Rp368.500
4 11315-46G00-000 BUSH, ENGINE MTG 1 Rp69.500
5 09319-10032-000 BUSH, 10.2X22.3X20 1 Rp24.500
6 09206-08008-000
SUB: 09206B08008N000		 PIN 2 Rp4.000
7 01547-0655A-000
SUB: 01547-0655B-000		 BOLT 6 Rp7.500
8 01547-0675A-000
SUB: 01547B0675BN000		 BOLT 3 Rp7.500
9 01500-1016A-000
SUB: 01500B1016BN000		 PLUG, OIL DRAIN 1 Rp7.500
10 09168-10L02-000
SUB: 09168B10002N000		 GASKET, 10X14X3.6 1 Rp2.500
11 01550-0812B-000 PLUG, OIL CHECK 2 Rp5.500
12 09168-08016-000 GASKET, 8.2X14X1 2 Rp25.000
13 DISCONTINUE
SUB: 16912B46G00N000		 UNION, GEAR BOX BREATHE 1 -
14 11432-13H00-000
SUB: 11432B13H00N000		 HOSE, GEAR BOX BREATHER 1 Rp8.500
15 09401-10401-000
SUB: 09401B10401N000		 CLIP, BREATHER HOSE 1 Rp5.500
16 DISCONTINUE
SUB: 11971B46G10N000		 PLUG, GEAR BOX OIL FILLER 1 -
17 09280-14011-000 O RING, D:2.5 ID:13.8 1 Rp7.500
18 01550-0812B-000 PLUG, GEAR BOX OIL DRAIN 1 Rp5.500
19 09168-08016-000 GASKET, 8.2X14X1 1 Rp25.000
20 09103-12046-000 BOLT, L:204 1 Rp21.500
21 08316-1012A-000
SUB: 08316B1012BN000		 NUT 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
