SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 COVER CYLINDER HEADFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR FILTERFIG.12 CLEANER ASSYFIG.13 MUFFLERFIG.14 OIL PUMPFIG.15 COOLING FANFIG.16 2ND AIRFIG.17 TRANSMISSION (1)FIG.18 TRANSMISSION (2)FIG.19 KICK STARTER

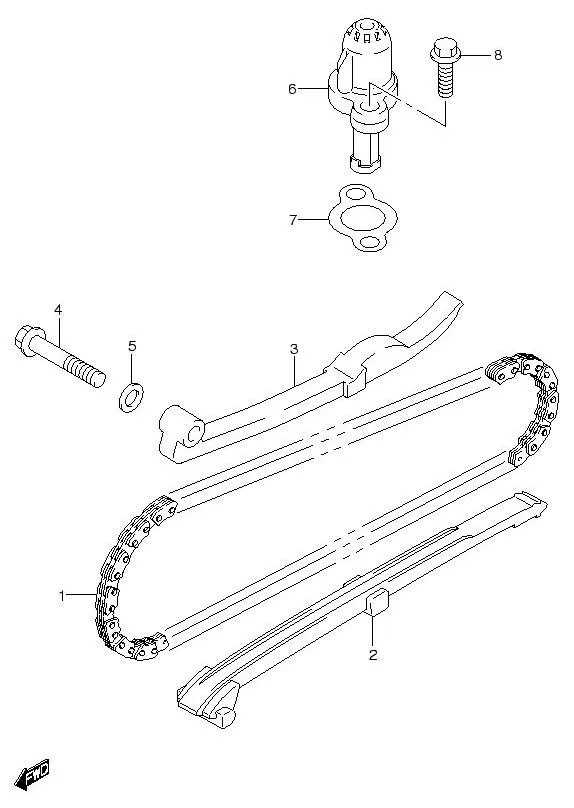

FIG.9 CAMCHAIN

FIG.9 CAMCHAIN
No No. Part Description Qty Price Per Pcs Remarks
1 12760-20G11-000
SUB: 12760B20G00N000		 CHAIN, CAMSHAFT DRIVE 1 Rp100.000
2 12771-33G10-000
SUB: 12771B33G10N000		 GUIDE, CAM CHAIN 1 Rp63.000
3 12811-28G10-000 TENSIONER, CAM CHAIN 1 Rp65.000
4 09103-06247-000
SUB: 09103B06247N000		 BOLT, 6X32 1 Rp4.000
5 09168-06004-000
SUB: 09168B06004N000		 WASHER, 6.2X11X1.2 1 Rp2.500
6 12830-46G10-000
SUB: 12830B46G00N000		 ADJUSTER ASSY, TENSIONER 1 Rp150.500
7 12837-46G10-000
SUB: 12837B46G00N000		 GASKET, TENSIONER ADJUSTER 1 Rp4.000
8 01547-0620B-000 BOLT 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
