SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 COVER CYLINDER HEADFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR FILTERFIG.12 CLEANER ASSYFIG.13 MUFFLERFIG.14 OIL PUMPFIG.15 COOLING FANFIG.16 2ND AIRFIG.17 TRANSMISSION (1)FIG.18 TRANSMISSION (2)FIG.19 KICK STARTER

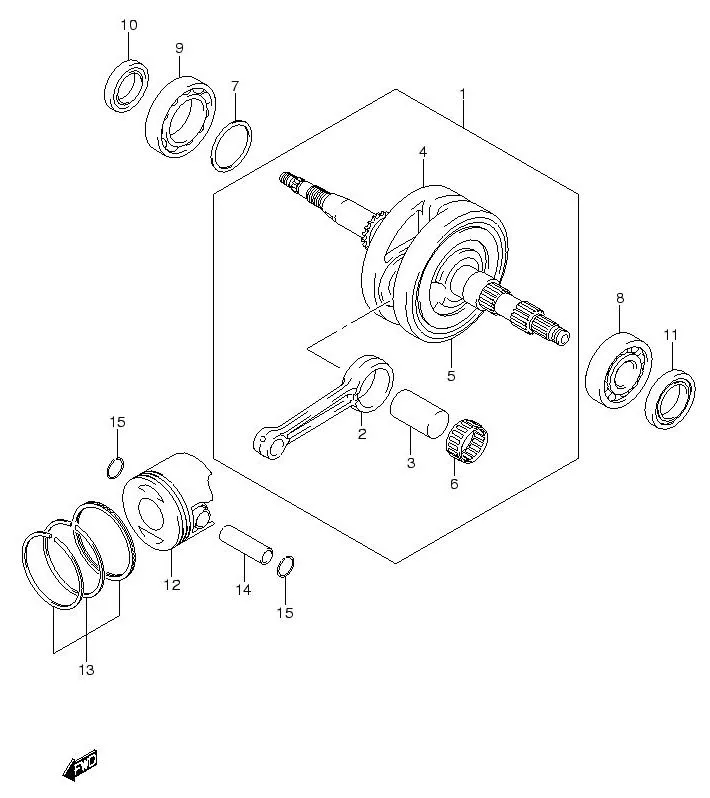

FIG.6 CRANKSHAFT

FIG.6 CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 12200B46G00N000		 CRANKSHAFT ASSY 1 -
2 12161-46G50-000
SUB: 12161B46G00N000		 .CONNROD 1 Rp87.000
3 DISCONTINUE
SUB: 12210-46G00-000		 .PIN, CRANK 1 -
4 12221-46G01-000
SUB: 12221B46G00N000		 .CRANKSHAFT, R 1 Rp207.000
5 DISCONTINUE
SUB: 12260B46G00N000		 .CRANKSHAFT, L 1 -
6 09263-28034-0B0 .BEARING, CRANK PIN 1 Rp43.000
7-10 DISCONTINUE
SUB: 09181-35109-000		 SHIM, 35X42X0.95 1 -
7-17 09181-35125-000 SHIM, 35X42X1.3 1 Rp22.500
7-16 DISCONTINUE
SUB: 09181-35123-000		 SHIM, 35X42X1.25 1 -
7-15 DISCONTINUE
SUB: 09181-35120-000		 SHIM, 35X42X1.2 1 -
7-14 09181-35118-000 SHIM, 35X42X1.15 1 Rp22.500
7-13 09181-35116-000 SHIM, 35X42X1.1 1 Rp28.000
7-12 09181-35113-000 SHIM, 35X42X1.05 1 Rp10.500
7-11 09181-35110-000 SHIM, 35X42X1.0 1 Rp34.000
7-8 DISCONTINUE
SUB: 09181-35107-000		 SHIM, 35X42X0.85 1 -
7-1 09181-35101-000 SHIM, 35X42X0.5 1 Rp14.500
7-2 09181-35025-000 SHIM, 35X42X0.55 1 Rp18.000
7-3 DISCONTINUE
SUB: 09181-35103-000		 SHIM, 35X42X0.6 1 -
7-4 DISCONTINUE
SUB: 09181-35026-000		 SHIM, 35X42X0.65 1 -
7-5 09181-35104-000 SHIM, 35X42X0.7 1 Rp10.500
7-6 09181-35105-000 SHIM, 35X42X0.75 1 Rp10.000
7-7 DISCONTINUE
SUB: 09181-35106-000		 SHIM, 35X42X0.8 1 -
7-9 DISCONTINUE
SUB: 09181-35108-000		 SHIM, 35X42X0.9 1 -
8 09262-25L02-000
SUB: 09262B25159N000		 BEARING, L 1 Rp73.500
9 09262-35088-000
SUB: 09262B35079N000		 BEARING, R 1 Rp88.500
10 09283-22033-000 OIL SEAL, R 1 Rp73.000
11 09283-25095-001
SUB: 09283-25095-000		 OIL SEAL, L 1 Rp38.500
12 12111-46G11-0F0
SUB: 12111B46G11N0F0		 PISTON 1 Rp120.500
13 12140-46G10-000
SUB: 12140B46G10N000		 RING SET, PISTON 1 Rp42.500
14 12151-20G00-000 PIN, PISTON 1 Rp18.000
15 09381-14001-000 CIRCLIP 2 Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
