SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 COVER CYLINDER HEADFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR FILTERFIG.12 CLEANER ASSYFIG.13 MUFFLERFIG.14 OIL PUMPFIG.15 COOLING FANFIG.16 2ND AIRFIG.17 TRANSMISSION (1)FIG.18 TRANSMISSION (2)FIG.19 KICK STARTER

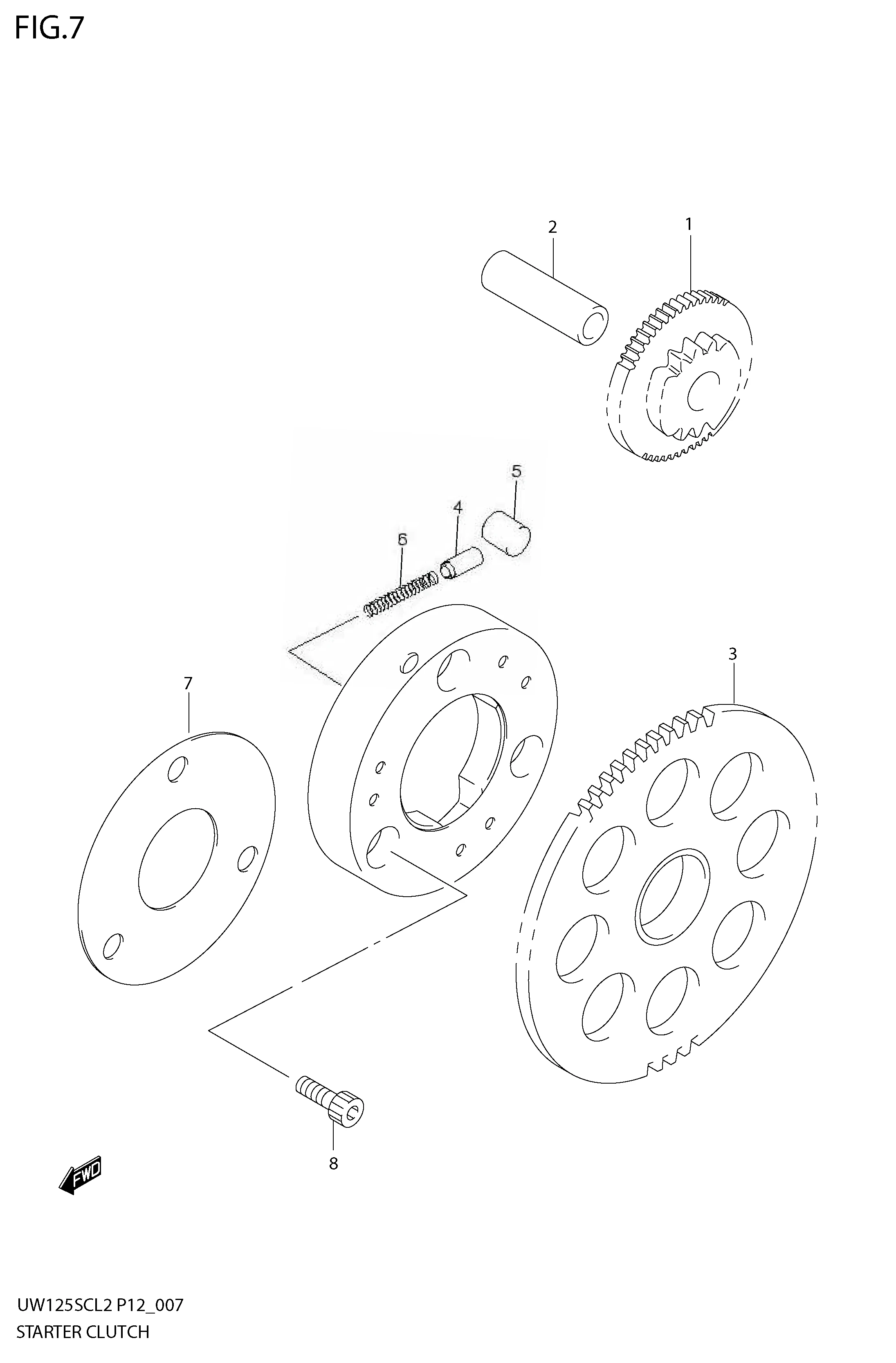

FIG.7 STARTER CLUTCH

FIG.7 STARTER CLUTCH
No No. Part Description Qty Price Per Pcs Remarks
1 12611-46G20-000
SUB: 12611-46G00-000		 GEAR, STARTER IDLE 1 Rp74.500
2 09206-13007-000
SUB: 09206B13007N000		 PIN 1 Rp35.500
3 12620-46G00-000
SUB: 12620B46G00N000		 CLUTCH SET, STARTER 1 Rp159.000
4 12633-05300-000
SUB: 12633B05300N000		 .PIECE, STARTER CLUTCH RLR PUSH 3 Rp49.500
5 09261-10007-000
SUB: 09261B10007N000		 .ROLLER, STARTER CLUTCH 3 Rp12.000
6 DISCONTINUE
SUB: 09440B03007N000		 .SPRING, STARTER CLUTCH 3 -
7 12649-30D00-000 SHIM, STARTER CLUTCH HUB 1 Rp41.500
8 07130-0612A-000
SUB: 07130B0612AN000		 BOLT 3 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
