SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 COVER CYLINDER HEADFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR FILTERFIG.12 CLEANER ASSYFIG.13 MUFFLERFIG.14 OIL PUMPFIG.15 COOLING FANFIG.16 2ND AIRFIG.17 TRANSMISSION (1)FIG.18 TRANSMISSION (2)FIG.19 KICK STARTER

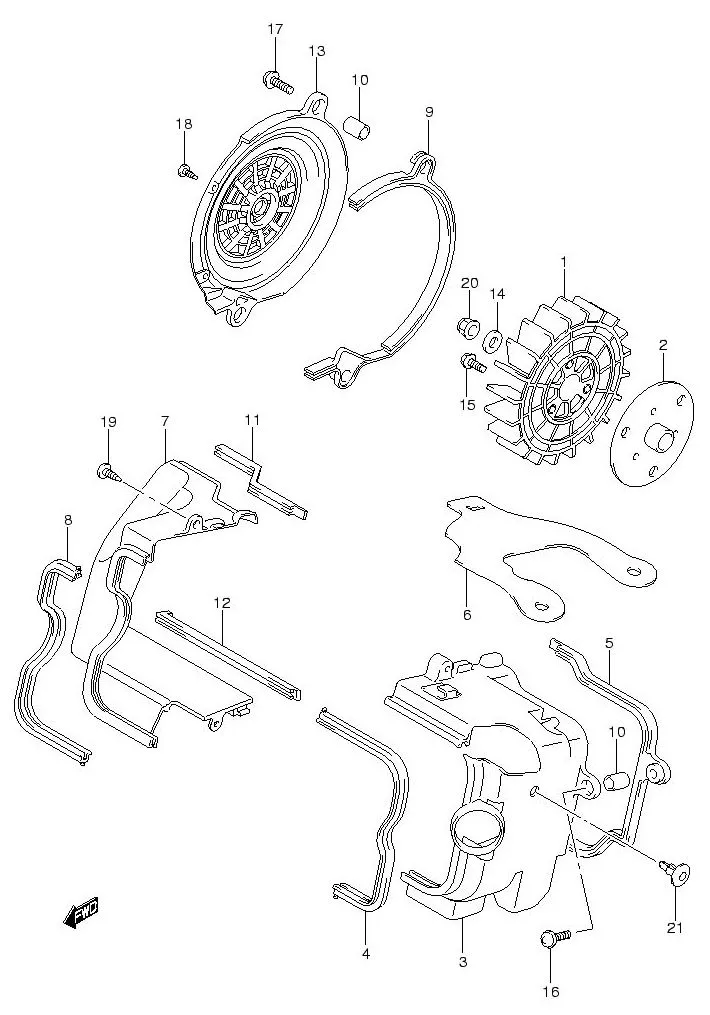

FIG.15 COOLING FAN

FIG.15 COOLING FAN
No No. Part Description Qty Price Per Pcs Remarks
1 17110-46G10-000
SUB: 17110B46G00N000		 FAN, COOLING 1 Rp86.000
2 17116-46G10-000 HOLDER, COOLING FAN 1 Rp278.500
3 DISCONTINUE
SUB: 17121-13H00-000		 COWLING, CYLINDER 1 -
4 17122-13H00-000
SUB: 17122B13H00N000		 MOLD, CYLINDER COWLING 1 Rp12.000
5 17123-46G00-000 DAMPER, CYLINDER COWLING 1 Rp20.000
6 17125-13H00-000 COVER, INTAK PIPE HOLE 1 Rp14.000
7 17131-46G00-000
SUB: 17131B46G00N000		 COWLING, FAN NO.1 1 Rp38.500
8 17132-46G00-000 MOLD, FANK COWLING 1 Rp12.500
9 17133-46G00-000 DAMPER, FAN COWLING NO.1 1 Rp14.000
10 17134-20E00-000 SPACER, FAN COWLING 1 Rp24.500
11 17134-46G00-000 DAMPER, FAN COWLING NO.2 1 Rp14.000
12 17135-46G00-000 DAMPER, FAN COWLING NO.3 1 Rp11.500
13 17141-46G00-000
SUB: 17141B46G00N000		 COWLING NO.2 1 Rp20.500
14 DISCONTINUE
SUB: 09168B10017N000		 GASKET (10.5X22X2.3) 1 -
15 01550B0612BN000 BOLT 3 Rp2.500
16 02112-1625A-000
SUB: 02112B1625BN000		 SCREW 1 Rp3.500
17 02112-1625A-000
SUB: 02112B1625BN000		 SCREW 2 Rp3.500
18 03541-0516A-000
SUB: 03541B0516BN000		 SCREW 2 Rp3.500
19 03541-0620A-000
SUB: 03541B0620BN000		 SCREW 2 Rp15.500
20 08313-2010A-000
SUB: 08313-2010B-000		 NUT 1 Rp20.500
21 09409-08308-000 CLIP 1 Rp12.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
