SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 COVER CYLINDER HEADFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR FILTERFIG.12 CLEANER ASSYFIG.13 MUFFLERFIG.14 OIL PUMPFIG.15 COOLING FANFIG.16 2ND AIRFIG.17 TRANSMISSION (1)FIG.18 TRANSMISSION (2)FIG.19 KICK STARTER

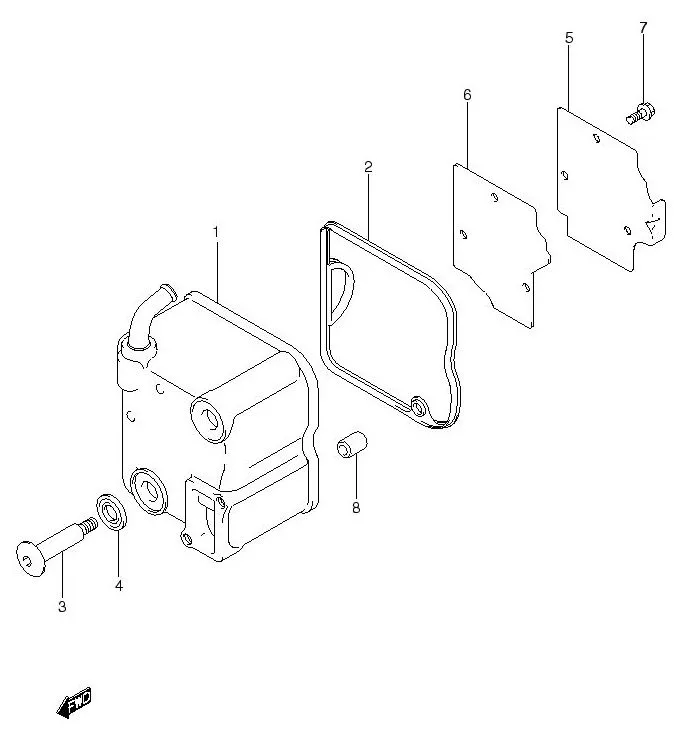

FIG.1 COVER CYLINDER HEAD

FIG.1 COVER CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 11170-13H00-000
SUB: 11170B13H00N000		 COVER, CYLINDER HEAD 1 Rp100.000
2 11173-46G10-000
SUB: 11173B46G00N000		 GASKET, CYLINDER HEAD COVER 1 Rp35.500
3 09106-07011-000
SUB: 09106B07011N000		 BOLT, 7X37 2 Rp8.000
4 11191-27E40-000 WASHER 2 Rp13.000
5 11176-33G50-000
SUB: 11176B33G50N000		 PLATE, BREATHER 1 Rp6.500
6 DISCONTINUE
SUB: 11177B13H10N000		 GASKET, BREATHER PLATE 1 -
7 01550-0510A-000
SUB: 01550B0510BN000		 BOLT 3 Rp3.500
8 09206-08008-000
SUB: 09206B08008N000		 PIN 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
