Preview Engine Transmission Electrical Suspension Body

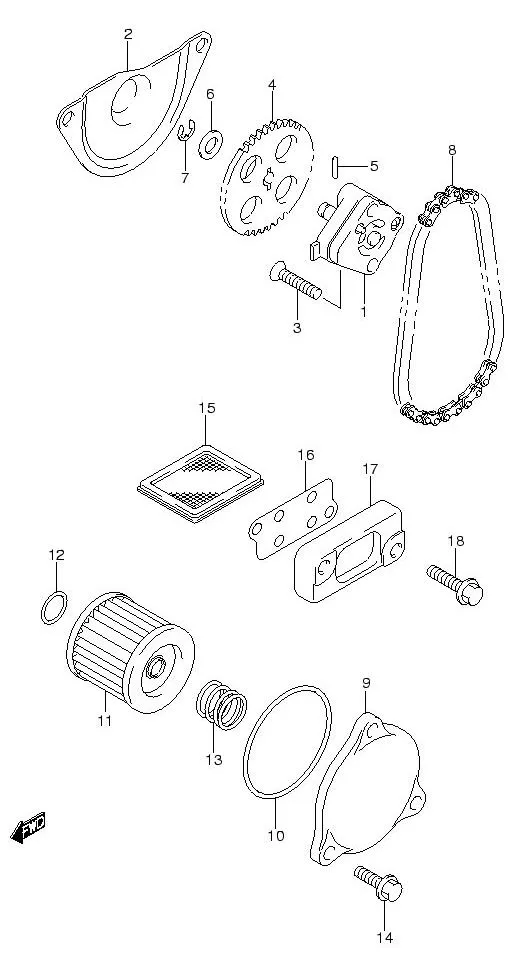

No	No. Part	Description	Qty	Price Per Pcs
1	16400-46G10-000	PUMP ASSY, OIL	1	Rp95.000
2	16422-46G00-000	COVER, OIL PUMP	1	Rp11.000
3	02122-0625A-000 SUB: 02122B0625BN000	SCREW	2	Rp3.500
4	DISCONTINUE SUB: 16331-46G10-000	SPROCKET, OIL PUMP DRIVEN	1	-
5	16421-20E00-000	PIN, OIL PUMP DRIVEN	1	Rp10.500
6	16422-20E00-000	WASHER, OIL PUMP DRIVEN	1	Rp10.000
7	16423-20E00-000	E-RING, OIL PUMP DRIVEN	1	Rp4.000
8	16310-46G20-000 SUB: 16310-46G00-000	CHAIN ASSY, OIL PUMP DRIVE	1	Rp56.500
9	16512-09G00-000 SUB: 16512B09G00N000	CAP, OIL FILTER	1	Rp14.500
10	09280-54001-000 SUB: 09280B54001N000	O RING, D:2.4 ID:12.6	1	Rp3.000
11	16510-45H20-000 SUB: 16510B05240N000	FILTER, ENGINE OIL	1	Rp9.000
12	09280-12009-000 SUB: 09280B13007N000	O RING, D:1.9 ID:12.5	1	Rp17.500
13	DISCONTINUE SUB: 09440B18002N000	SPRING	1	-
14	01547-0616A-000 SUB: 01547B0616BN000	BOLT	3	Rp6.500
15	16520-09402-000 SUB: 16520B09402N000	STRAINER, ENGINE OIL	1	Rp18.000
16	16524-46G00-000 SUB: 16524B46G00N000	GASKET, OIL STRAINER CAP	1	Rp12.500
17	DISCONTINUE SUB: 16523B20E00N000	CAP, OIL STRAINER	1	-
18	01547-0625A-000 SUB: 01547-0625B-000	BOLT	2	Rp6.500
