SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 COVER CYLINDER HEADFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR FILTERFIG.12 CLEANER ASSYFIG.13 MUFFLERFIG.14 OIL PUMPFIG.15 COOLING FANFIG.16 2ND AIRFIG.17 TRANSMISSION (1)FIG.18 TRANSMISSION (2)FIG.19 KICK STARTER

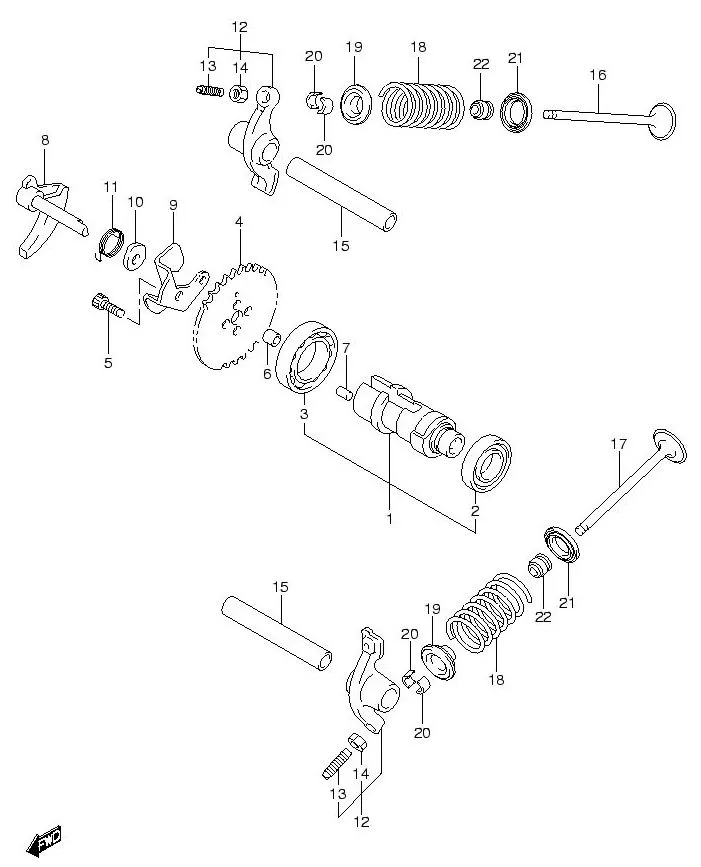

FIG.8 CAMSHAFT/VALVE

FIG.8 CAMSHAFT/VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 12710-13H10-000
SUB: 12710B13H10N000		 CAMSHAFT 1 Rp262.000
2 DISCONTINUE
SUB: 09262-15026-000		 .BEARING, L 1 -
3 08110-69050-000
SUB: 08113B69050N000		 .BEARING, R 1 Rp53.000
4 12741-33G10-000
SUB: 12741B33G10N000		 SPROCKET, CAMSHAFT 1 Rp32.000
5 09106-05028-000
SUB: 09106B05028N000		 BOLT, 5X15 2 Rp6.500
6 09206-08008-000
SUB: 09206B08008N000		 PIN, SPROCKET KNOCK 1 Rp4.000
7 09261-05005-000 PIN 1 Rp3.000
8 12951-33G11-000
SUB: 12951-33G10-000		 CAM, DECOMPRESSION 1 Rp149.000
9 DISCONTINUE
SUB: 12954B33G00N000		 STOPPER, DECOMP CAM 1 -
10 12955-33G00-000
SUB: 12955B33G00N000		 WASHER, DECOMP SHAFT 1 Rp11.500
11 12725-33G00-000 SPRING, DECOMP CAM 1 Rp3.000
12 12840-33G30-000
SUB: 12840-33G10-000		 ARM, VALVE ROCKER 2 Rp110.500
13 12842-49201-000 .SCREW, TAPPET ADJUSTING 2 Rp30.500
14 12843-27A00-000 .NUT, TAPPET ADJUSTING 2 Rp19.000
15 12861-33G10-000
SUB: 12861B33G10N000		 SHAFT, VALVE ROCKER ARM 2 Rp16.500
16 12911-28G20-000
SUB: 12911B28G20N000		 VALVE, INTAKE 1 Rp45.000
17 12912-33G10-000
SUB: 12912B33G10N000		 VALVE, EXHAUST 1 Rp75.500
18 12921-28G40-000
SUB: 12921B28G40N000		 SPRING, VALVE 2 Rp21.000
19 12931-09G00-000
SUB: 12931B09G00N000		 RETAINER, VALVE SPRING 2 Rp13.000
20 12932-09G00-000 COTTER, VALVE 4 Rp4.500
21 12933-09G00-000
SUB: 12933B09G00N000		 SEAT, VALVE SPRING 2 Rp9.000
22 09289-05008-000
SUB: 09289-05008L000		 OIL SEAL 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
