SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 COVER CYLINDER HEADFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR FILTERFIG.12 CLEANER ASSYFIG.13 MUFFLERFIG.14 OIL PUMPFIG.15 COOLING FANFIG.16 2ND AIRFIG.17 TRANSMISSION (1)FIG.18 TRANSMISSION (2)FIG.19 KICK STARTER

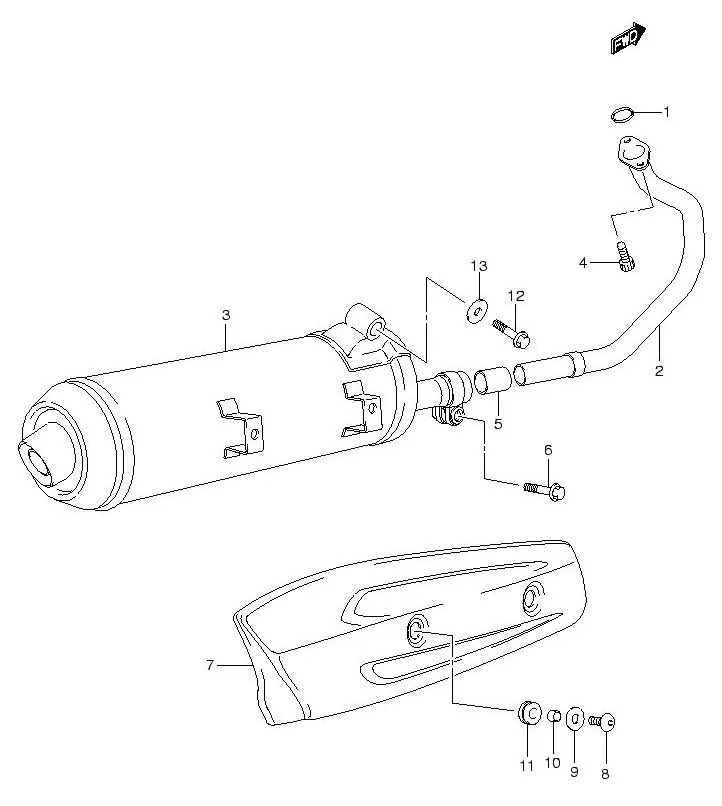

FIG.13 MUFFLER

FIG.13 MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14181-09D10-000
SUB: 14181B46G00N000		 GASKET, EXH PIPE 1 Rp9.000
2 14150-13H00-000 PIPE, EXHAUST 1 Rp159.500
3 DISCONTINUE
SUB: 14310B13H10N000		 BODY, MUFFLER 1 -
4 07130-0820A-000
SUB: 07130B0820AN000		 BOLT 2 Rp4.000
5 14771-08G00-000 CONNECTOR 1 Rp86.500
6 01550-0835B-000 BOLT 1 Rp4.500
7 DISCONTINUE
SUB: 14780B13H00N000		 COVER, MUFFLER 1 -
8 09139-06091-000 SCREW (6X12) 2 Rp8.500
9 09160-06028-000 WASHER (6.5X18X1) 2 Rp3.500
10 09180-06256-000 SPACER (6.5X9X5.7) 2 Rp3.000
11 09320-08051-000
SUB: 09320B08051N000		 CUSHION 2 Rp3.000
12 07130-0845B-000
SUB: 07130B0845BN000		 BOLT 3 Rp5.500
13 08322M0108A-000 WASHER 3 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
