SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 COVER CYLINDER HEADFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 CRANKCASEFIG.5 CRANKCASE COVERFIG.6 CRANKSHAFTFIG.7 STARTER CLUTCHFIG.8 CAMSHAFT/VALVEFIG.9 CAMCHAINFIG.10 CARBURETORFIG.11 AIR FILTERFIG.12 CLEANER ASSYFIG.13 MUFFLERFIG.14 OIL PUMPFIG.15 COOLING FANFIG.16 2ND AIRFIG.17 TRANSMISSION (1)FIG.18 TRANSMISSION (2)FIG.19 KICK STARTER

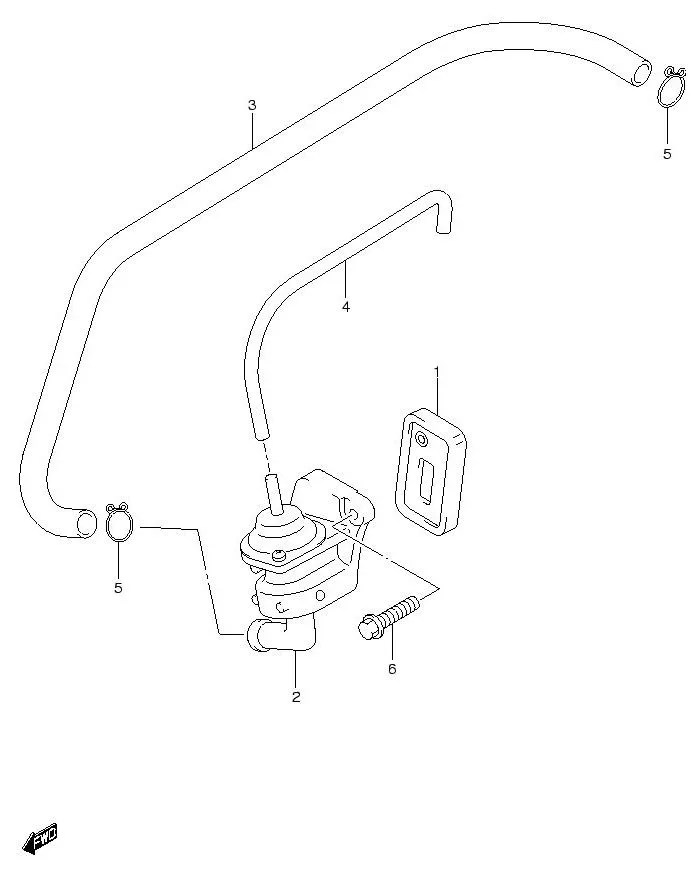

FIG.16 2ND AIR

FIG.16 2ND AIR
No No. Part Description Qty Price Per Pcs Remarks
1 18450-13H10-000
SUB: 18450-13H00-000		 VALVE ASSY, 2ND AIR REED 1 Rp61.000
2 18510-13H11-000
SUB: 18510-13H10-000		 VALVE ASSY, AIR CUT 1 Rp132.000
3 18711-13H00-000
SUB: 18711B13H00N000		 HOSE 2ND AIR VALVE 1 Rp29.000
4 18762-13H00-000
SUB: 18762B13H00N000		 HOSE 2ND AIR VALVE VACUUM 1 Rp6.000
5 09401-15101-000 CLIP 2 Rp3.000
6 01547-0620B-000 BOLT 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
