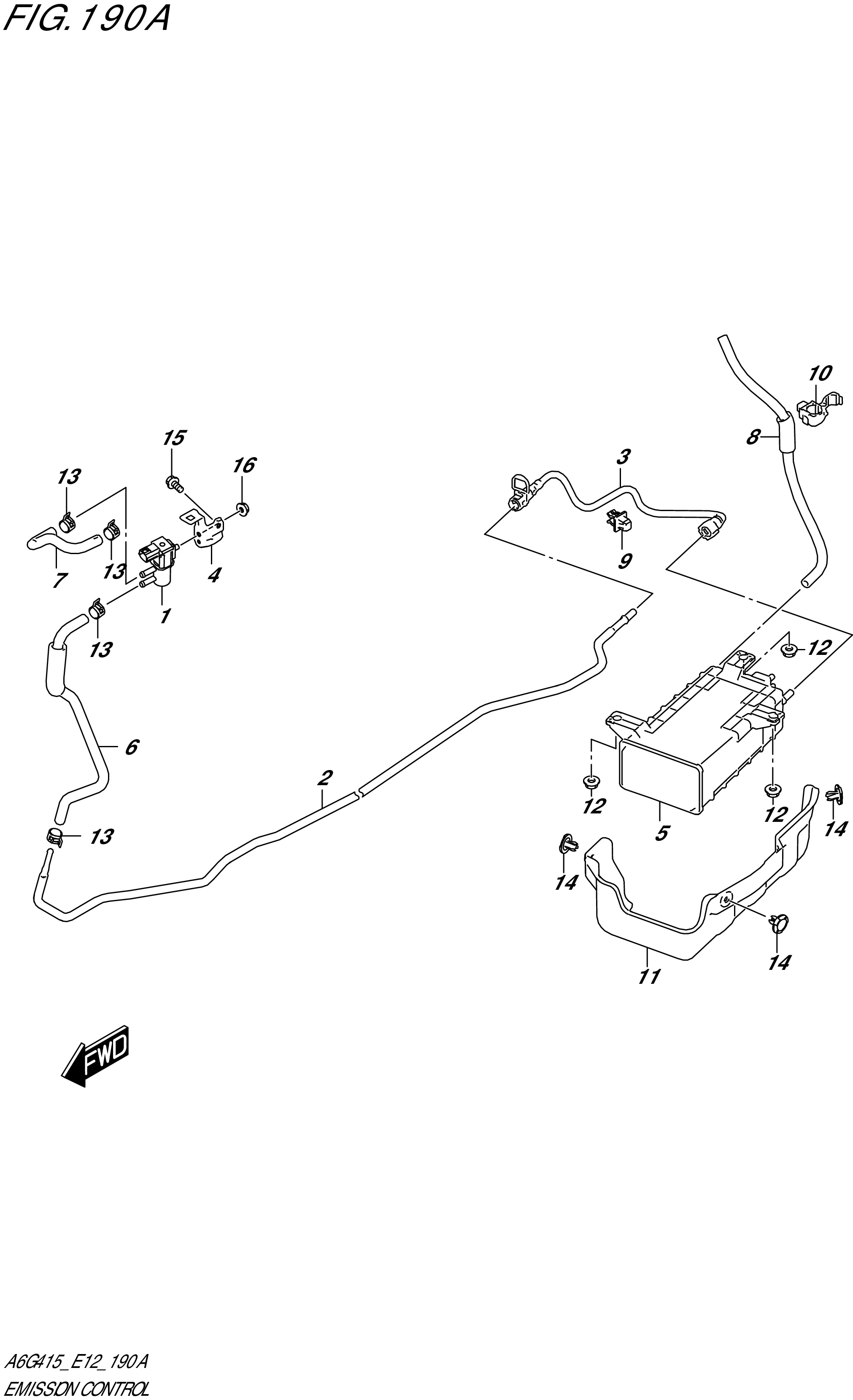

FIG. 190A - EMISSION CONTROL

FIG. 190A - EMISSION CONTROL
No No. Part Description Qty Price Per Pcs Remarks
1 18114-68M00-000 VALVE,CANISTER PURGE 1 Rp1.016.000
2 18351-77R00-000 PIPE,PURGE 1 Rp444.000
3 18352-77R00-000 PIPE,PURGE 1 Rp371.500
4 18417-78R00-000 BRACKET,PURGE VSV 1 Rp144.500
5 18560-77R00-000 CANISTER 1 Rp1.268.000
6 18561-78R00-000 HOSE,PURGE 1 Rp149.000
7 18565-78R00-000 HOSE,PURGE 1 Rp125.000
8 18567-77R00-000 HOSE,CANISTER AIR SUCTION 1 Rp98.500
9 18568-57L00-000 CLAMP,SUCTION PIPE 1 Rp19.500
10 18568-77R00-000 CLAMP,AIR SUCTION HOSE 1 Rp43.000
11 18571-77R00-000 PROTECTOR,CANISTER 1 Rp371.000
12 09159-06076-000 NUT (M6) 3 Rp19.500
13 09401M11419-000 CLIP (ID:11.1) 4 Rp6.000
14 09409-07340-000 CLIP (6.8X11.5) 3 Rp17.500
15 01550M0612A-000 BOLT (6X12) 1 Rp5.000
16 08316-1006A-000 NUT (6X12) 1 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
