New Jimny 3 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 101A - SHORT ENGINE ASSYFIG. 105A - ENGINE GASKET SETFIG. 110A - CYLINDER HEAD COVERFIG. 111A - CYLINDER HEADFIG. 112A - CYLINDERFIG. 115A - OIL PANFIG. 120A - CRANKSHAFTFIG. 122A - CAM SHAFT/VALVEFIG. 124A - CAM CHAINFIG. 128A - ENGINE MOUNTINGFIG. 130A - INTAKE MANIFOLDFIG. 142A - THROTTLE BODYFIG. 150A - AIR CLEANERFIG. 154A - EXHAUST MANIFOLDFIG. 156A - MUFFLERFIG. 160A - FUEL PUMPFIG. 172A - DELIVERY PIPE/FUEL INJECTORFIG. 176A - OIL PUMP FIG. 180A - WATER PUMPFIG. 184A - RADIATOR (5MT)FIG. 184B - RADIATOR (4AT)FIG. 188A - WATER HOSE (5MT)FIG. 188B - WATER HOSE (4AT)FIG. 190A - EMISSION CONTROLFIG. 199A - LABEL

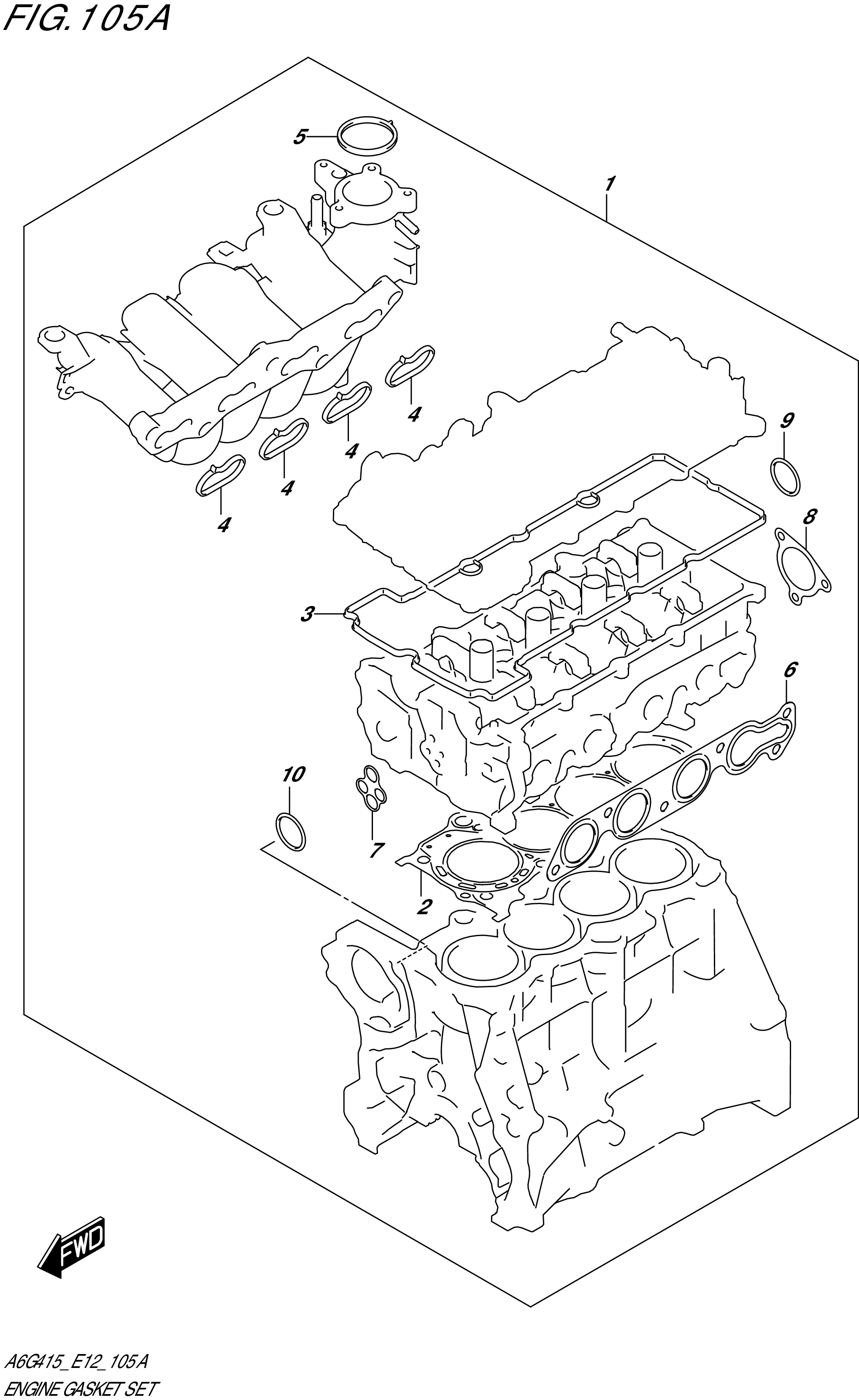

FIG. 105A - ENGINE GASKET SET

FIG. 105A - ENGINE GASKET SET
No No. Part Description Qty Price Per Pcs Remarks
1 11400-52861-000
SUB: 11400-52860-000		 GASKET SET,ENGINE 1 Rp1.477.000
2 11141-78R00-000 .GASKET,CYL HEAD 1 Rp602.500
3 11189-62R10-000 .GASKET,CYLINDER HEAD COVER 1 Rp50.500
4 13118-67LB0-000 .GASKET,INTK MANF 4 Rp10.500
5 13421-67LB0-000 .GASKET,THROTTLE BODY 1 Rp15.000
6 14140-71L00-000 .GASKET,EXH MANF 1 Rp151.500
7 16118-69LB0-000
SUB: 16118B69LB0N000		 .O-RING,OIL CONTROL VALVE 1 Rp9.500
8 17699-52R00-000 .GASKET,THERMO CASE 1 Rp52.000
9 17849-53E00-000 .O RING,WATER INLET PIPE (ID:23.7) 1 Rp24.500
10 09280-28008-000
SUB: 09280B28008N000		 .O-RING (D:3.5,ID:27.7) 2 Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
