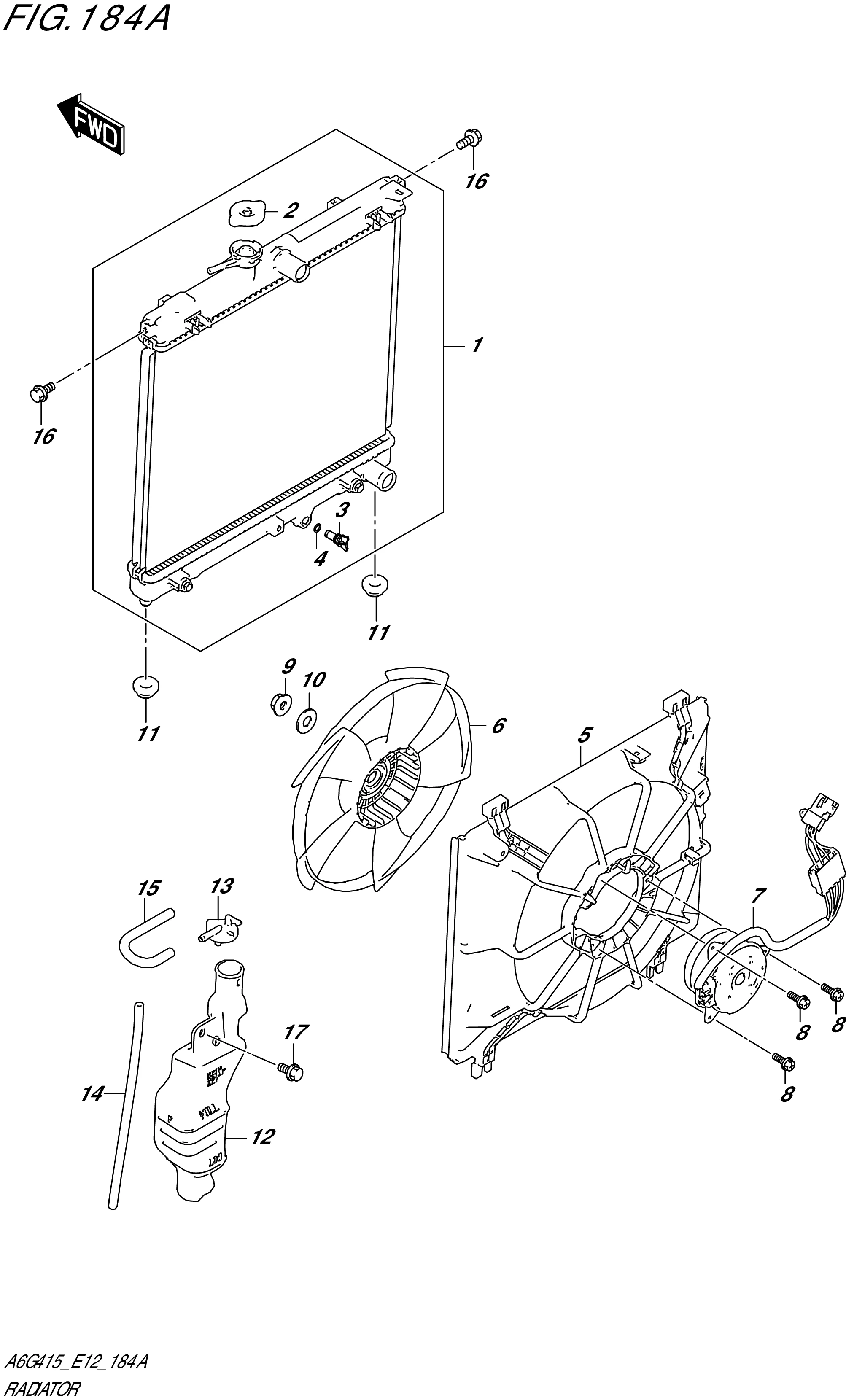

FIG. 184A - RADIATOR (5MT)

FIG. 184A - RADIATOR (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 17700-78R00-000 RADIATOR ASSY 1 Rp6.310.000
2 17920-68HA0-000 .CAP,RADIATOR (1.1) 1 Rp282.000
3 17751-81P00-000 .VALVE,DRAIN 1 Rp57.000
4 17759-81P00-000 .O-RING 1 Rp41.500
5 17760-77R00-000 SHROUD,FAN 1 Rp1.087.000
6 17111-78R00-000 FAN,COOLING 1 Rp585.500
7 17120-78R01-000
SUB: 17120-78R00-000		 MOTOR ASSY,FAN 1 Rp3.877.000
8 17129-68H10-000 SCREW,FAN MOTOR 3 Rp25.000
9 17131-67H00-000 NUT,COOLING FAN 1 Rp31.000
10 17132-64P00-000 WASHER 1 Rp28.500
11 17812-82000-000 BUSHING,RADIATOR SUPPORT 2 Rp27.000
12 17931-77R00-000 TANK,WATER RESERVE 1 Rp578.500
13 17932-76G00-000
SUB: 17932B76G00N000		 CAP,WATER RESERVE TANK 1 Rp5.500
14 09352-70111-600 HOSE (7X11X600) 1 Rp82.500
15 17939-77R00-000 HOSE,RDTR TO RSVR TANK 1 Rp91.500
16 01550-0616A-000
SUB: 01550M0616A-000		 BOLT (6X16) 2 Rp3.500
17 01550-0616A-000
SUB: 01550M0616A-000		 BOLT (6X16) 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
