New Jimny 3 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 101A - SHORT ENGINE ASSYFIG. 105A - ENGINE GASKET SETFIG. 110A - CYLINDER HEAD COVERFIG. 111A - CYLINDER HEADFIG. 112A - CYLINDERFIG. 115A - OIL PANFIG. 120A - CRANKSHAFTFIG. 122A - CAM SHAFT/VALVEFIG. 124A - CAM CHAINFIG. 128A - ENGINE MOUNTINGFIG. 130A - INTAKE MANIFOLDFIG. 142A - THROTTLE BODYFIG. 150A - AIR CLEANERFIG. 154A - EXHAUST MANIFOLDFIG. 156A - MUFFLERFIG. 160A - FUEL PUMPFIG. 172A - DELIVERY PIPE/FUEL INJECTORFIG. 176A - OIL PUMP FIG. 180A - WATER PUMPFIG. 184A - RADIATOR (5MT)FIG. 184B - RADIATOR (4AT)FIG. 188A - WATER HOSE (5MT)FIG. 188B - WATER HOSE (4AT)FIG. 190A - EMISSION CONTROLFIG. 199A - LABEL

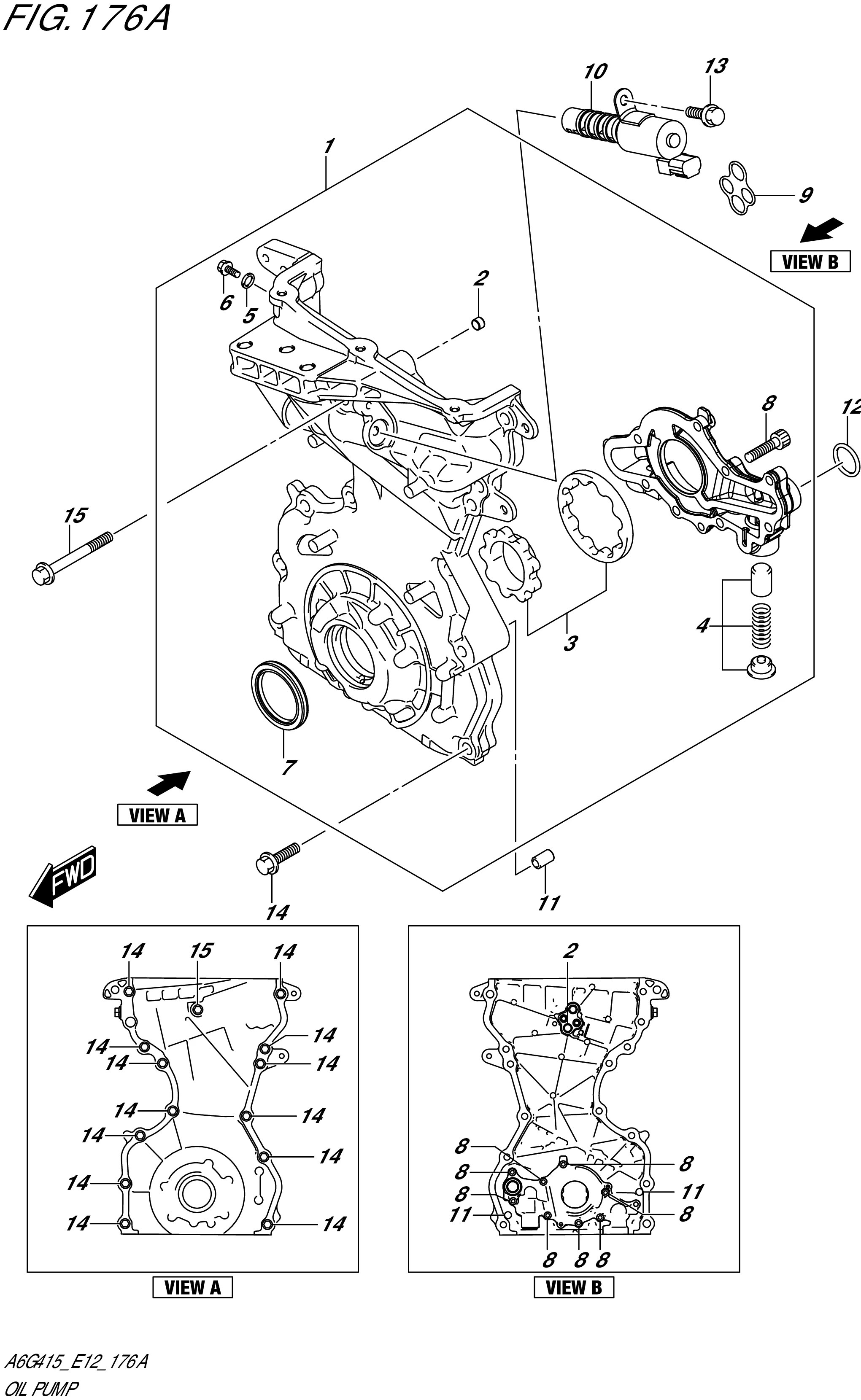

FIG. 176A - OIL PUMP

FIG. 176A - OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 16100-62RA0-000 PUMP ASSY,OIL 1 Rp3.348.000
2 16116-69GE0-000
SUB: 16116B69GE0N000		 .FILTER,OIL GALLERY 1 Rp66.000
3 16130-61P00-000 .ROTOR SET,OIL PUMP 1 Rp756.500
4 16151-51K00-000
SUB: 16151B51K00N000		 .VALVE SET,OIL PUMP RELIEF 1 Rp22.000
5 09168-08016-000
SUB: 09168B08016N000		 .GASKET,8.2X14X1 (8.2X14X1) 1 Rp25.000
6 01550-0816A-000
SUB: 01550B0816AN000		 .BOLT (8X16) 1 Rp6.000
7 09283-41003-000 .SEAL,OIL (41X53X6) 1 Rp94.500
8 07130-0625A-000 .BOLT (6X25) 8 Rp3.500
9 16118-69LB0-000
SUB: 16118B69LB0N000		 O-RING,OIL CONTROL VALVE 1 Rp9.500
10 16550-58MA0-000
SUB: 16550B58MA0N000		 VALVE,OIL CONTROL 1 Rp695.500
11 09206-06005-000
SUB: 09206B06005N000		 PIN (4X6X11) 2 Rp14.500
12 51181-37B00-000
SUB: 51181B37B00N000		 O RING,D:2.4,ID:16.8 (D:2.4,ID:16.8) 1 Rp5.000
13 01550M0612A-000 BOLT (6X12) 1 Rp5.000
14 01550-0830C-000 BOLT (8X30) 13 Rp19.000
15 01550-0885A-000 BOLT (8X85) 1 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
