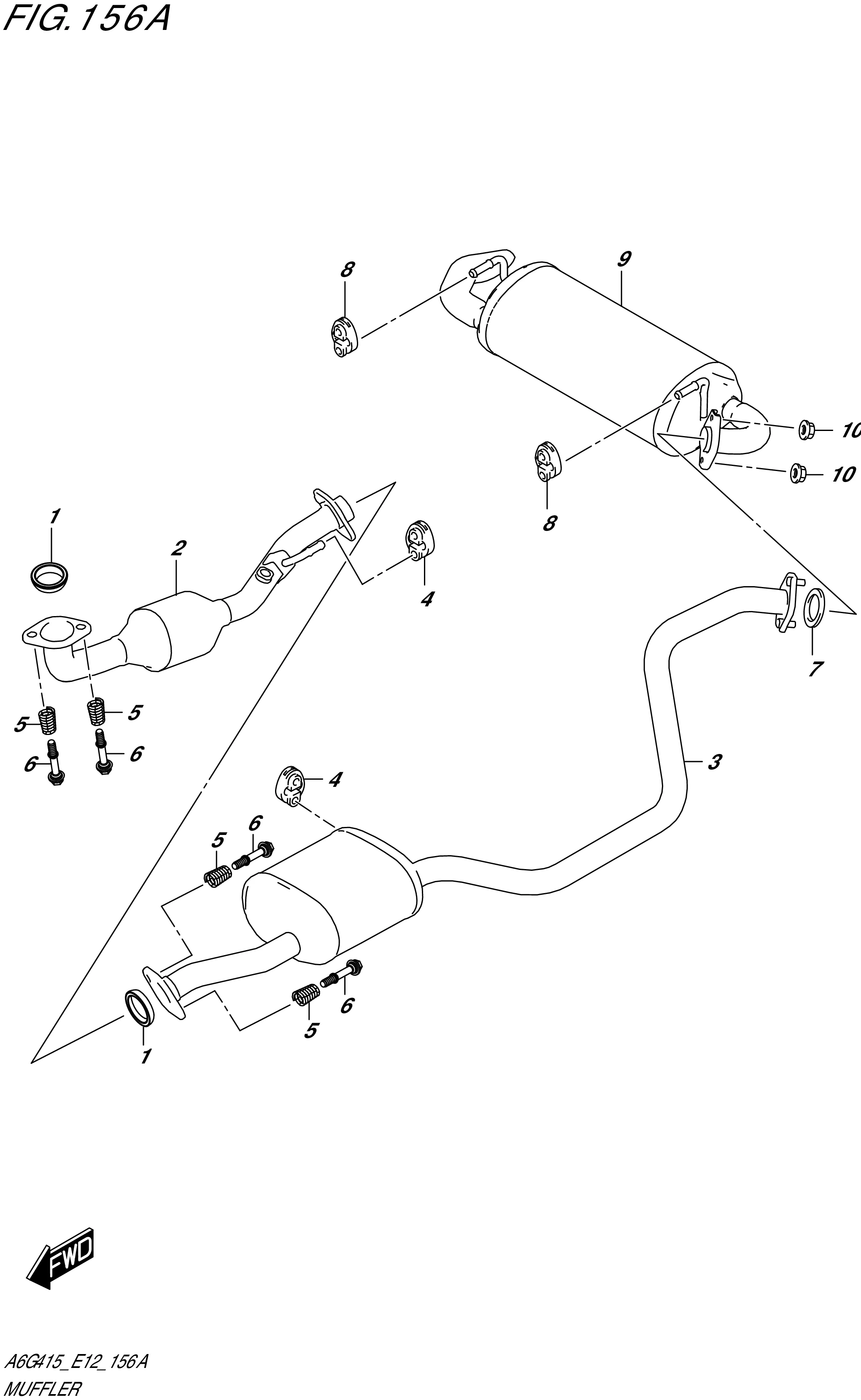

FIG. 156A - MUFFLER

FIG. 156A - MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14183-76A00-000 RING,SEAL EXH PIPE 2 Rp126.500
2 14250-78R00-000 PIPE,EXH NO.1 1 Rp8.078.000
3 14260-78R00-000 PIPE,EXH CENTER 1 Rp3.331.500
4 14281-80JA0-000
SUB: 14281B80JA0N000		 MOUNTING,MUFFLER 2 Rp67.500
5 14492-54M00-000 SPRING, EXH PIPE 4 Rp91.000
6 09119-10073-000
SUB: 09119-10041-000		 BOLT (10X65) 4 Rp75.000
7 14182-60B01-000 GASKET,EXH PIPE 1 Rp61.000
8 14281-84A00-000 MOUNTING,MUFFLER 2 Rp113.500
9 14300-78R00-000 MUFFLER 1 Rp3.657.500
10 09159M10049-000
SUB: 09159-10102-000		 NUT (M10) 2 Rp10.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
