  5. FIG. 172A - DELIVERY PIPE/FUEL INJECTOR

New Jimny 3 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 101A - SHORT ENGINE ASSYFIG. 105A - ENGINE GASKET SETFIG. 110A - CYLINDER HEAD COVERFIG. 111A - CYLINDER HEADFIG. 112A - CYLINDERFIG. 115A - OIL PANFIG. 120A - CRANKSHAFTFIG. 122A - CAM SHAFT/VALVEFIG. 124A - CAM CHAINFIG. 128A - ENGINE MOUNTINGFIG. 130A - INTAKE MANIFOLDFIG. 142A - THROTTLE BODYFIG. 150A - AIR CLEANERFIG. 154A - EXHAUST MANIFOLDFIG. 156A - MUFFLERFIG. 160A - FUEL PUMPFIG. 172A - DELIVERY PIPE/FUEL INJECTORFIG. 176A - OIL PUMP FIG. 180A - WATER PUMPFIG. 184A - RADIATOR (5MT)FIG. 184B - RADIATOR (4AT)FIG. 188A - WATER HOSE (5MT)FIG. 188B - WATER HOSE (4AT)FIG. 190A - EMISSION CONTROLFIG. 199A - LABEL

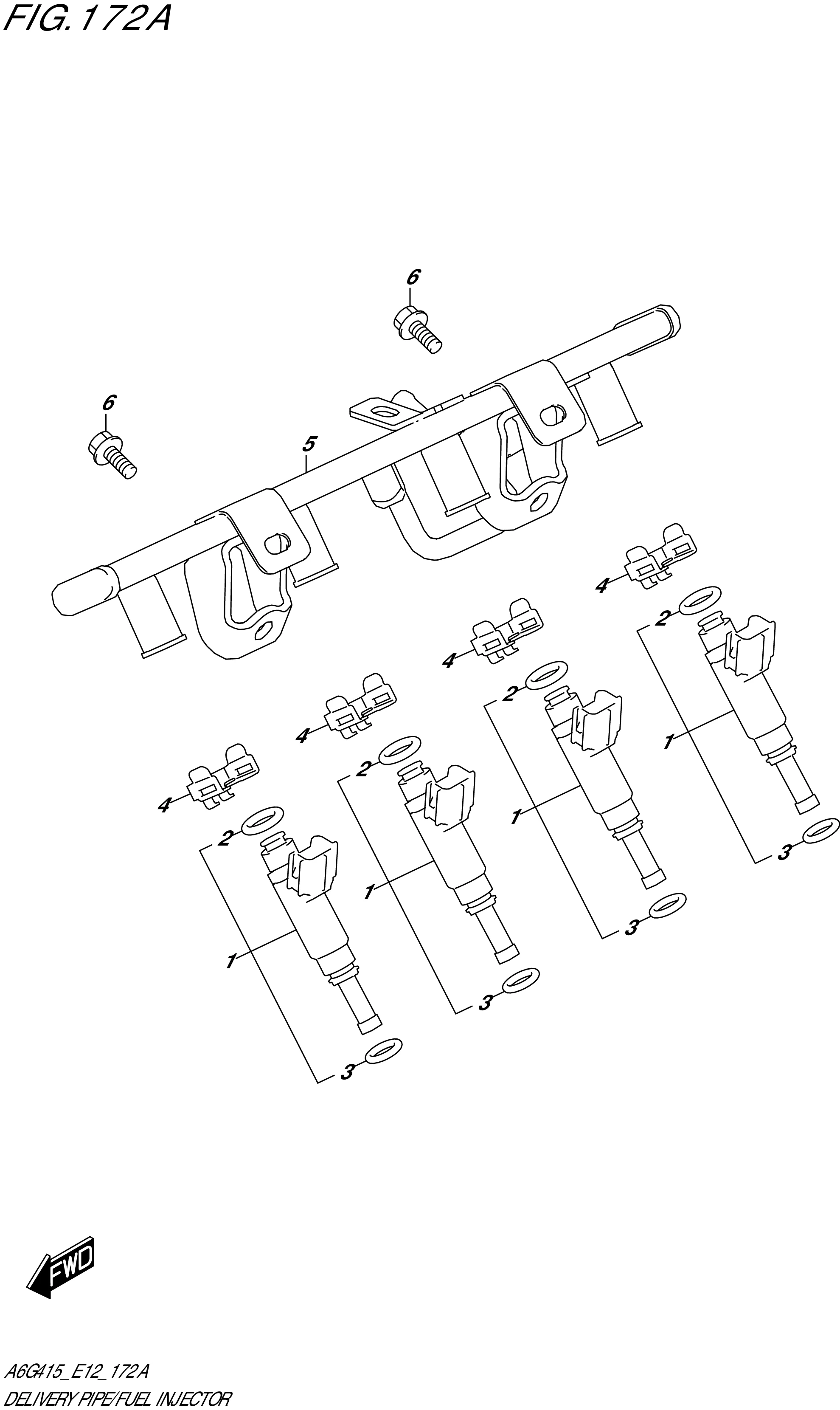

FIG. 172A - DELIVERY PIPE/FUEL INJECTOR

FIG. 172A - DELIVERY PIPE/FUEL INJECTOR
No No. Part Description Qty Price Per Pcs Remarks
1 15710-81P01-000 INJECTOR ASSY,FUEL 4 Rp1.744.500
2 15716M68P01-000
SUB: 15716M68P00-000		 .O-RING 4 Rp31.500
3 15717M68P00-000 .O-RING 4 Rp18.500
4 15715-61P00-000 CLIP,FUEL INJECTOR 4 Rp35.000
5 15730-78R00-000 PIPE,FUEL DELIVERY 1 Rp1.398.000
6 01550-0816A-000
SUB: 01550B0816AN000		 BOLT (8X16) 2 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
