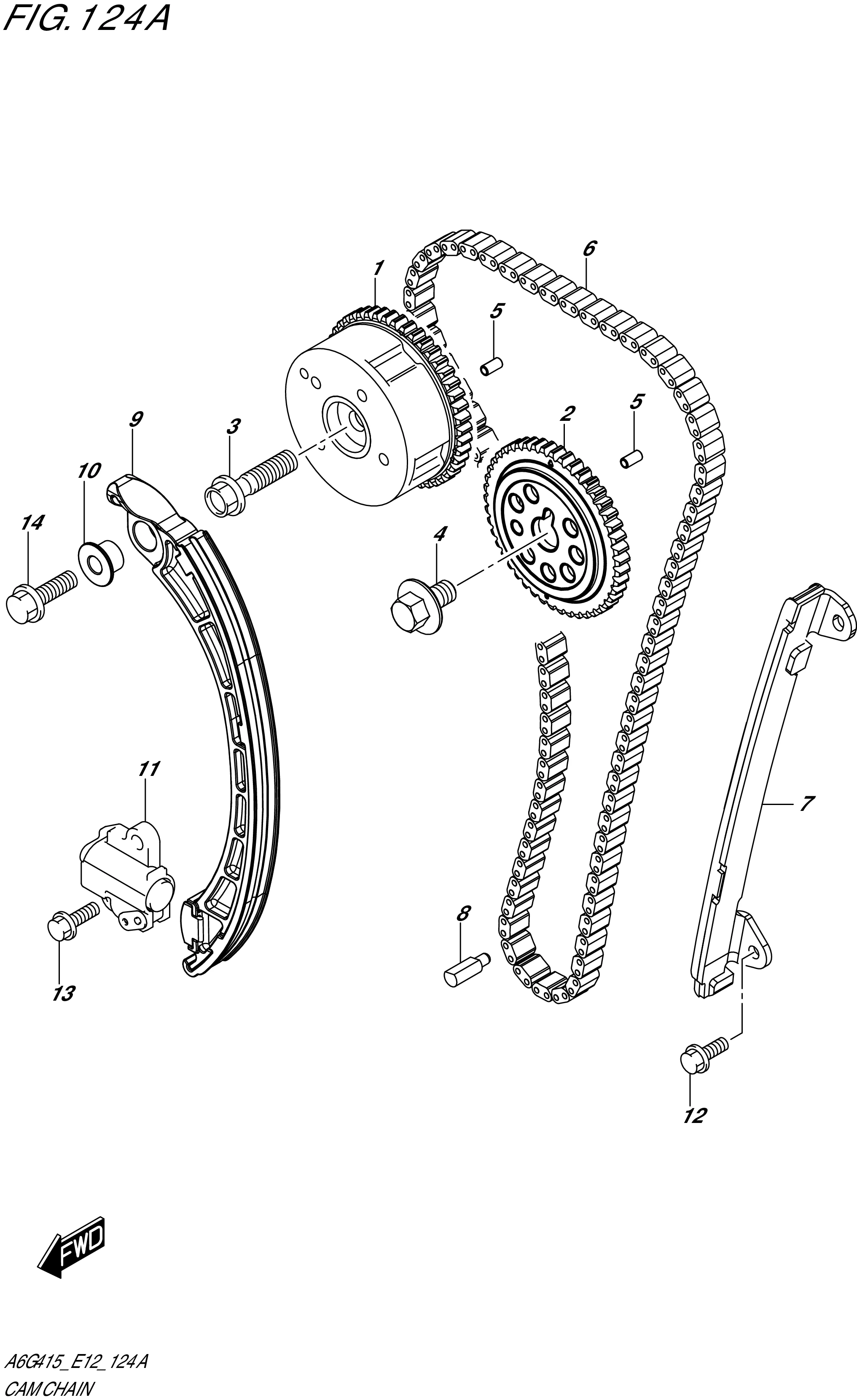

FIG. 124A - CAM CHAIN

FIG. 124A - CAM CHAIN
No No. Part Description Qty Price Per Pcs Remarks
1 12740-73KA0-000 SPROCKET ASSY,CAMSHAFT TIMING 1 Rp3.694.000
2 12742-51K00-000
SUB: 12742B51K00N000		 SPROCKET,CAMSHAFT TIMING EXH 1 Rp119.500
3 12753-69L00-000 BOLT,CAMSHAFT SPROCKET (10X41) 1 Rp33.500
4 12722-51K00-000 BOLT,CAMSHAFT SPROCKET (10X17) 1 Rp40.000
5 09206-05001-000 PIN (3.4X5X10) 2 Rp11.500
6 12761-69L10-000 CHAIN,TIMING 1 Rp1.042.500
7 12771-69L00-000 GUIDE,TIMING CHAIN 1 Rp310.500
8 12781-69G00-000
SUB: 12781B69G00N000		 JET,TIMING CHAIN 1 Rp24.500
9 12811-69L00-000 TENSIONER,TIMING CHAIN 1 Rp673.500
10 12812M73G10-000 SPACER,TIMING CHAIN TENSIONER 1 Rp13.000
11 12831-84MA0-000 ADJUSTER ASSY,TENSIONER 1 Rp946.500
12 01550-0616A-000
SUB: 01550M0616A-000		 BOLT (6X16) 2 Rp3.500
13 01550-0620A-000 BOLT (6X20) 2 Rp3.500
14 01550-0825A-000 BOLT (8X25) 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
