New Jimny 3 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 101A - SHORT ENGINE ASSYFIG. 105A - ENGINE GASKET SETFIG. 110A - CYLINDER HEAD COVERFIG. 111A - CYLINDER HEADFIG. 112A - CYLINDERFIG. 115A - OIL PANFIG. 120A - CRANKSHAFTFIG. 122A - CAM SHAFT/VALVEFIG. 124A - CAM CHAINFIG. 128A - ENGINE MOUNTINGFIG. 130A - INTAKE MANIFOLDFIG. 142A - THROTTLE BODYFIG. 150A - AIR CLEANERFIG. 154A - EXHAUST MANIFOLDFIG. 156A - MUFFLERFIG. 160A - FUEL PUMPFIG. 172A - DELIVERY PIPE/FUEL INJECTORFIG. 176A - OIL PUMP FIG. 180A - WATER PUMPFIG. 184A - RADIATOR (5MT)FIG. 184B - RADIATOR (4AT)FIG. 188A - WATER HOSE (5MT)FIG. 188B - WATER HOSE (4AT)FIG. 190A - EMISSION CONTROLFIG. 199A - LABEL

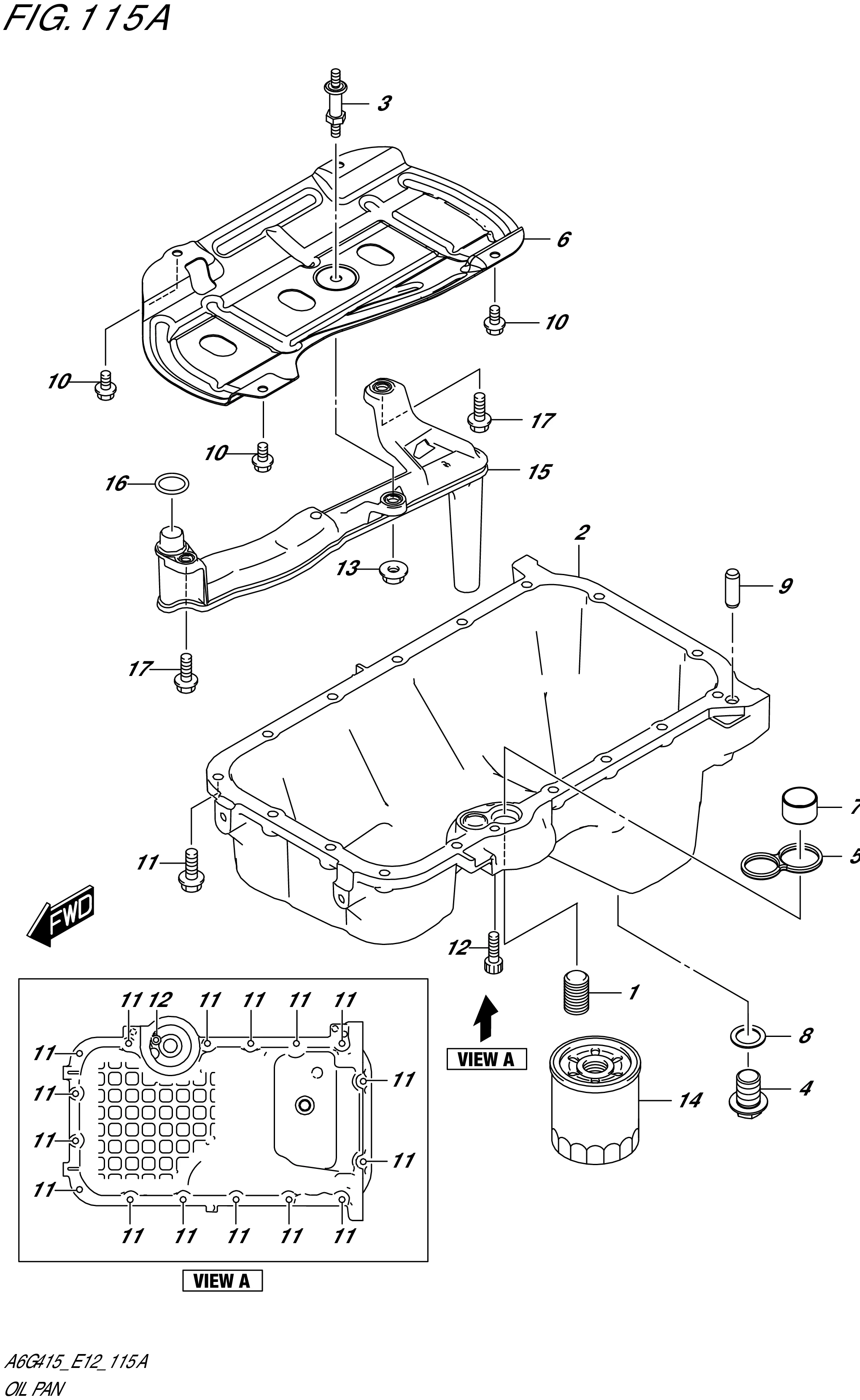

FIG. 115A - OIL PAN

FIG. 115A - OIL PAN
No No. Part Description Qty Price Per Pcs Remarks
1 11241-65H02-000
SUB: 11241-65H01-000		 STAND,OIL FILTER 1 Rp92.000
2 11511-78R10-000
SUB: 11511-78R00-000		 PAN,OIL 1 Rp1.984.500
3 11515-51K03-000 BOLT,OIL PAN BAFFLE STUD 1 Rp54.000
4 11518-63J20-000 PLUG,OIL DRAIN 1 Rp29.500
5 11518-69J00-000 O-RING,OIL PAN 1 Rp46.500
6 11541M73K00-000 PLATE,OIL PAN BAFFLE 1 Rp86.500
7 16114M69J00-000
SUB: 16114B69J00N000		 PIN,OIL PAN DOWEL 1 Rp14.500
8 09168-14015-000 GASKET,14X20X1.5 (14X20X1.5) 1 Rp7.500
9 09202-08004-000
SUB: 09202B08004N000		 PIN (8X23) 1 Rp6.500
10 01550M0612A-000 BOLT (6X12) 3 Rp5.000
11 01550-0625C-000 BOLT (6X25) 16 Rp14.500
12 07130-0625A-000 BOLT (6X25) 1 Rp3.500
13 08316-1006A-000 NUT (6X12) 1 Rp2.000
14 16510-73002-000
SUB: 16510-73002L000		 FILTER ASSY,OIL 1 Rp38.000
15 16520-78R00-000 STRAINER,OIL PUMP 1 Rp452.500
16 51181-37B00-000
SUB: 51181B37B00N000		 O RING,D:2.4,ID:16.8 (D:2.4,ID:16.8) 1 Rp5.000
17 07120-0620A-000 BOLT (6X20) 2 Rp22.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
