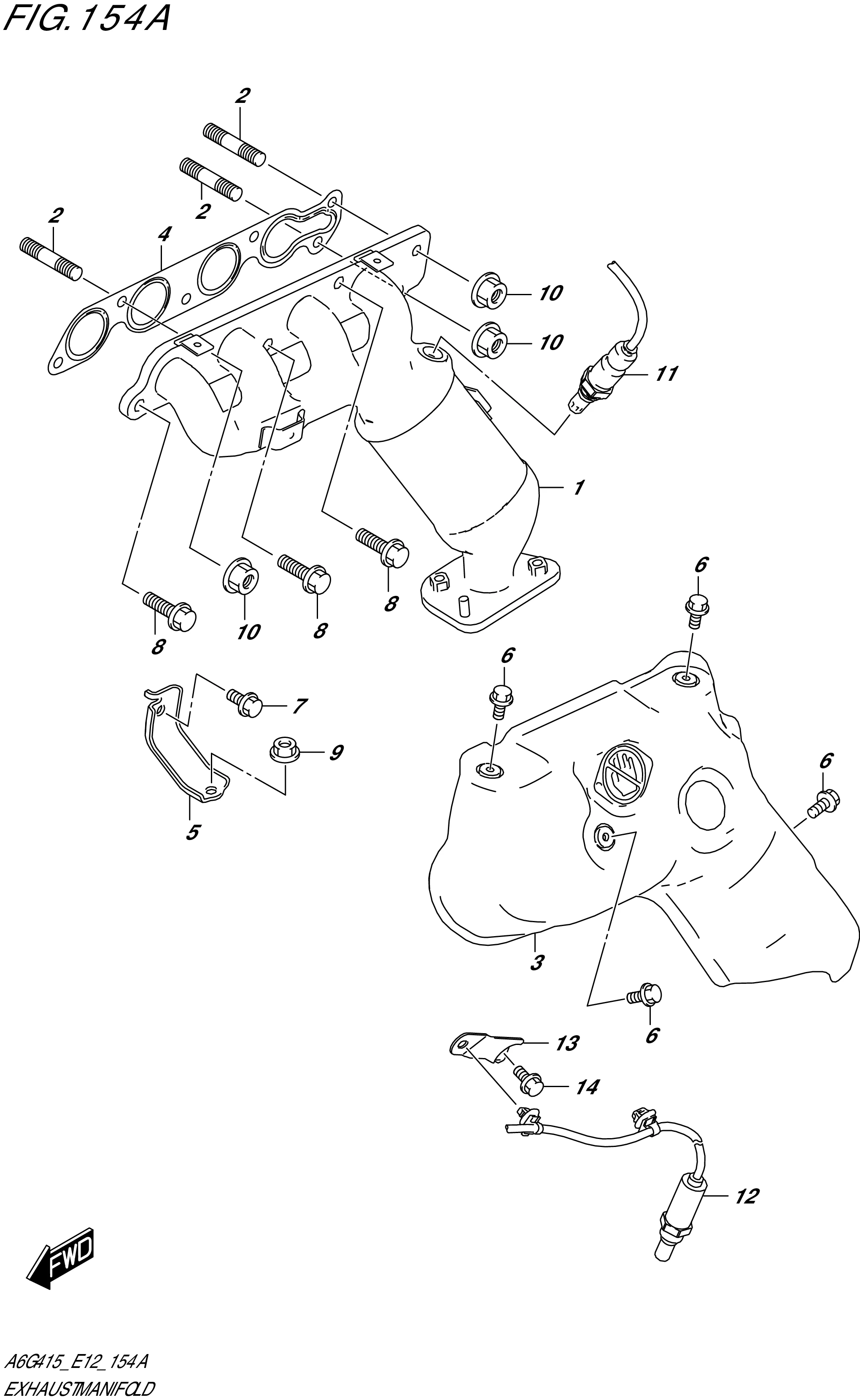

FIG. 154A - EXHAUST MANIFOLD

FIG. 154A - EXHAUST MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 14110-78R00-000 MANIFOLD,EXH 1 Rp17.458.500
2 14118-63J00-000 STUD BOLT,EXH MANF 3 Rp21.500
3 14120-78R00-000 COVER,EXH MANF 1 Rp942.500
4 14140-71L00-000 GASKET,EXH MANF 1 Rp151.500
5 14271-78R00-000 STIFFENER,EXH MANF 1 Rp206.000
6 01550-0612C-000 BOLT (6X12) 4 Rp19.500
7 01550-0820A-000
SUB: 01550B0820AN000		 BOLT (8X20) 1 Rp5.500
8 01550-1020A-000 BOLT (10X20) 3 Rp21.000
9 08316-1008A-000 NUT 1 Rp3.500
10 08316-1010A-000 NUT 3 Rp3.500
11 18213-78R01-000
SUB: 18213-78R00-000		 SENSOR,OXYGEN 1 Rp2.807.000
12 18213-78R10-000 SENSOR,OXYGEN RR 1 Rp2.807.000
13 18214-78R10-000 BRACKET,OXYGEN SNSR 1 Rp74.000
14 01550-0610B-000
SUB: 01550-0610A-000		 BOLT (6X10) 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
