New Jimny 3 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 101A - SHORT ENGINE ASSYFIG. 105A - ENGINE GASKET SETFIG. 110A - CYLINDER HEAD COVERFIG. 111A - CYLINDER HEADFIG. 112A - CYLINDERFIG. 115A - OIL PANFIG. 120A - CRANKSHAFTFIG. 122A - CAM SHAFT/VALVEFIG. 124A - CAM CHAINFIG. 128A - ENGINE MOUNTINGFIG. 130A - INTAKE MANIFOLDFIG. 142A - THROTTLE BODYFIG. 150A - AIR CLEANERFIG. 154A - EXHAUST MANIFOLDFIG. 156A - MUFFLERFIG. 160A - FUEL PUMPFIG. 172A - DELIVERY PIPE/FUEL INJECTORFIG. 176A - OIL PUMP FIG. 180A - WATER PUMPFIG. 184A - RADIATOR (5MT)FIG. 184B - RADIATOR (4AT)FIG. 188A - WATER HOSE (5MT)FIG. 188B - WATER HOSE (4AT)FIG. 190A - EMISSION CONTROLFIG. 199A - LABEL

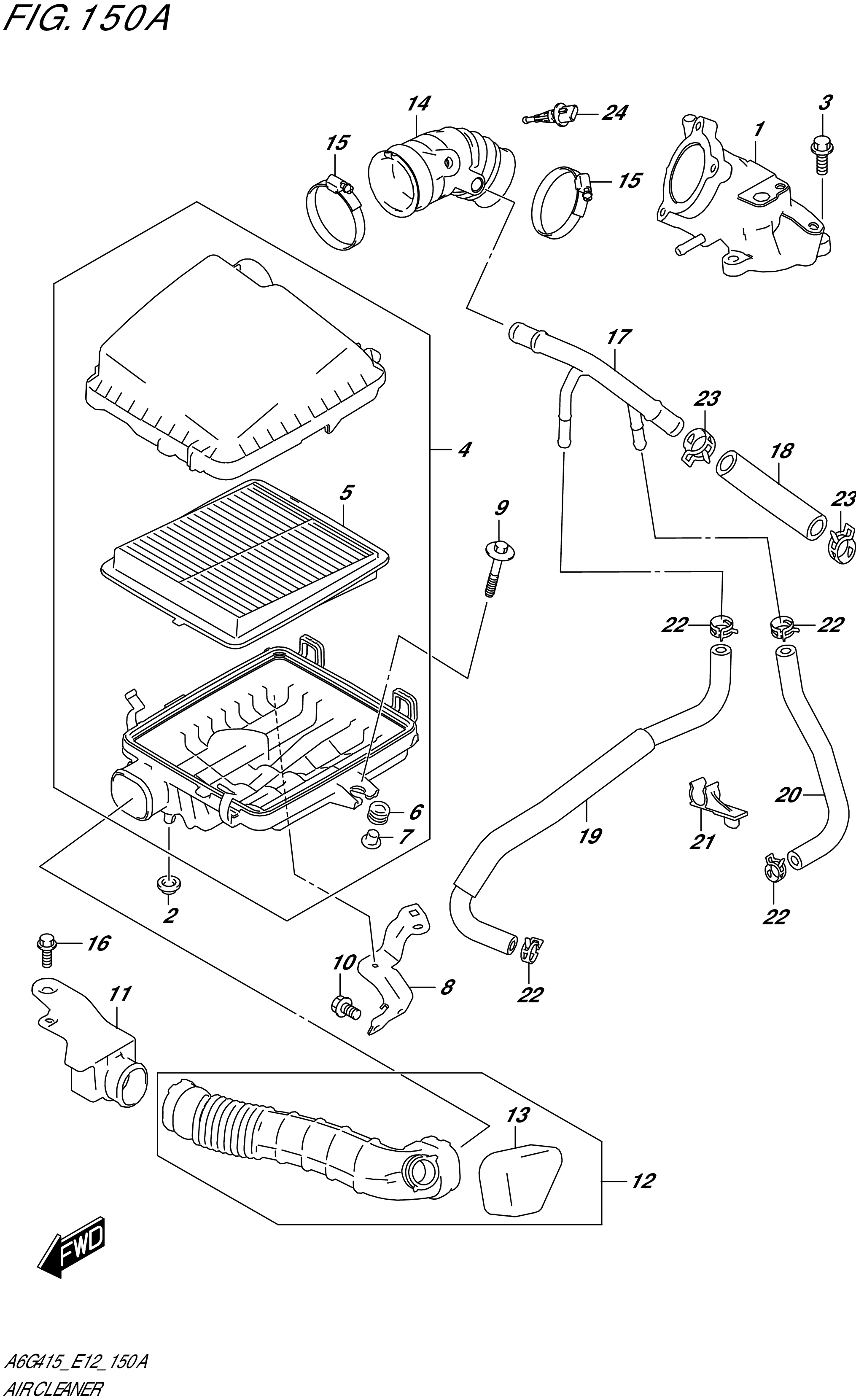

FIG. 150A - AIR CLEANER

FIG. 150A - AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13171-78R00-000 PIPE,THROTTLE OUT 1 Rp1.616.500
2 13723M84MB0-000 GROMMET,AIR CLNR 1 Rp6.500
3 01550-0620A-000 BOLT (6X20) 3 Rp3.500
4 13700-78R20-000
SUB: 13700-78R00-000		 CLEANER ASSY,AIR 1 Rp1.751.000
5 13780-78R00-000 .ELEMENT,AIR CLEANER 1 Rp307.000
6 13878-77R00-000 .GROMMET,AIR CLEANER 2 Rp88.500
7 13877-77R00-000 .COLLAR,AIR CLEANER 2 Rp150.500
8 13811-78R00-000 BRACKET,AIR CLEANER 1 Rp213.000
9 09116-06171-000 BOLT (6X30) 2 Rp20.500
10 01550M0612A-000 BOLT (6X12) 2 Rp5.000
11 13765-78R00-000 PIPE,AIR CLNR SUCT 1 Rp457.000
12 13766-78R00-000 HOSE,AIR CLNR SUCT 1 Rp666.500
13 13761-78K20-000 .RESONATOR,NO.3 1 Rp139.000
14 13881-78R00-000 HOSE,AIR CLNR OUT 1 Rp320.000
15 09402-70503-000 CLAMP (ID:69) 2 Rp91.500
16 02162-0616A-000 SCREW (6X16) 2 Rp3.000
17 11190-78R00-000 PIPE,BREATHER 1 Rp400.500
18 11191-78R00-000 HOSE,BREATHER 1 Rp74.000
19 13491-78R00-000 HOSE,WATER INLET 1 Rp215.000
20 13492-78R00-000 HOSE,WATER OUTLET 1 Rp88.000
21 13495-78R00-000 CLIP,WATER INLET HOSE 1 Rp25.500
22 09401-13431-000 CLIP (ID:13) 4 Rp19.500
23 11199M68K00-000 CLIP (ID:17.8) 2 Rp11.000
24 13650-52G00-000 SENSOR,INLET AIR TEMP 1 Rp762.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
