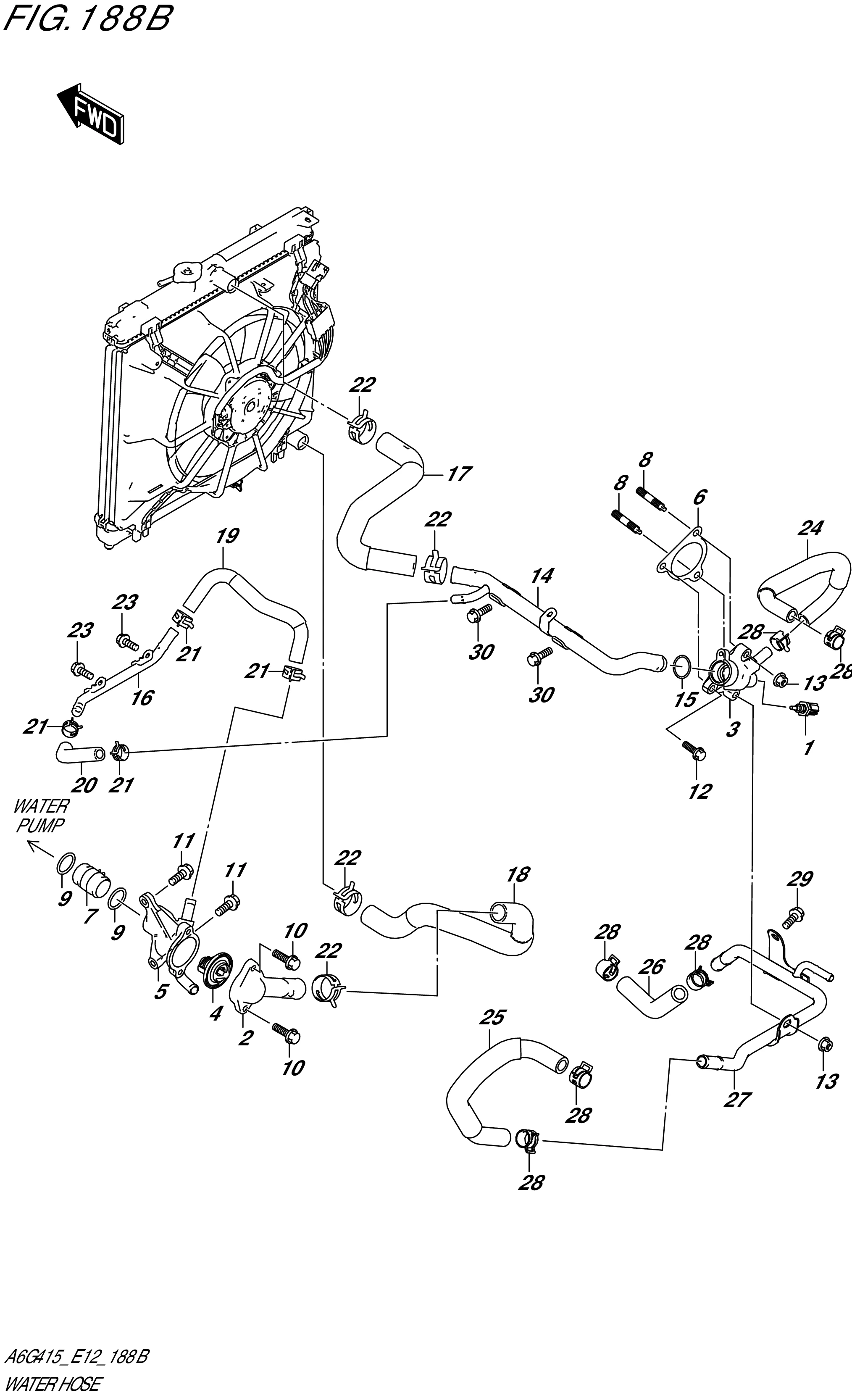

FIG. 188B - WATER HOSE (4AT)

FIG. 188B - WATER HOSE (4AT)
No No. Part Description Qty Price Per Pcs Remarks
1 13650-73H00-000 SENSOR,WATER TEMP 1 Rp368.000
2 17561-78R00-000 CAP,WTR THERMO 1 Rp256.000
3 17570-78R00-000 CAP,WATER OUTLET 1 Rp526.500
4 17670-81AB0-000 THERMOSTAT,WTR 82 DEG 1 Rp312.500
5 17690-78R00-000 CASE,THERMO 1 Rp823.000
6 17699-52R00-000 GASKET,THERMO CASE 1 Rp52.000
7 17831-69G00-000 PIPE,THERMO CASE WATER OUTLET 1 Rp154.500
8 09108-08293-000 BOLT,STUD 2 Rp23.000
9 09280-28008-000
SUB: 09280B28008N000		 O-RING (D:3.5,ID:27.7) 2 Rp2.500
10 01550-0825A-000 BOLT (8X25) 2 Rp3.500
11 01550-0830A-000
SUB: 01550B0830AN000		 BOLT (8X30) 2 Rp4.000
12 01550-0830A-000
SUB: 01550B0830AN000		 BOLT (8X30) 1 Rp4.000
13 08316-1008A-000 NUT 2 Rp3.500
14 17840-78R00-000 PIPE,WATER OUTLET 1 Rp945.500
15 17849-53E00-000 O RING,WATER INLET PIPE (ID:23.7) 1 Rp24.500
16 17850-78R00-000 PIPE,WATER BYPASS 1 Rp331.500
17 17852-78R00-000 HOSE,RDTR INLET 1 Rp471.000
18 17854-78R00-000 HOSE,RDTR OUTLET 1 Rp327.500
19 17856-78R00-000 HOSE,WATER BYPASS NO.1 1 Rp156.500
20 17857-78R00-000 HOSE,WATER BYPASS NO.2 1 Rp82.000
21 09401-18418-000 CLIP 4 Rp26.000
22 09401-30002-000 CLIP 4 Rp42.000
23 01550M0612A-000 BOLT (6X12) 5 Rp5.000
24 17871-78R00-000 HOSE,HTR INLET 1 Rp263.000
25 17872-78R00-000 HOSE,HTR OUTLET NO.1 1 Rp256.000
26 17873-78R00-000 HOSE,HTR OUTLET NO.2 1 Rp74.000
27 17880-78R00-000 PIPE,HEATER 1 Rp544.000
28 09401-18418-000 CLIP 6 Rp26.000
29 01550M0612A-000 BOLT (6X12) 1 Rp5.000
30 01550-0616A-000
SUB: 01550M0616A-000		 BOLT (6X16) 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
