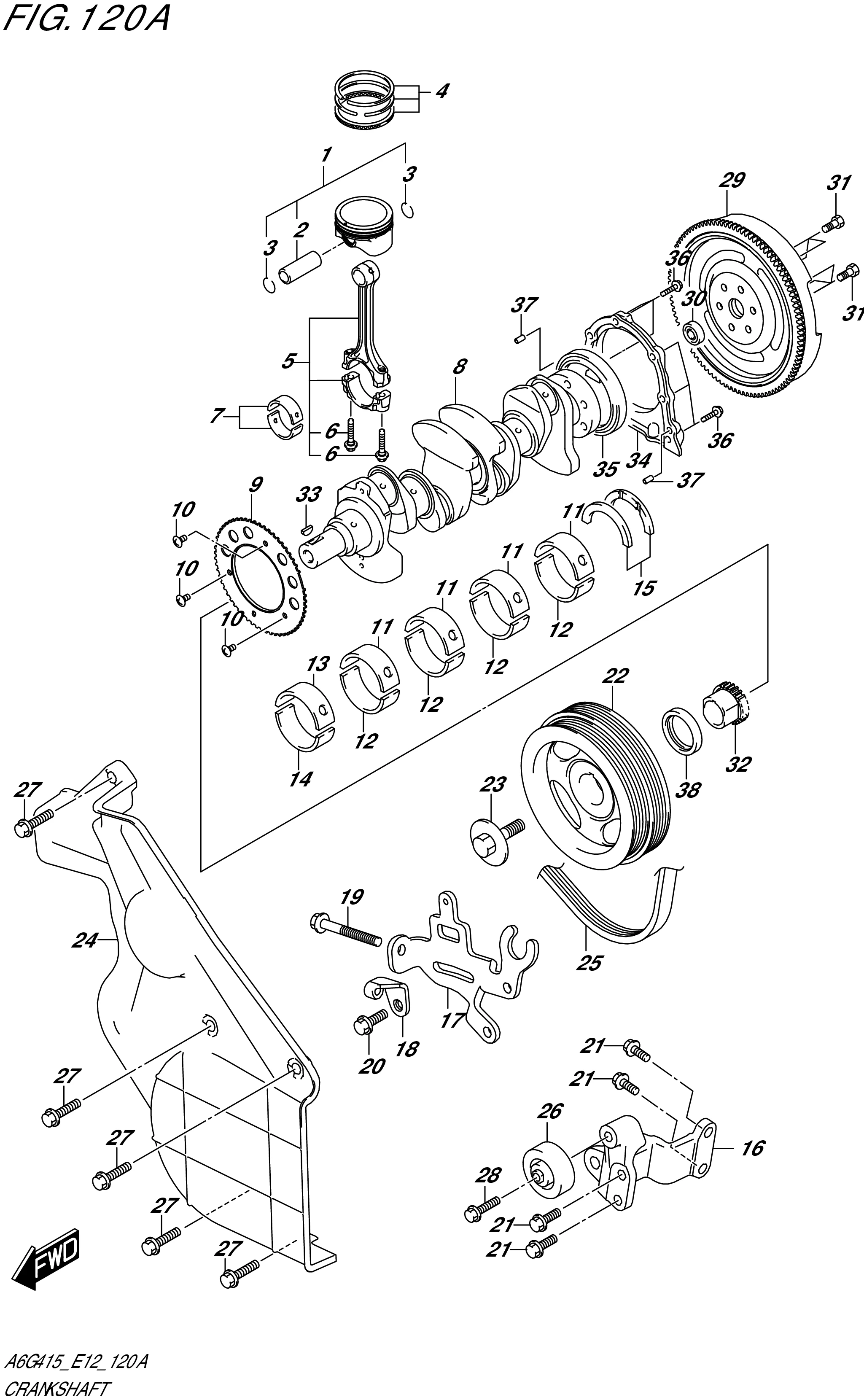

FIG. 120A - CRANKSHAFT

FIG. 120A - CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 12100-78860-000 PISTON SET 4 Rp709.000
2 12151-71L00-0C0
SUB: 12151B71L00N0C0		 .PIN,PISTON 4 Rp49.000
3 09381-18002-000
SUB: 09381B18002N000		 .CIRCLIP (OD:20.5) 8 Rp2.500
4 12140-78R00-000 RING SET,PISTON 4 Rp557.000
5 12160-78R00-000 CONNROD ASSY 4 Rp1.118.500
6 12163-69J00-000 .BOLT,CONNROD 8 Rp25.500
7-6 12100-51810-025 BEARING SET,CONNROD RED (US:0.25,T:1.625) 4 Rp192.000
7-5 12100-51810-0E0 BEARING SET,CONNROD (STD,T:1.5) 4 Rp149.500
7-4 12100-51810-0D0 BEARING SET,CONNROD (STD,T:1.5) 4 Rp149.500
7-3 12100-51810-0C0 BEARING SET,CONNROD 4 Rp200.000
7-2 12100-51810-0B0 BEARING SET,CONNROD 4 Rp149.500
7-1 12100-51810-0A0 BEARING SET,CONNROD 4 Rp195.500
8 12221-78R00-000 CRANKSHAFT 1 Rp9.457.000
9 12222-78R00-000 PLATE,SENSOR 1 Rp104.000
10 12223-69G00-000 SCREW,SENSOR PLATE (6X10) 3 Rp13.500
11-7 12341-61P00-0BA BEARING,CRANK UPR RED/PURPLE (US:0.25,T:2.125) 4 Rp114.000
11-10 12341-61P00-0EA BEARING,CRANK UPR RED/BLACK (US:0.25,T:2.125) 4 Rp114.000
11-9 12341-61P00-0DA BEARING,CRANK UPR RED/GREEN (US:0.25,T:2.125) 4 Rp114.000
11-8 12341-61P00-0CA BEARING,CRANK UPR RED/BROWN (US:0.25,T:2.125) 4 Rp114.000
11-6 12341-61P00-0AA BEARING,CRANK UPR RED/PINK (US:0.25,T:2.125) 4 Rp109.000
11-4 12341-61P00-0D0 BEARING,CRANK UPR GREEN (STD,T:2) 4 Rp109.000
11-3 12341-61P00-0C0 BEARING,CRANK UPR BROWN (STD,T:2) 4 Rp114.000
11-2 12341-61P00-0B0 BEARING,CRANK UPR PURPLE (STD,T:2) 4 Rp109.000
11-1 12341-61P00-0A0 BEARING,CRANK UPR PINK (STD,T:2) 4 Rp114.000
11-5 12341-61P00-0E0 BEARING,CRANK UPR BLACK (STD,T:2) 4 Rp114.000
12-6 12345-71L00-0AA BEARING,CRANK LWR RED/PINK (US:0.25,T:2.125) 4 Rp109.000
12-10 12345-71L00-0EA BEARING,CRANK LWR RED/BLACK (US:0.25,T:2.125) 4 Rp114.000
12-9 12345-71L00-0DA BEARING,CRANK LWR RED/GREEN (US:0.25,T:2.125) 4 Rp114.000
12-8 12345-71L00-0CA BEARING,CRANK LWR RED/BROWN (US:0.25,T:2.125) 4 Rp114.000
12-7 12345-71L00-0BA BEARING,CRANK LWR RED/PURPLE (US:0.25,T:2.125) 4 Rp114.000
12-5 12345-71L00-0E0 BEARING,CRANK LWR BLACK (STD,T:2) 4 Rp114.000
12-4 12345-71L00-0D0 BEARING,CRANK LWR GREEN (STD,T:2) 4 Rp109.000
12-3 12345-71L00-0C0 BEARING,CRANK LWR BROWN (STD,T:2) 4 Rp109.000
12-2 12345-71L00-0B0 BEARING,CRANK LWR PURPLE (STD,T:2) 4 Rp109.000
12-1 12345-71L00-0A0 BEARING,CRANK LWR PINK (STD,T:2) 4 Rp114.000
13-10 12341-85K10-0ZA BEARING,CRANK UPR RED/BROWN (US:0.25,T:2.125) 1 Rp144.000
13-9 12341-85K10-0YA BEARING,CRANK UPR RED/PURPLE (US:0.25,T:2.125) 1 Rp144.000
13-8 12341-85K10-0CA BEARING,CRANK UPR RED (US:0.25,T:2.125) 1 Rp139.000
13-7 12341-85K10-0BA BEARING,CRANK UPR RED/BLACK (US:0.25,T:2.125) 1 Rp144.000
13-6 12341-85K10-0AA BEARING,CRANK UPR RED/GREEN (US:0.25,T:2.125) 1 Rp133.000
13-4 12341-85K10-0Y0 BEARING,CRANK UPR PURPLE (STD,T:2.0) 1 Rp140.500
13-5 12341-85K10-0Z0 BEARING,CRANK UPR BROWN (STD,T:2.0) 1 Rp140.500
13-1 12341-85K10-0A0 BEARING,CRANK UPR GREEN (STD,T:2.0) 1 Rp129.000
13-3 12341-85K10-0C0 BEARING,CRANK UPR NON (STD,T:2.0) 1 Rp136.500
13-2 12341-85K10-0B0 BEARING,CRANK UPR BLACK (STD,T:2.0) 1 Rp142.500
14-8 12345-85K00-0CA BEARING,CRANK LWR RED (US:0.25,T:2.125) 1 Rp73.000
14-10 12345-85K00-0ZA BEARING,CRANK LWR RED/BROWN (US:0.25,T:2.125) 1 Rp79.000
14-9 12345-85K00-0YA BEARING,CRANK LWR RED/PURPLE (US:0.25,T:2.125) 1 Rp79.000
14-7 12345-85K00-0BA BEARING,CRANK LWR RED/BLACK (US:0.25,T:2.125) 1 Rp79.000
14-6 12345-85K00-0AA BEARING,CRANK LWR RED/GREEN (US:0.25,T:2.125) 1 Rp73.000
14-5 12345-85K00-0Z0 BEARING,CRANK LWR BROWN (STD,T:2.0) 1 Rp77.000
14-4 12345-85K00-0Y0 BEARING,CRANK LWR PURPLE (STD,T:2.0) 1 Rp77.000
14-3 12345-85K00-0C0 BEARING,CRANK LWR NON (STD,T:2.0) 1 Rp71.500
14-2 12345-85K00-0B0 BEARING,CRANK LWR BLACK (STD,T:2.0) 1 Rp74.500
14-1 12345-85K00-0A0 BEARING,CRANK LWR GREEN (STD,T:2.0) 1 Rp71.500
15-1 12300-60840-000 BEARING SET,CRANK THRUST (STD,T:2.5) 1 Rp120.000
15-2 12300-60840-012 BEARING SET,CRANK THRUST (US:0.125,T:2.563) 1 Rp147.000
16 11551-78R00-000 BRACKET,GENERATOR 1 Rp753.500
17 11561-78R00-000 ARM,GEN BELT ADJ 1 Rp198.500
18 11562-68M10-000 ADJUSTER,GEN BELT 1 Rp91.500
19 11563-68M00-000 BOLT,GENERATOR ADJUSTING 1 Rp31.500
20 17545-50M00-000 BOLT,BELT TENSIONER 1 Rp22.500
21 01550-0825A-000 BOLT (8X25) 1 Rp3.500
22 12610-81P00-000 PULLEY,CRANKSHAFT 1 Rp1.230.500
23 12619-69G10-000 BOLT,CRANK PULLEY (12X37) 1 Rp102.500
24 17520-78R00-000 COVER,WP BELT 1 Rp297.000
25 17521-78R00-000 BELT,WATER PUMP 1 Rp155.000
26 17530-50M30-000
SUB: 17530-50M00-000		 PULLEY,BELT TENSIONER 1 Rp472.000
27 DISCONTINUE
SUB: 01550B0625AN000		 BOLT (6X25) 5 -
28 01550-1040B-000
SUB: 01550B1040BN000		 BOLT 1 Rp6.500
29 12620-78R00-000 FLYWHEEL 1 Rp3.182.000
30 12623-61J00-000 BEARING,INPUT SHAFT 1 Rp39.500
31 09103-10440-000 BOLT (10X18.5) 6 Rp33.000
32 12631-54G11-000 SPROCKET,CRANKSHAFT TIMING 1 Rp439.500
33 08341M31059-000 KEY 1 Rp4.500
34 11341M51K00-000 HOUSING,OIL SEAL 1 Rp73.000
35 09283-83003-000 OIL SEAL (83X97X8) 1 Rp254.000
36 09103-06282-000 BOLT (6X25) 6 Rp16.500
37 04221-06129-000 PIN (6X12) 2 Rp12.500
38 09283-41003-000 SEAL,OIL (41X53X6) 1 Rp94.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
