New Jimny 3 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 101A - SHORT ENGINE ASSYFIG. 105A - ENGINE GASKET SETFIG. 110A - CYLINDER HEAD COVERFIG. 111A - CYLINDER HEADFIG. 112A - CYLINDERFIG. 115A - OIL PANFIG. 120A - CRANKSHAFTFIG. 122A - CAM SHAFT/VALVEFIG. 124A - CAM CHAINFIG. 128A - ENGINE MOUNTINGFIG. 130A - INTAKE MANIFOLDFIG. 142A - THROTTLE BODYFIG. 150A - AIR CLEANERFIG. 154A - EXHAUST MANIFOLDFIG. 156A - MUFFLERFIG. 160A - FUEL PUMPFIG. 172A - DELIVERY PIPE/FUEL INJECTORFIG. 176A - OIL PUMP FIG. 180A - WATER PUMPFIG. 184A - RADIATOR (5MT)FIG. 184B - RADIATOR (4AT)FIG. 188A - WATER HOSE (5MT)FIG. 188B - WATER HOSE (4AT)FIG. 190A - EMISSION CONTROLFIG. 199A - LABEL

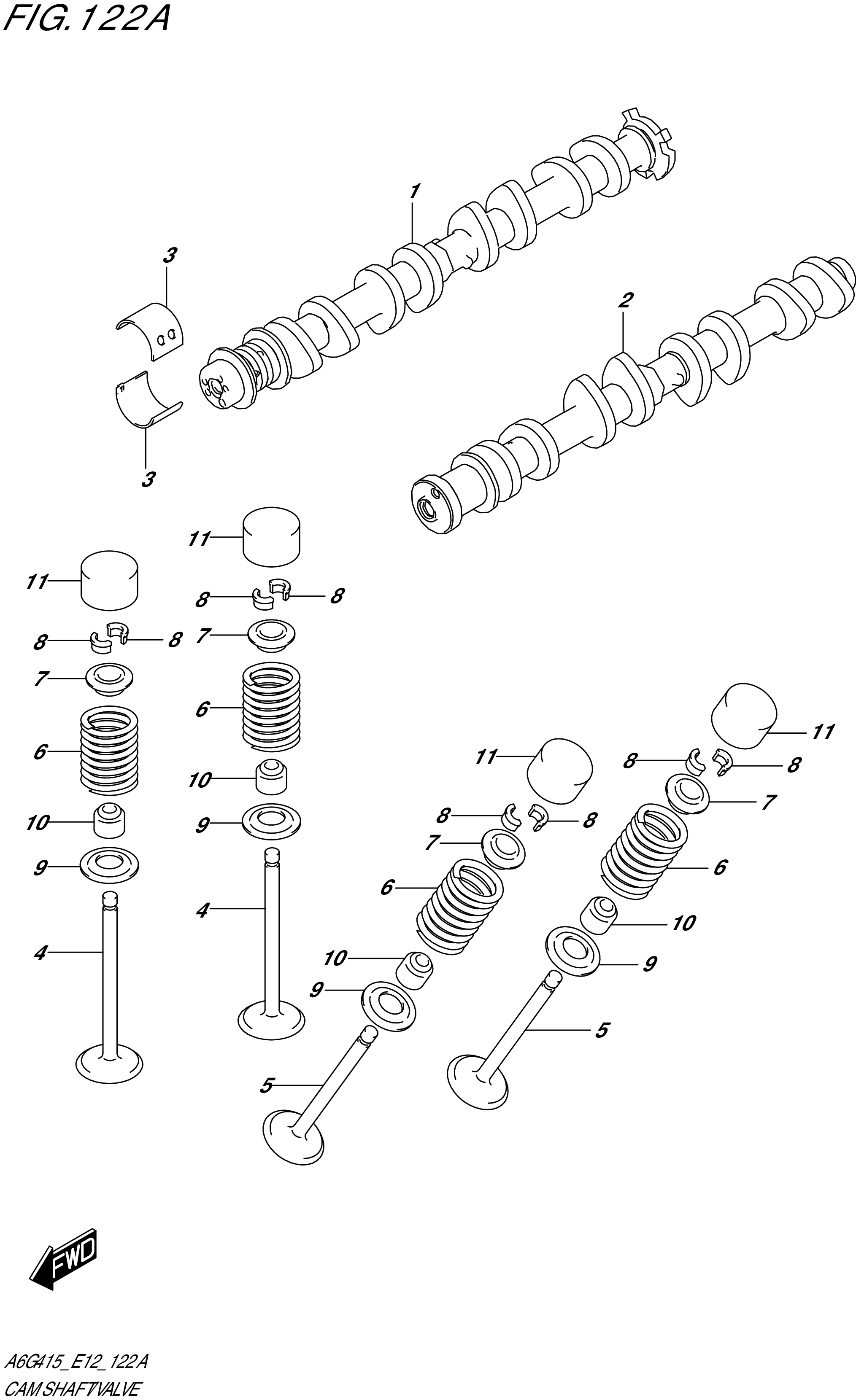

FIG. 122A - CAM SHAFT/VALVE

FIG. 122A - CAM SHAFT/VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 12710-78R00-000 CAMSHAFT,INTK 1 Rp4.278.500
2 12721-78R00-000 CAMSHAFT,EXH 1 Rp3.844.000
3 12737-69LA0-000 BEARING,CAMSHAFT (STD,T:1.5) 2 Rp289.000
4 12911-77M00-000
SUB: 12911B77M00N000		 VALVE,INTAKE 8 Rp60.000
5 12915-77M00-000
SUB: 12915B77M00N000		 VALVE,EXHAUST 8 Rp60.000
6 12921-69L00-000 SPRING,VALVE 16 Rp49.500
7 12931-69L00-000 RETAINER,VALVE SPRING 16 Rp42.000
8 12932-24F00-000 COTTER,VALVE 32 Rp15.000
9 12933M51E00-000 SEAT,VALVE SPRING 16 Rp3.500
10 12934-69L00-000 SEAL,VALVE STEM 16 Rp46.000
11-29 12891-57R00-366 TAPPET (T:3.66) 16 Rp249.000
11-28 12891-57R00-364 TAPPET (T:3.64) 16 Rp249.000
11-27 12891-57R00-362 TAPPET (T:3.62) 16 Rp249.000
11-26 12891-57R00-360 TAPPET (T:3.60) 16 Rp249.000
11-25 12891-57R00-358 TAPPET (T:3.58) 16 Rp249.000
11-24 12891-57R00-356 TAPPET (T:3.56) 16 Rp249.000
11-23 12891-57R00-354 TAPPET (T:3.54) 16 Rp249.000
11-22 12891-57R00-352 TAPPET (T:3.52) 16 Rp249.000
11-40 12891-51K00-388 TAPPET (T:3.88) 16 Rp226.000
11-21 12891-57R00-350 TAPPET (T:3.50) 16 Rp249.000
11-30 12891-57R00-368 TAPPET (T:3.68) 16 Rp249.000
11-31 12891-57R00-370 TAPPET (T:3.70) 16 Rp249.000
11-32 12891-57R00-372 TAPPET (T:3.72) 16 Rp249.000
11-33 12891-57R00-374 TAPPET (T:3.74) 16 Rp249.000
11-34 12891-57R00-376 TAPPET (T:3.76) 16 Rp249.000
11-35 12891-57R00-378 TAPPET (T:3.78) 16 Rp249.000
11-36 12891-51K00-380 TAPPET (T:3.80) 16 Rp232.500
11-37 12891-51K00-382 TAPPET (T:3.82) 16 Rp234.500
11-38 12891-51K00-384 TAPPET (T:3.84) 16 Rp234.500
11-39 12891-51K00-386 TAPPET (T:3.86) 16 Rp234.500
11-10 12891-57R00-328 TAPPET (T:3.28) 16 Rp249.000
11-1 12891-51K00-310 TAPPET 16 Rp227.500
11-2 12891-51K00-312 TAPPET 16 Rp234.500
11-3 12891-51K00-314 TAPPET 16 Rp234.500
11-4 12891-51K00-316 TAPPET 16 Rp232.500
11-5 12891-57R00-318 TAPPET (T:3.18) 16 Rp249.000
11-6 12891-57R00-320 TAPPET (T:3.20) 16 Rp249.000
11-7 12891-57R00-322 TAPPET (T:3.22) 16 Rp249.000
11-8 12891-57R00-324 TAPPET (T:3.24) 16 Rp249.000
11-9 12891-57R00-326 TAPPET (T:3.26) 16 Rp249.000
11-20 12891-57R00-348 TAPPET (T:3.48) 16 Rp249.000
11-11 12891-57R00-330 TAPPET (T:3.30) 16 Rp249.000
11-12 12891-57R00-332 TAPPET (T:3.32) 16 Rp249.000
11-13 12891-57R00-334 TAPPET (T:3.34) 16 Rp249.000
11-14 12891-57R00-336 TAPPET (T:3.36) 16 Rp249.000
11-15 12891-57R00-338 TAPPET (T:3.38) 16 Rp249.000
11-16 12891-57R00-340 TAPPET (T:3.40) 16 Rp249.000
11-17 12891-57R00-342 TAPPET (T:3.42) 16 Rp249.000
11-18 12891-57R00-344 TAPPET (T:3.44) 16 Rp249.000
11-19 12891-57R00-346 TAPPET (T:3.46) 16 Rp249.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
