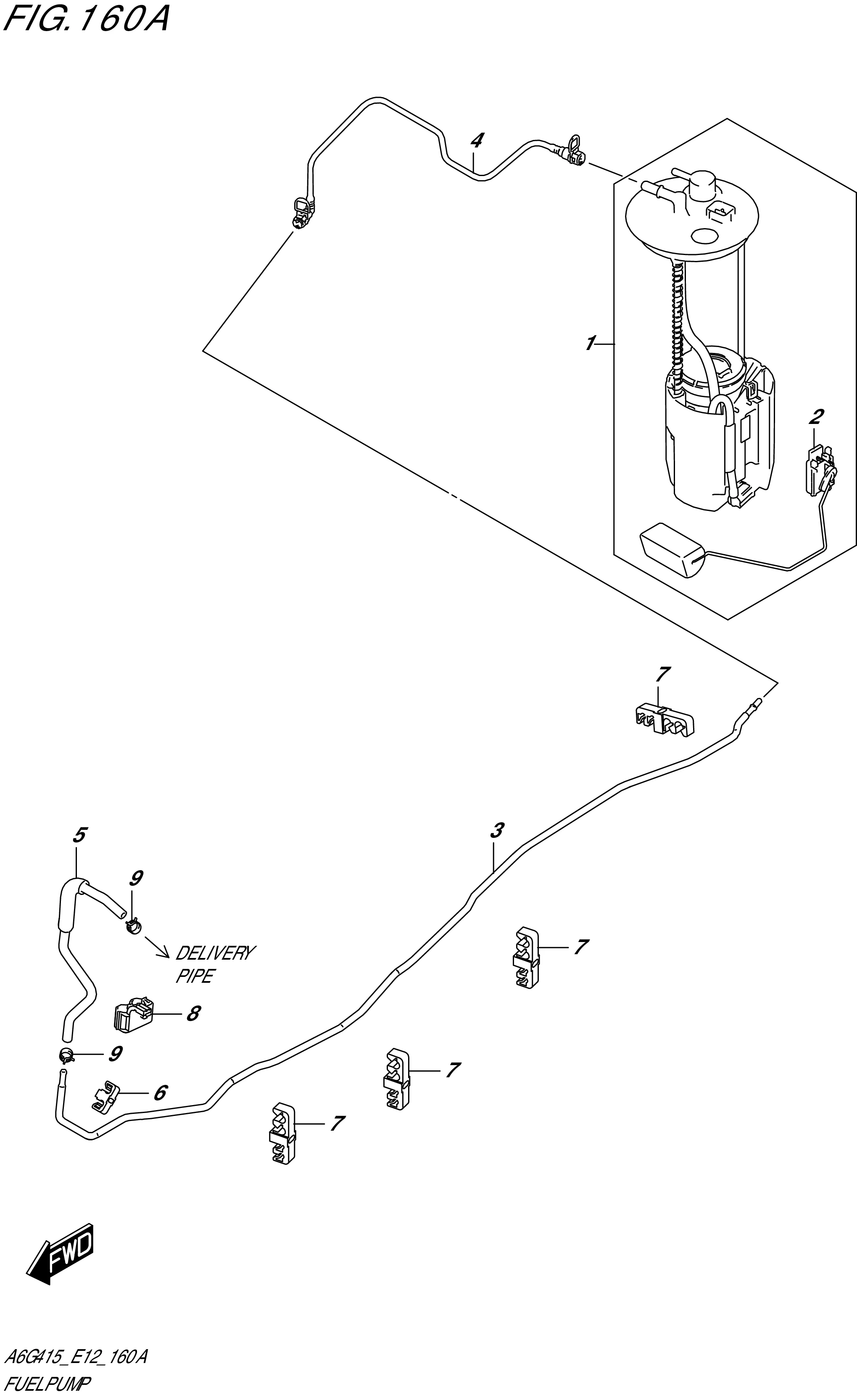

FIG. 160A - FUEL PUMP

FIG. 160A - FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 15100-78R00-000 PUMP ASSY,FUEL 1 Rp4.632.500
2 34810-77R00-000 .GAUGE ASSY,FUEL SENDER 1 Rp900.500
3 15811-77R00-000 PIPE,FUEL FEED 1 Rp475.500
4 15812-77R00-000 PIPE,FUEL 1 Rp334.000
5 15815-78R00-000 HOSE,FUEL 1 Rp411.500
6 15892-52R00-000 CLAMP,FUEL PIPE 1 Rp31.500
7 15893-52R00-000 CLAMP,FUEL PIPE 4 Rp31.500
8 15895-78R00-000 CLAMP,FUEL HOSE 1 Rp55.500
9 09401-11433-000 CLIP,FUEL HOSE 2 Rp25.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
