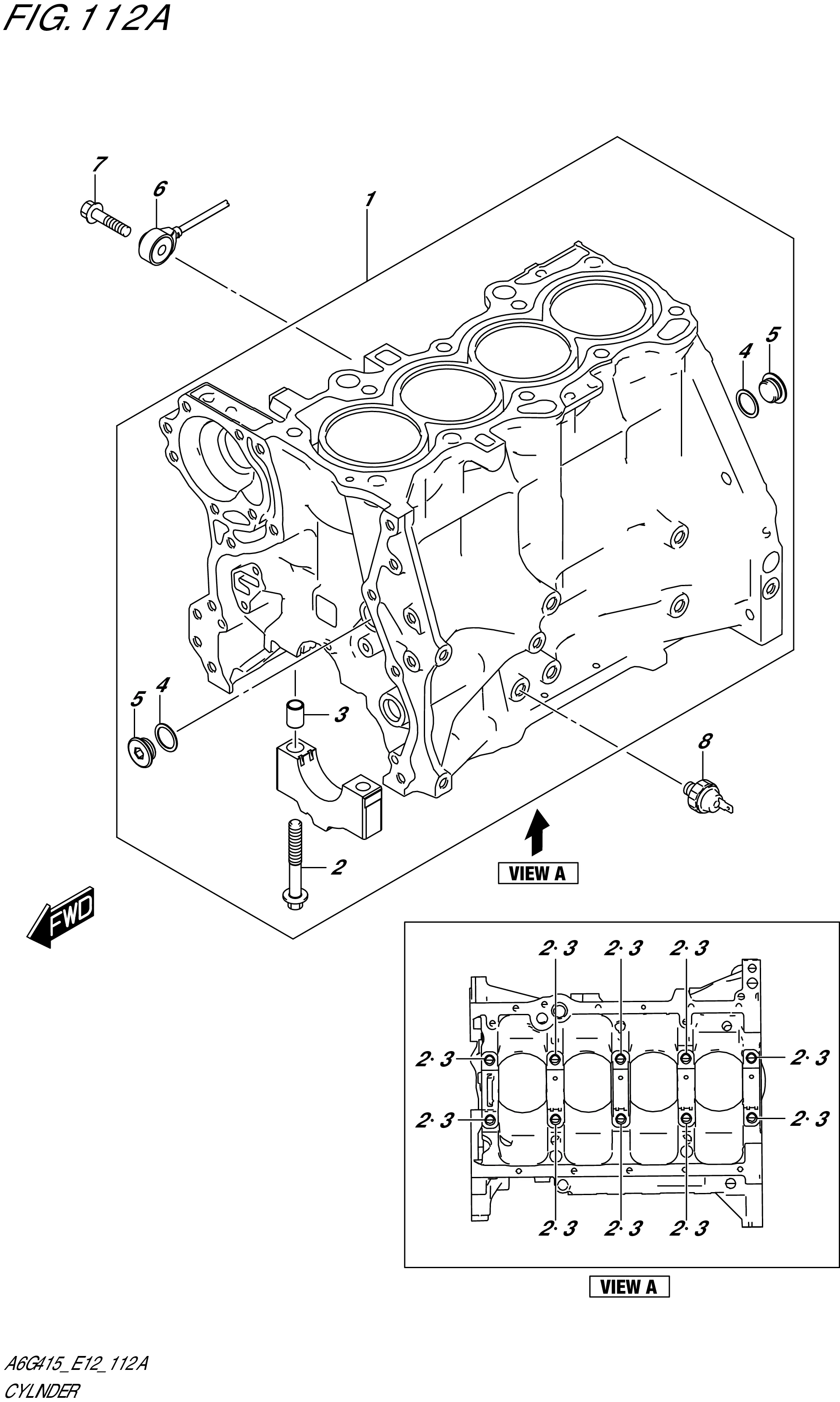

FIG. 112A - CYLINDER

FIG. 112A - CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 11200-78R00-X12 BLOCK ASSY,CYLINDER 1 Rp20.571.000
2 11261-69J01-000 .BOLT,CRANK BEARING CAP 10 Rp37.000
3 04211M13189-000 .PIN (10.4X13X18) 10 Rp9.000
4 11216-77E00-000 .GASKET,M18 PLUG (18X23.5X0.84) 2 Rp21.000
5 09248-18011-000 .PLUG (18X8) 2 Rp38.000
6 18640-82M00-000 SENSOR ASSY, KNOCK 1 Rp1.557.500
7 01550-0835A-000 BOLT (8X35) 1 Rp3.500
8 37820-80GP0-000 SWITCH ASSY,OIL PRESSURE 1 Rp144.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
