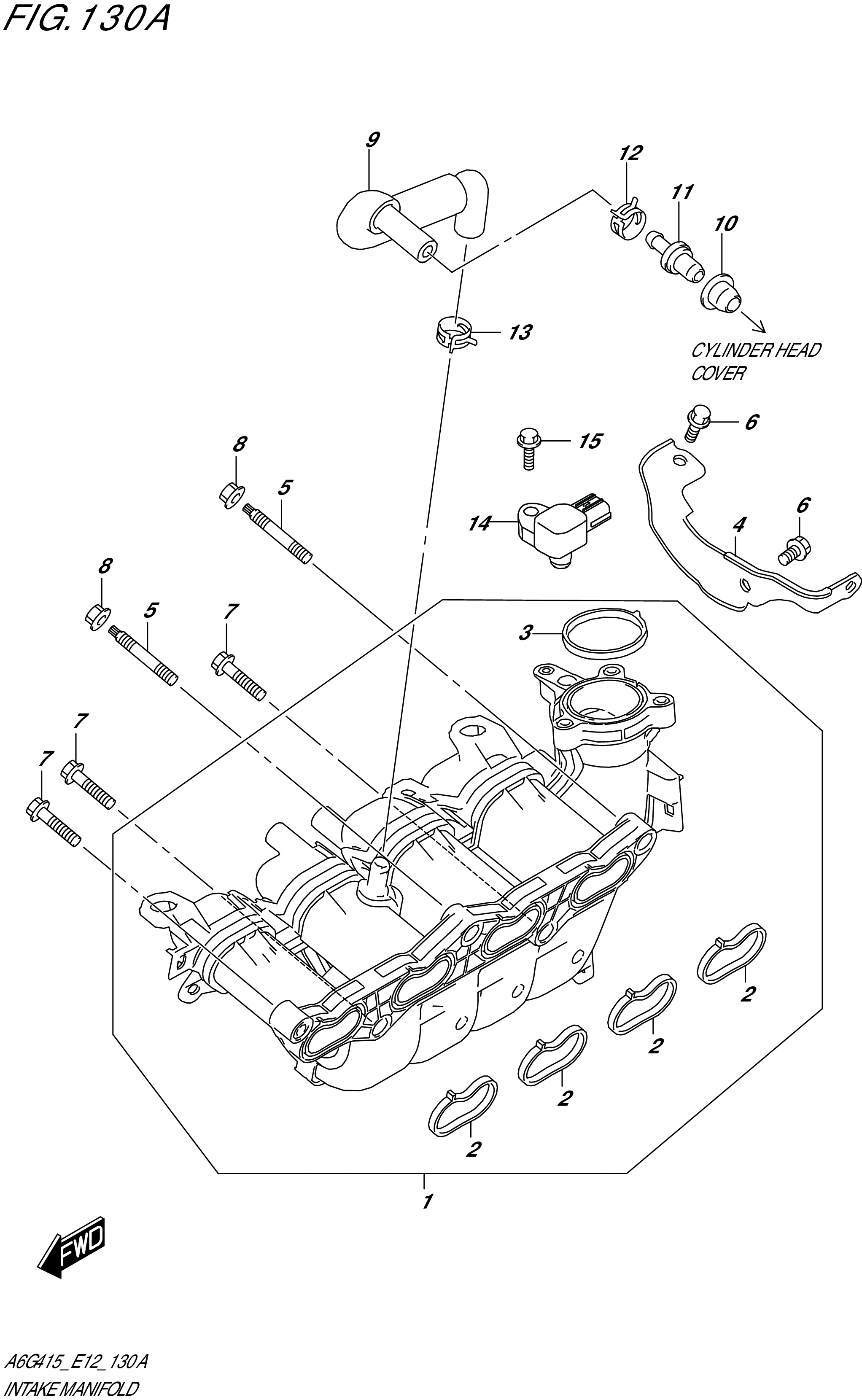

FIG. 130A - INTAKE MANIFOLD

FIG. 130A - INTAKE MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 13110-78R00-000 MANIFOLD,INTK 1 Rp4.205.500
2 13118-67LB0-000 .GASKET,INTK MANF 4 Rp10.500
3 13421-67LB0-000 .GASKET,THROTTLE BODY 1 Rp15.000
4 13161-78R00-000 STIFFENER,INTK MANF 1 Rp195.000
5 09108-08293-000 BOLT,STUD 2 Rp23.000
6 01550-0616A-000
SUB: 01550M0616A-000		 BOLT (6X16) 2 Rp3.500
7 01550-0835A-000 BOLT (8X35) 3 Rp3.500
8 08316-1008A-000 NUT 2 Rp3.500
9 11193-78R00-000 HOSE,PCV 1 Rp173.000
10 11198M79F00-000 SEAL,PCV VALVE 1 Rp16.500
11 18118-60M00-000 VALVE,PCV 1 Rp177.000
12 09401-13414-000 CLIP (ID:13.8) 1 Rp18.000
13 09401-15404-000 CLIP (ID:15.5) 1 Rp14.500
14 18590-78R00-000 SENSOR ASSY,PRESSURE 1 Rp1.991.500
15 01550-0520A-000 BOLT 1 Rp19.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
