New Jimny 3 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 101A - SHORT ENGINE ASSYFIG. 105A - ENGINE GASKET SETFIG. 110A - CYLINDER HEAD COVERFIG. 111A - CYLINDER HEADFIG. 112A - CYLINDERFIG. 115A - OIL PANFIG. 120A - CRANKSHAFTFIG. 122A - CAM SHAFT/VALVEFIG. 124A - CAM CHAINFIG. 128A - ENGINE MOUNTINGFIG. 130A - INTAKE MANIFOLDFIG. 142A - THROTTLE BODYFIG. 150A - AIR CLEANERFIG. 154A - EXHAUST MANIFOLDFIG. 156A - MUFFLERFIG. 160A - FUEL PUMPFIG. 172A - DELIVERY PIPE/FUEL INJECTORFIG. 176A - OIL PUMP FIG. 180A - WATER PUMPFIG. 184A - RADIATOR (5MT)FIG. 184B - RADIATOR (4AT)FIG. 188A - WATER HOSE (5MT)FIG. 188B - WATER HOSE (4AT)FIG. 190A - EMISSION CONTROLFIG. 199A - LABEL

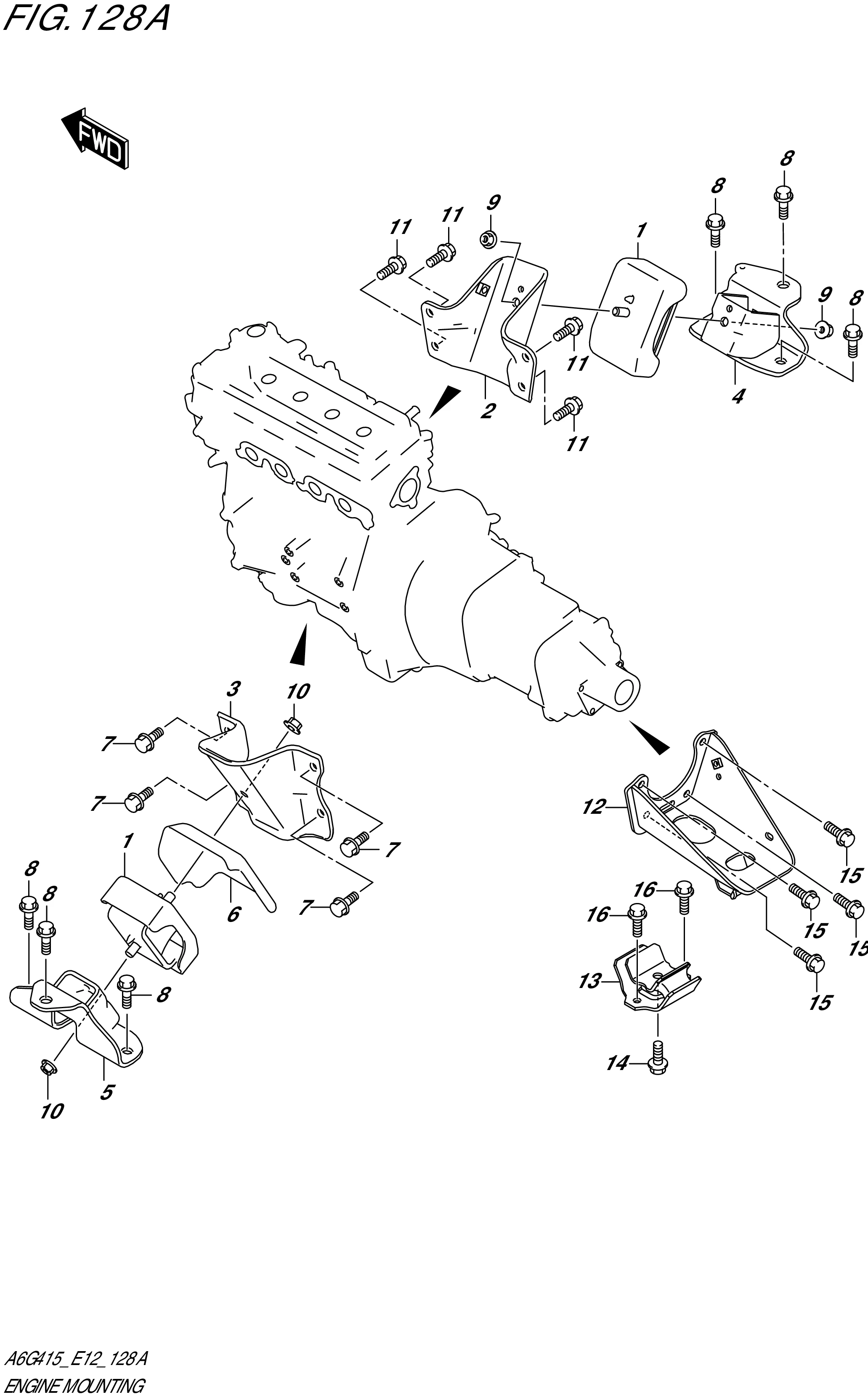

FIG. 128A - ENGINE MOUNTING

FIG. 128A - ENGINE MOUNTING
No No. Part Description Qty Price Per Pcs Remarks
1 11610-78R00-000 MOUNTING,ENG FR 2 Rp769.500
2 11641-78R00-000 BRACKET,ENGINE FRONT MTG,R 1 Rp372.000
3 11651-78R00-000 BRACKET,ENGINE FRONT MTG,L 1 Rp372.000
4 11661-78R00-000 BRACKET,FR MTG FRM SIDE,R 1 Rp406.000
5 11671-78R00-000 BRACKET,FR MTG FRM SIDE,L 1 Rp377.000
6 11681-78R00-000 COVER,FRONT MTG 1 Rp197.500
7 09103-10468-000 BOLT,MTG BRKT ENG SIDE,L (14X25) 4 Rp30.500
8 09119-10091-000 BOLT (14X28) 6 Rp32.500
9 09159-10116-000 NUT (M10) 2 Rp18.000
10 09159-10116-000 NUT (M10) 2 Rp18.000
11 01550-1025A-000
SUB: 01550B1025AN000		 BOLT (10X20) 4 Rp3.500
12 11710-78R00-000 MOUNTING,ENG REAR 1 Rp419.000
13 11740-78R00-000 BRACKET,ENG RR MTG 1 Rp536.500
14 09135-10011-000 BOLT (10X26) 1 Rp34.000
15 01550-0820A-000
SUB: 01550B0820AN000		 BOLT (8X20) 4 Rp5.500
16 01551-0820A-000 BOLT 2 Rp17.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
