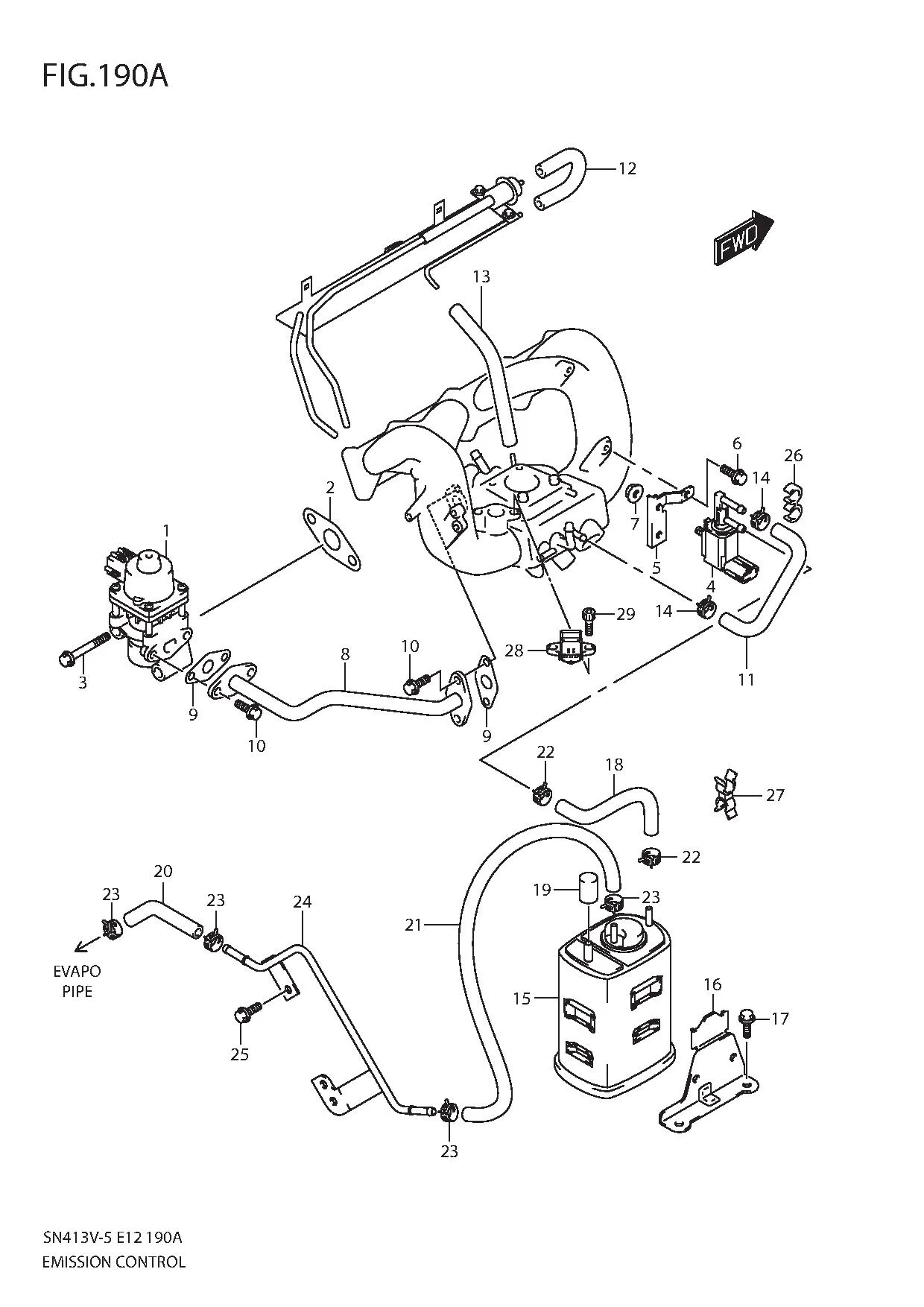

FIG.190A EMISSION CONTROL

FIG.190A EMISSION CONTROL
No No. Part Description Qty Price Per Pcs Remarks
1 18111-69G01-000 VALVE, EGR 1 Rp3.581.000
2 18529-69G00-000 GASKET 1 Rp23.500
3 01550-0855A-000 BOLT 2 Rp3.500
4 DISCONTINUE
SUB: 18117-52G00-000		 VALVE, DUTY FOR PURGE 1 -
5 18417-54D00-000 BRACKET 1 Rp63.500
6 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
7 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000
8 18530-54D00-000 PIPE, EGR 1 Rp532.500
9 18533-77E00-000 GASKET 2 Rp29.500
10 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 4 Rp3.500
11 18565-54D01-000 HOSE, PURGE (VSV TO MANF) 1 Rp140.000
12 09355-35006-601
SUB: 09355-35754-601		 HOSE (3.5X7.5X601) 1 Rp66.000 P-REG TO DLVRY L:601->110
13 09355-35006-601
SUB: 09355-35754-601		 HOSE (3.5X7.5X601) 1 Rp66.000 DLVRY TO MANF L:601->130
14 09401-10409-000
SUB: 09401B10409N000		 CLIP 2 Rp7.500
15 18560-83J00-000 CANISTER 1 Rp892.500
16 18570-80A01-000 BRACKET 1 Rp138.000
17 01550-0812A-000
SUB: 01550B0812AN000		 BOLT 2 Rp3.500
18 18561-80A01-000 HOSE, PURGE (CANISTER TO VSV) 1 Rp111.500
19 18571-65H20-000
SUB: 18571B65H20N000		 CAP, CANISTER AIR 1 Rp11.000
20 09355-56128-600 HOSE (5.6X12.4X600) 1 Rp94.000 PIPE TO PIPE L:600->170
21 18572-80A00-000 HOSE, EVAPO (PIPE TO CSTR) 1 Rp124.500
22 09401-10409-000
SUB: 09401B10409N000		 CLIP 2 Rp7.500
23 09401-10409-000
SUB: 09401B10409N000		 CLIP 4 Rp7.500
24 18575-80A01-000 PIPE, EVAPO 1 Rp236.000
25 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -
26 DISCONTINUE
SUB: 09408-00043-000		 CLAMP 1 -
27 DISCONTINUE
SUB: 09408-00050-000		 CLIP 1 -
28 18590-68H00-000 SENSOR, PRESSURE 1 Rp1.998.500
29 DISCONTINUE
SUB: 07130-0516A-000		 BOLT 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
