JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.101A SHORT ENGINE ASSYFIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTINGFIG.130A INTAKE MANIFOLDFIG.142A THROTTLE BODYFIG.150A AIR CLEANERFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.157A DELIVERY PIPEFIG.160A FUEL PUMPFIG.176A OIL PUMPFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.190A EMISSION CONTROLFIG.199A LABEL

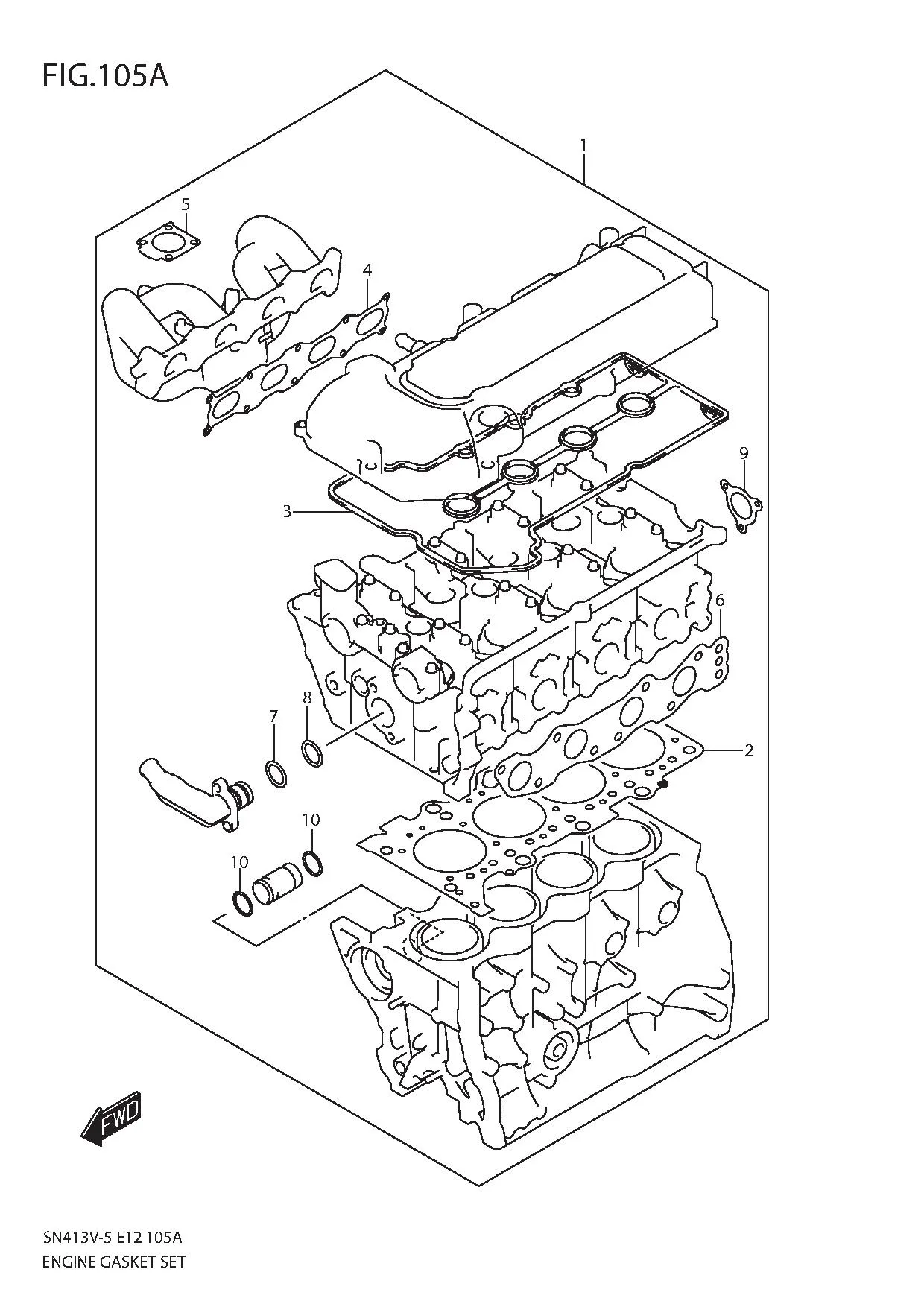

FIG.105A ENGINE GASKET SET

FIG.105A ENGINE GASKET SET
No No. Part Description Qty Price Per Pcs Remarks
1 11400-69855-000 GASKET SET, ENGINE 1 Rp1.789.500
2 11141-69G03-000 •GASKET, CYLINDER HEAD 1 Rp706.500
3 11189-54G00-000 •GASKET, CYLINDER HEAD COVER 1 Rp281.500
4 13119-69G00-000 •GASKET, INTAKE MANIFOLD 1 Rp152.500
5 13421-54G10-000 •GASKET, THROTTLE BODY 1 Rp33.000
6 14140-69G02-000 •GASKET, EXHAUST MANIFOLD 1 Rp156.000
7 17582-54D00-000 •O RING, WATER OUTLET CAP NO.1 1 Rp29.000
8 17583-54D00-000 •O RING, WATER OUTLET CAP NO.2 1 Rp32.000
9 17699-69G00-000 •GASKET, WATER OUTLET CAP 1 Rp40.500
10 09280-28008-000
SUB: 09280B28008N000		 •O RING (D:3.5,ID:27.7) 2 Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
