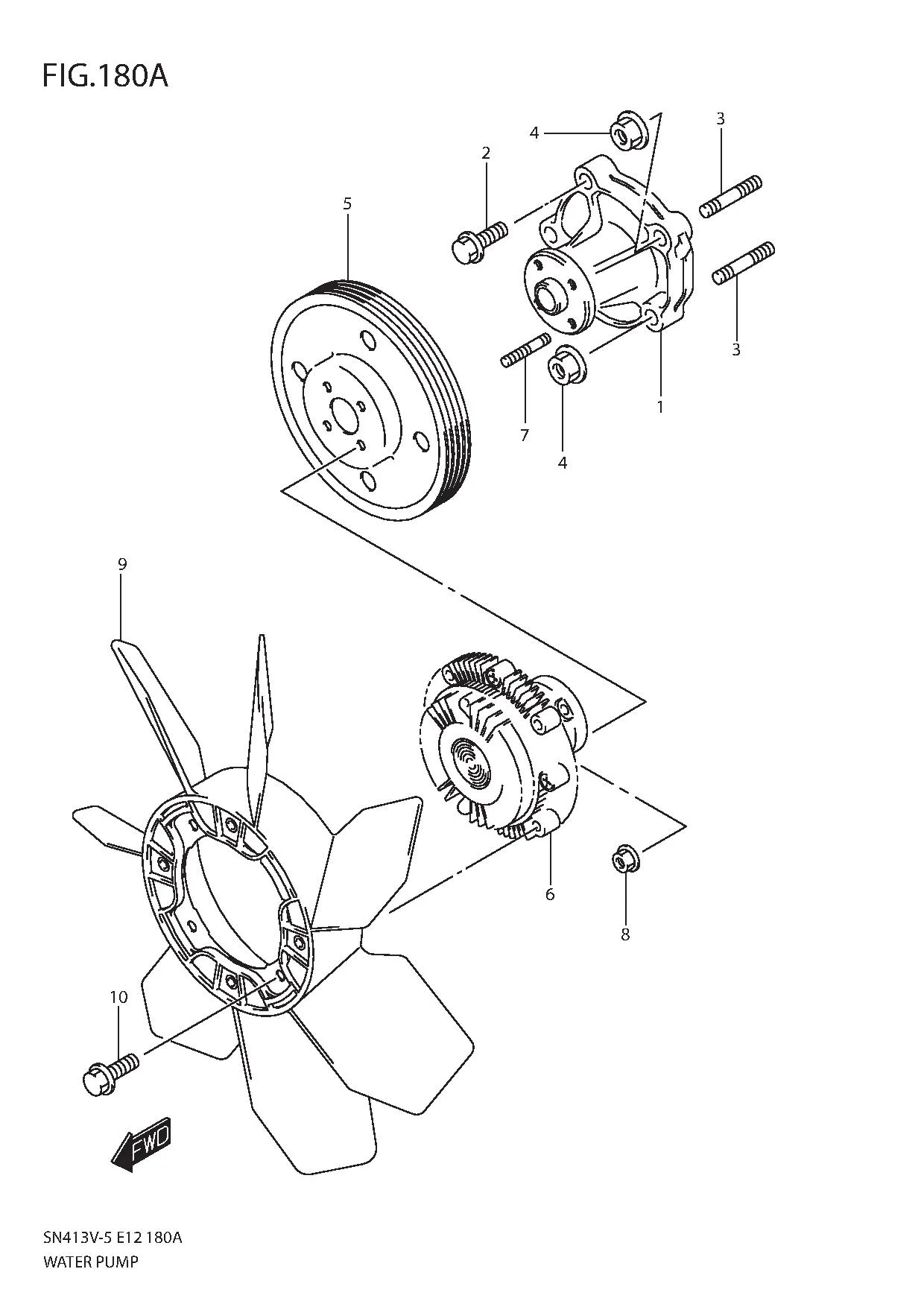

FIG.180A WATER PUMP

FIG.180A WATER PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 17400-69G05-000
SUB: 17400-69G04-000		 PUMP ASSY, WATER 1 Rp1.212.000
2 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 3 Rp3.500
3 01421-0830A-000 STUD BOLT 2 Rp16.500
4 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
5 17511-69G01-000 PULLEY, WATER PUMP 1 Rp308.000
6 17120-81A00-000 CLUTCH ASSY, FAN 1 Rp2.340.500
7 01411-0620A-000 STUD BOLT 4 Rp17.000
8 08316-1006A-000
SUB: 08316B1006AN000		 NUT 4 Rp2.000
9 17110-80A00-000 FAN, COOLING 1 Rp575.000
10 01550-0620B-000
SUB: 01550B0620AN000		 BOLT 4 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
