JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.101A SHORT ENGINE ASSYFIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTINGFIG.130A INTAKE MANIFOLDFIG.142A THROTTLE BODYFIG.150A AIR CLEANERFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.157A DELIVERY PIPEFIG.160A FUEL PUMPFIG.176A OIL PUMPFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.190A EMISSION CONTROLFIG.199A LABEL

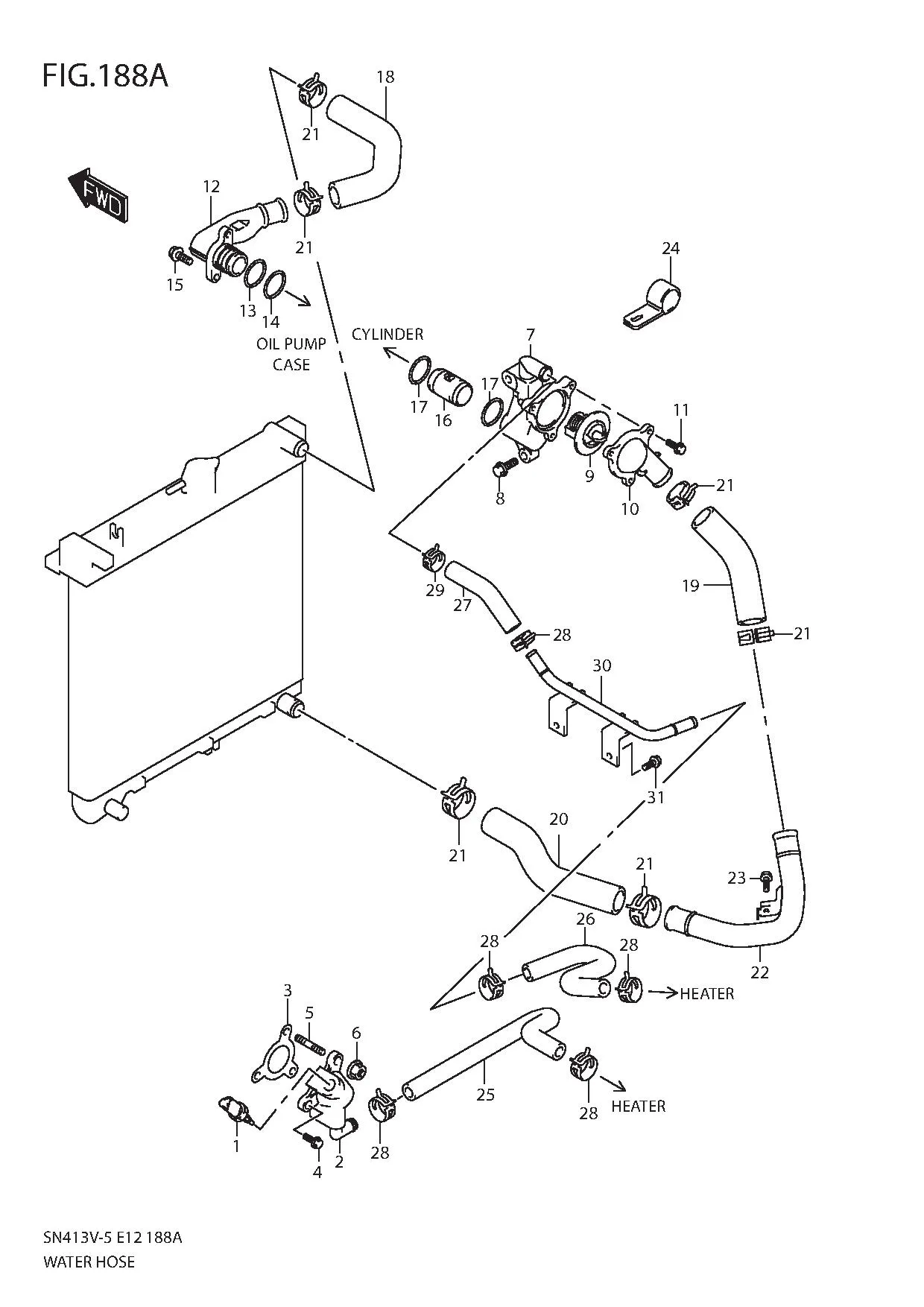

FIG.188A WATER HOSE

FIG.188A WATER HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 13650-54G00-000 SENSOR, WATER TEMPERATURE 1 Rp659.500
2 17570-54D01-000 CAP, WATER OUTLET 1 Rp485.500
3 17699-69G00-000 GASKET 1 Rp40.500
4 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 1 Rp3.500
5 01421-0825A-000 STUD BOLT 2 Rp13.000
6 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
7 17690-69G00-000 CASE, THERMOSTAT 1 Rp860.500
8 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 2 Rp3.500
9 17670-63J00-000 THERMOSTAT, WATER (82ßC) 1 Rp324.500
10 17560-80A00-000 CAP, WATER THERMOSTAT 1 Rp199.500
11 01550-0620B-000
SUB: 01550B0620AN000		 BOLT 3 Rp3.500
12 17581-80A00-000 PIPE, WATER OUTLET 1 Rp765.500
13 17582-54D00-000 O RING, WATER OUTLET CAP NO.1 1 Rp29.000 (D:3.5 ID:30.7)
14 17583-54D00-000 O RING, WATER OUTLET CAP NO.2 1 Rp32.000 (D:3.8 ID:27.7)
15 01550-0845A-000 BOLT 2 Rp18.000
16 17831-69G00-000 PIPE, THERMO CASE WATER OUTLET 1 Rp154.500
17 09280-28008-000
SUB: 09280B28008N000		 O RING (D:3.5,ID:27.7) 2 Rp2.500
18 17841-80A00-000 HOSE, RADIATOR INLET 1 Rp193.000
19 17852-80A00-000 HOSE, WATER INLET 1 Rp150.500
20 17851-80A00-000 HOSE, RADIATOR OUTLET 1 Rp238.000
21 09401-30405-000 CLIP 6 Rp35.000
22 17860-80A00-000 PIPE, RADIATOR OUTLET 1 Rp393.000
23 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
24 09403-28403-000 CLAMP 1 Rp66.000
25 17871-80A01-000 HOSE, HEATER INLET 1 Rp176.000
26 17872-80A01-000 HOSE, HEATER OUTLET (TO PIPE) 1 Rp158.500
27 17873-80A00-000 HOSE, HEATER OUTLET (TO CASE) 1 Rp116.000
28 11199M68K00-000
SUB: 09401-18403-000		 CLIP 5 Rp11.000
29 09401-21405-000 CLIP 1 Rp25.000
30 17880-80A00-000 PIPE, HEATER 1 Rp249.000
31 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
