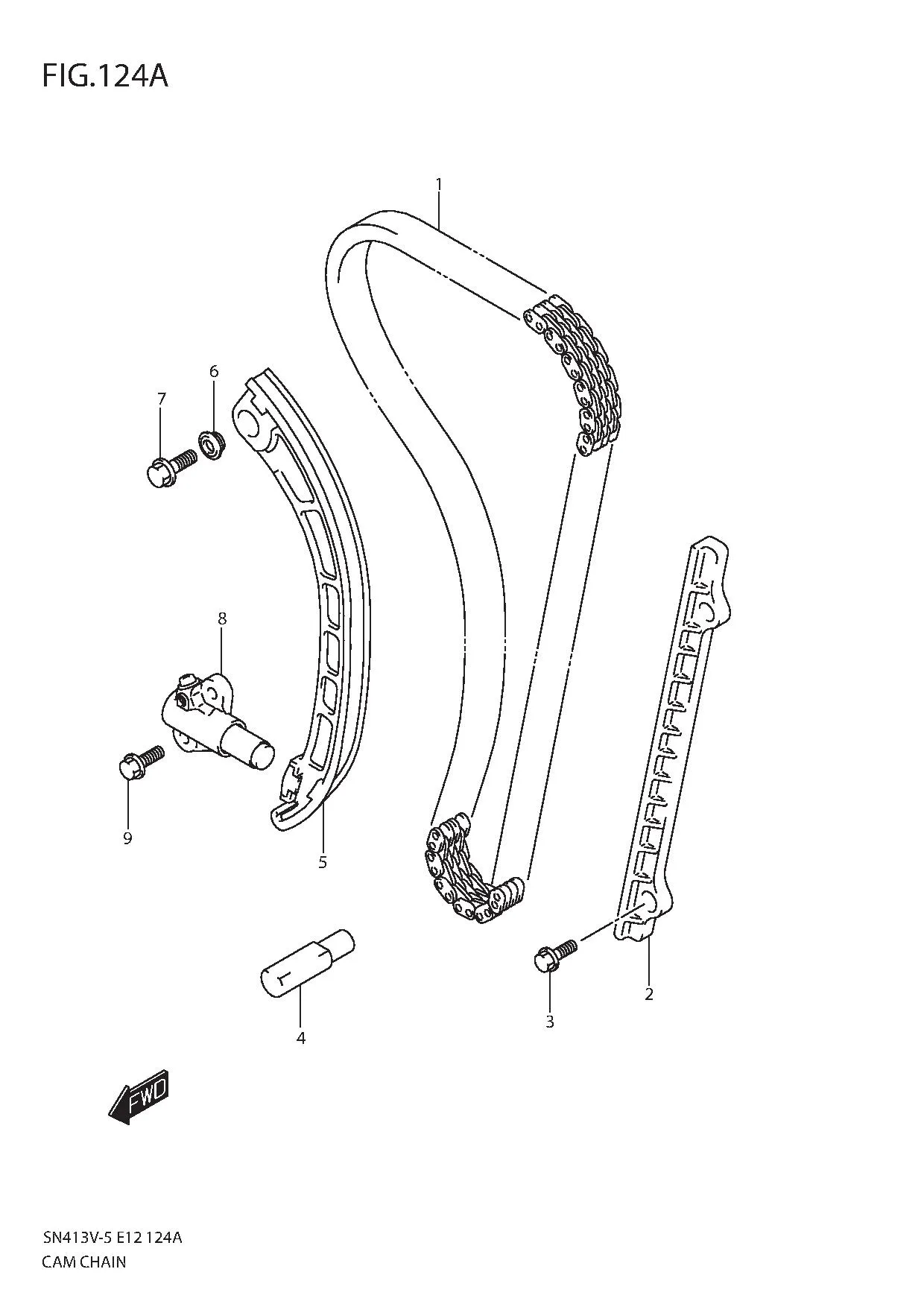

FIG.124A CAM CHAIN

FIG.124A CAM CHAIN
No No. Part Description Qty Price Per Pcs Remarks
1 12761-54G00-000 CHAIN, TIMING 1 Rp764.500
2 12771-61M00-000 GUIDE, TIMING CHAIN NO.1 1 Rp199.500
3 12776-85FA0-000 BOLT 2 Rp39.000
4 12781-69G00-000
SUB: 12781B69G00N000		 JET 1 Rp24.500
5 12811-61M00-000 TENSIONER 1 Rp681.000
6 12812M73G10-000 SPACER 1 Rp13.000
7 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 1 Rp4.000
8 12831-69G10-000 ADJUSTER ASSY, TENSIONER 1 Rp872.500
9 01550-0620B-000
SUB: 01550B0620AN000		 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
