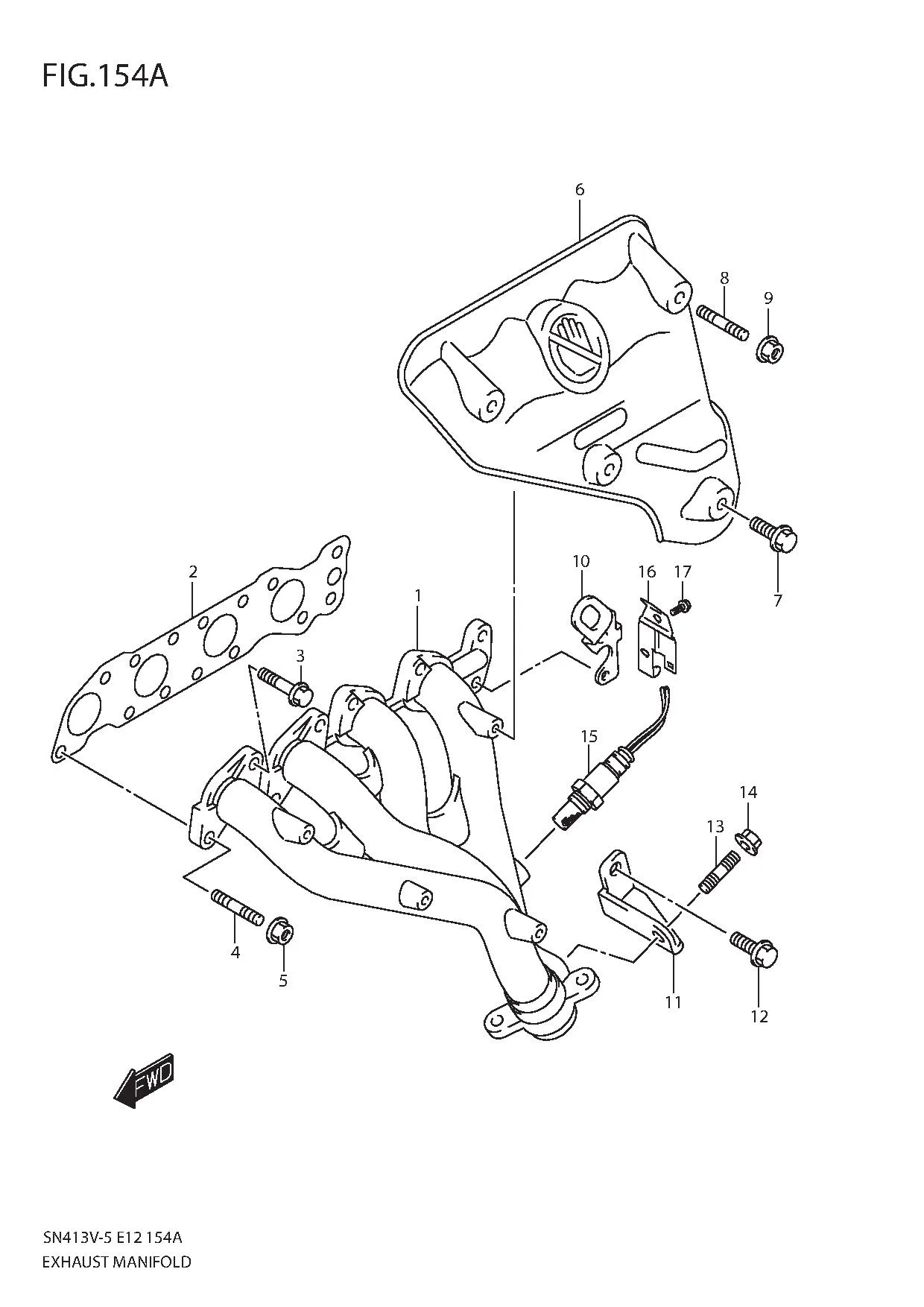

FIG.154A EXHAUST MANIFOLD

FIG.154A EXHAUST MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 14111-80A11-000 MANIFOLD, EXHAUST 1 Rp4.480.500
2 14140-69G02-000 GASKET 1 Rp156.000
3 09135-10011-000 BOLT (10X26) 4 Rp34.000
4 14118-63J00-000 STUD BOLT 6 Rp21.500
5 08316-1010A-000
SUB: 08316B1010AN000		 NUT 6 Rp3.500
6 14120-80A10-000 COVER COMP, EXHAUST MANIFOLD 1 Rp855.500
7 09116-06181-000 BOLT (6X13) 2 Rp23.500
8 01411-0612A-000 STUD BOLT 2 Rp11.500
9 09159-06086-000 NUT 2 Rp26.500
10 DISCONTINUE
SUB: 11851-54D01-000		 HOOK, ENGINE 1 -
11 14271-80A10-000 STIFFENER, EXHAUST MANIFOLD 1 Rp185.000
12 09103-10324-000 BOLT (10X20) 1 Rp30.000
13 01411-1016A-000 STUD BOLT 1 Rp29.000
14 08316-1010A-000
SUB: 08316B1010AN000		 NUT 1 Rp3.500
15 18213-76J01-000 SENSOR, OXYGEN 1 Rp3.278.500
16 18214-65D21-000 BRACKET 1 Rp63.500
17 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
