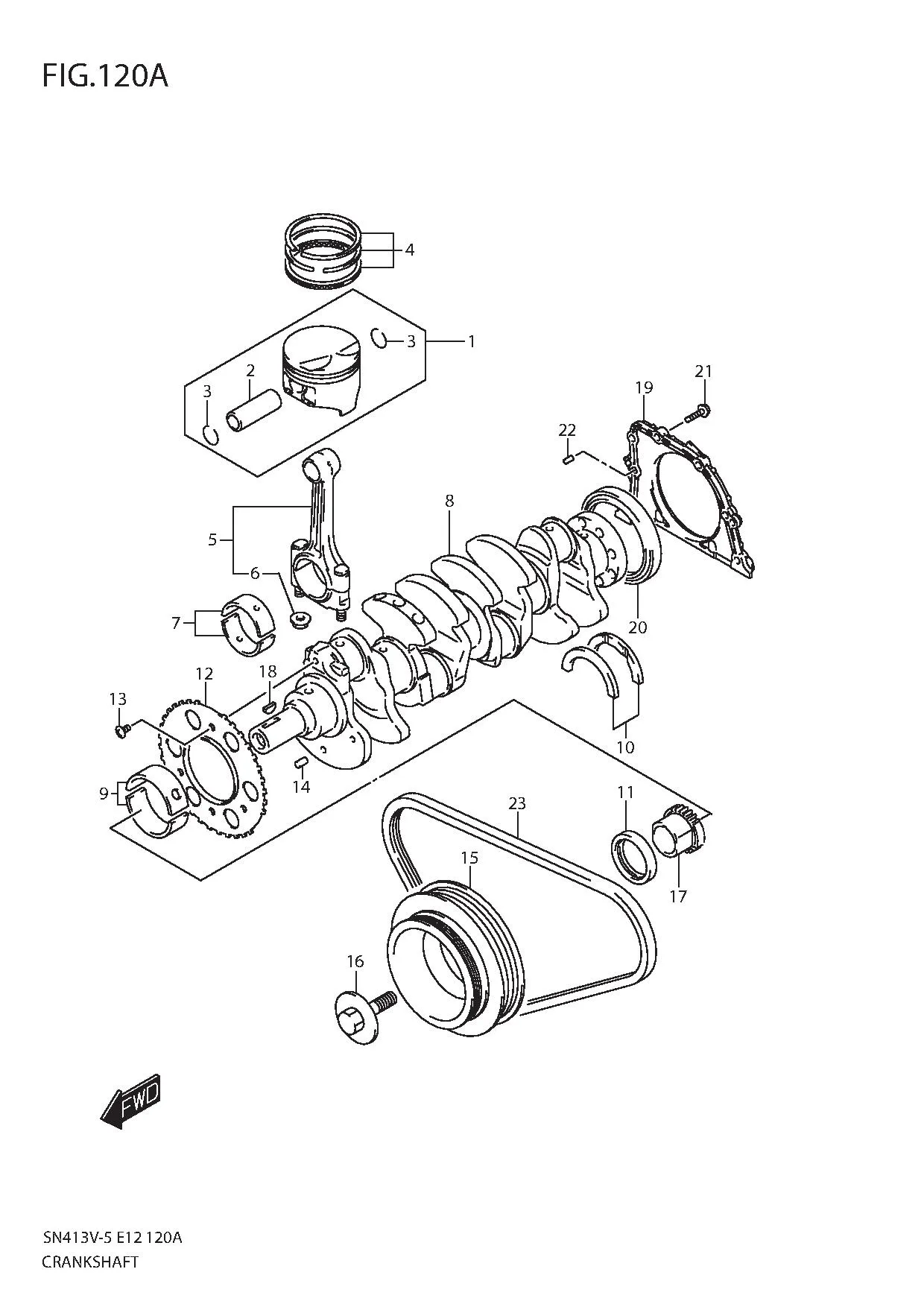

FIG.120A CRANKSHAFT

FIG.120A CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1-2 12100-69811-050 PISTON SET 4 Rp764.000 OS:0.50
1-1 12100-69811-000 PISTON SET 4 Rp769.000 STD
2 12151-85FA0-000 •PIN, PISTON 4 Rp78.000
3 09381-20004-000 •CIRCLIP 8 Rp13.500
4-1 12140-81K00-000
SUB: 12140B54GA0N000		 RING SET, PISTON (STD) 4 Rp88.000 STD
4-2 12140-81K00-050
SUB: 12140B54GA0N050		 RING SET, PISTON (OS:0.50) 4 Rp88.000 OS:0.50
5 12160-70H10-000 CONNECTING ROD ASSY 4 Rp1.301.000
6 09159-08114-000 •NUT 8 Rp22.500
7-4 12100-70880-0D0 BEARING SET, CONNROD (YELLOW) 4 Rp199.500 STD,T:1.5
7-6 12100-70880-025 BEARING SET, CONNROD 4 Rp206.000 US:0.25,T:1.625
7-5 12100-70880-0E0 BEARING SET, CONNROD (BLUE) 4 Rp211.000 STD,T:1.5
7-3 12100-70880-0C0 BEARING SET, CONNROD (NON) 4 Rp199.500 STD,T:1.5
7-2 12100-70880-0B0 BEARING SET, CONNROD (BLACK) 4 Rp206.000 STD,T:1.5
7-1 12100-70880-0A0 BEARING SET, CONNROD (GREEN) 4 Rp199.500 STD,T:1.5
8 12221-69G10-000 CRANKSHAFT 1 Rp10.085.000
9-10 12300-57830-0EA BEARING SET (RED/GREEN) 5 Rp224.500 US:0.25,T:2.125
9-9 12300-57830-0DA BEARING SET (RED/GREEN) 5 Rp219.500 US:0.25,T:2.125
9-8 12300-57830-0CA BEARING SET (RED/BROWN) 5 Rp219.500 US:0.25,T:2.125
9-7 12300-57830-0BA BEARING SET (RED/PURPLE) 5 Rp219.500 US:0.25,T:2.125
9-6 12300-57830-0AA BEARING SET (RED/PINK) 5 Rp224.500 US:0.25,T:2.125
9-4 12340-61M00-0D0 BEARING SET (GREEN) 5 Rp219.500 STD,T:2
9-3 12340-61M00-0C0 BEARING SET (PURPLE) 5 Rp213.000 STD,T:2
9-2 12340-61M00-0B0 BEARING SET (PURPLE) 5 Rp219.500 STD,T:2
9-1 12340-61M00-0A0 BEARING SET (PINK) 5 Rp219.500 STD,T:2
9-5 12340-61M00-0E0 BEARING SET (BLACK) 5 Rp224.500 STD,T:2
10-1 12300-78890-000 BEARING SET, CRANK THRUST 1 Rp172.500 STD,T:2.5
10-2 12300-78890-012 BEARING SET, CRANK THRUST 1 Rp167.500 US:1.25,T:2.563
11 09283-41003-000 SEAL, CRANKSHAFT FRONT OIL 1 Rp94.500
12 12222-69G00-000 PLATE, SENSOR 1 Rp98.500
13 12223-69G00-000 SCREW (6X10) 3 Rp13.500
14 09205-05006-000 SPRING PIN (5X12) 1 Rp11.500
15 12610-80A01-000 PULLEY, CRANKSHAFT 1 Rp2.155.500
16 12619-69G10-000 BOLT 1 Rp102.500
17 12631-54G11-000 SPROCKET, CRANK TIMING 1 Rp439.500
18 08341M31059-000 KEY 1 Rp4.500
19 11341-69G20-000 HOUSING, OIL SEAL 1 Rp639.000
20 09283-83002-000 OIL SEAL (83X97X7) 1 Rp233.000
21 09103-06282-000 BOLT (6X25) 7 Rp16.500
22 04221-06129-000 PIN 2 Rp12.500
23 95141-50F01-000
SUB: 95141B50F01N000		 BELT, WATER PUMP (4PK835) 1 Rp80.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
