JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.101A SHORT ENGINE ASSYFIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTINGFIG.130A INTAKE MANIFOLDFIG.142A THROTTLE BODYFIG.150A AIR CLEANERFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.157A DELIVERY PIPEFIG.160A FUEL PUMPFIG.176A OIL PUMPFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.190A EMISSION CONTROLFIG.199A LABEL

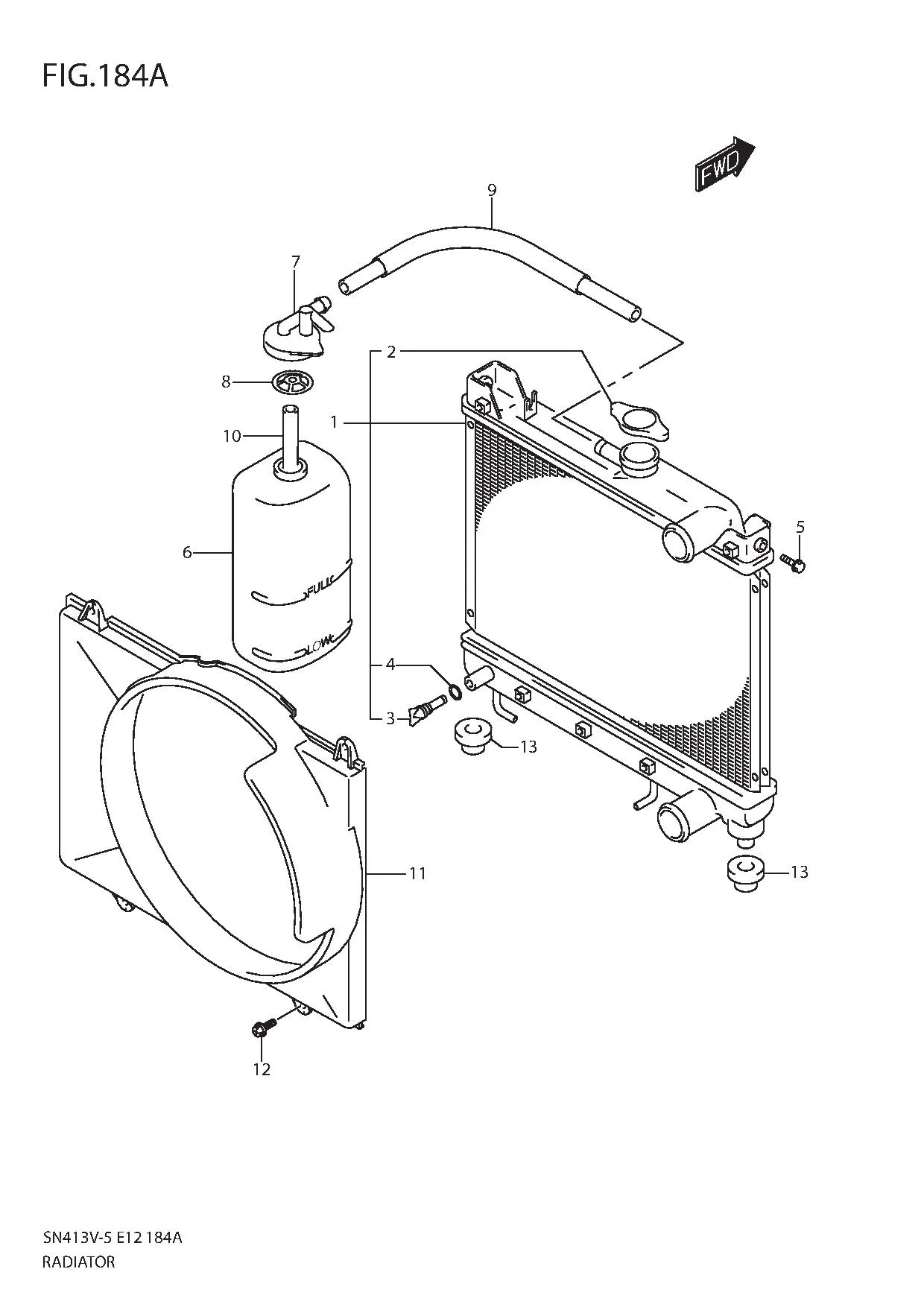

FIG.184A RADIATOR

FIG.184A RADIATOR
No No. Part Description Qty Price Per Pcs Remarks
1 17700-80A10-000 RADIATOR ASSY 1 Rp9.238.500
2 DISCONTINUE
SUB: 17920B75F00N000		 •CAP, RADIATOR 1 -
3 17751-61A00-000
SUB: 17751B61A00N000		 •PLUG, DRAIN 1 Rp13.000
4 17759-72010-000 •O RING 1 Rp17.000
5 02162-0625A-000 BOLT 2 Rp3.500
6 17931-80F50-000 TANK, WATER RESERVE 1 Rp348.000
7 17932-81AA0-000 CAP 1 Rp46.000
8 DISCONTINUE
SUB: 17933-57M00-000		 RUBBER 1 -
9 17938-81A10-000 HOSE (RDTR TO RSV TANK) 1 Rp148.500 L:520->480
10 09352-70111-600 HOSE (7X11X600) 1 Rp82.500 L:600->220
11 17761-76J00-000 SHROUD, FAN 1 Rp387.500
12 01550-0612B-000 SCREW 4 Rp16.500
13 17812-82000-000 BUSH, RADIATOR SUPPORT 2 Rp27.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
