JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.101A SHORT ENGINE ASSYFIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTINGFIG.130A INTAKE MANIFOLDFIG.142A THROTTLE BODYFIG.150A AIR CLEANERFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.157A DELIVERY PIPEFIG.160A FUEL PUMPFIG.176A OIL PUMPFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.190A EMISSION CONTROLFIG.199A LABEL

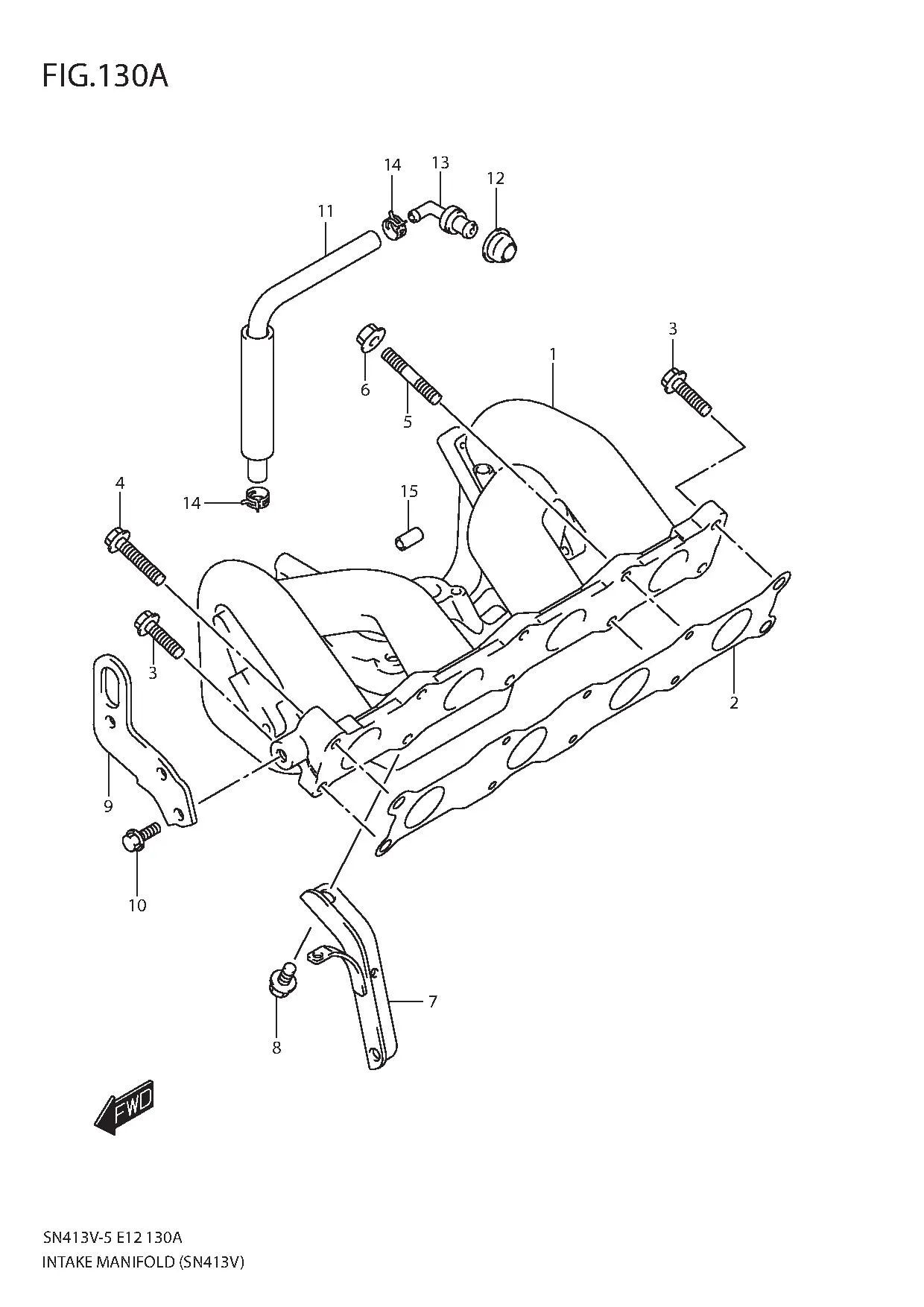

FIG.130A INTAKE MANIFOLD

FIG.130A INTAKE MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 13110-54D04-000 MANIFOLD, INTAKE 1 Rp7.066.000
2 13119-69G00-000 GASKET 1 Rp152.500
3 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 6 Rp3.500
4 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 1 Rp3.500
5 09108-08266-000 STUD BOLT 3 Rp26.500
6 08316-1008A-000
SUB: 08316B1008AN000		 NUT 3 Rp3.500
7 13161-80A00-000 STIFFENER, INTAKE MANIFOLD 1 Rp146.000
8 01550-1020A-000 BOLT 2 Rp21.000
9 11851-64J01-000 HOOK, ENGINE 1 Rp120.500
10 01550-0820A-000
SUB: 01550B0820AN000		 BOLT 1 Rp5.500
11 11193-54D01-000 HOSE, PCV 1 Rp119.000
12 11198M79F00-000
SUB: 11198M58B00-000		 SEAL, PCV VALVE 1 Rp16.500
13 18118-54D00-000 VALVE, PCV 1 Rp186.500
14 09401-13414-000 CLIP 2 Rp18.000
15 DISCONTINUE
SUB: 09251-05006-000		 PLUG 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
