JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.101A SHORT ENGINE ASSYFIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTINGFIG.130A INTAKE MANIFOLDFIG.142A THROTTLE BODYFIG.150A AIR CLEANERFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.157A DELIVERY PIPEFIG.160A FUEL PUMPFIG.176A OIL PUMPFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.190A EMISSION CONTROLFIG.199A LABEL

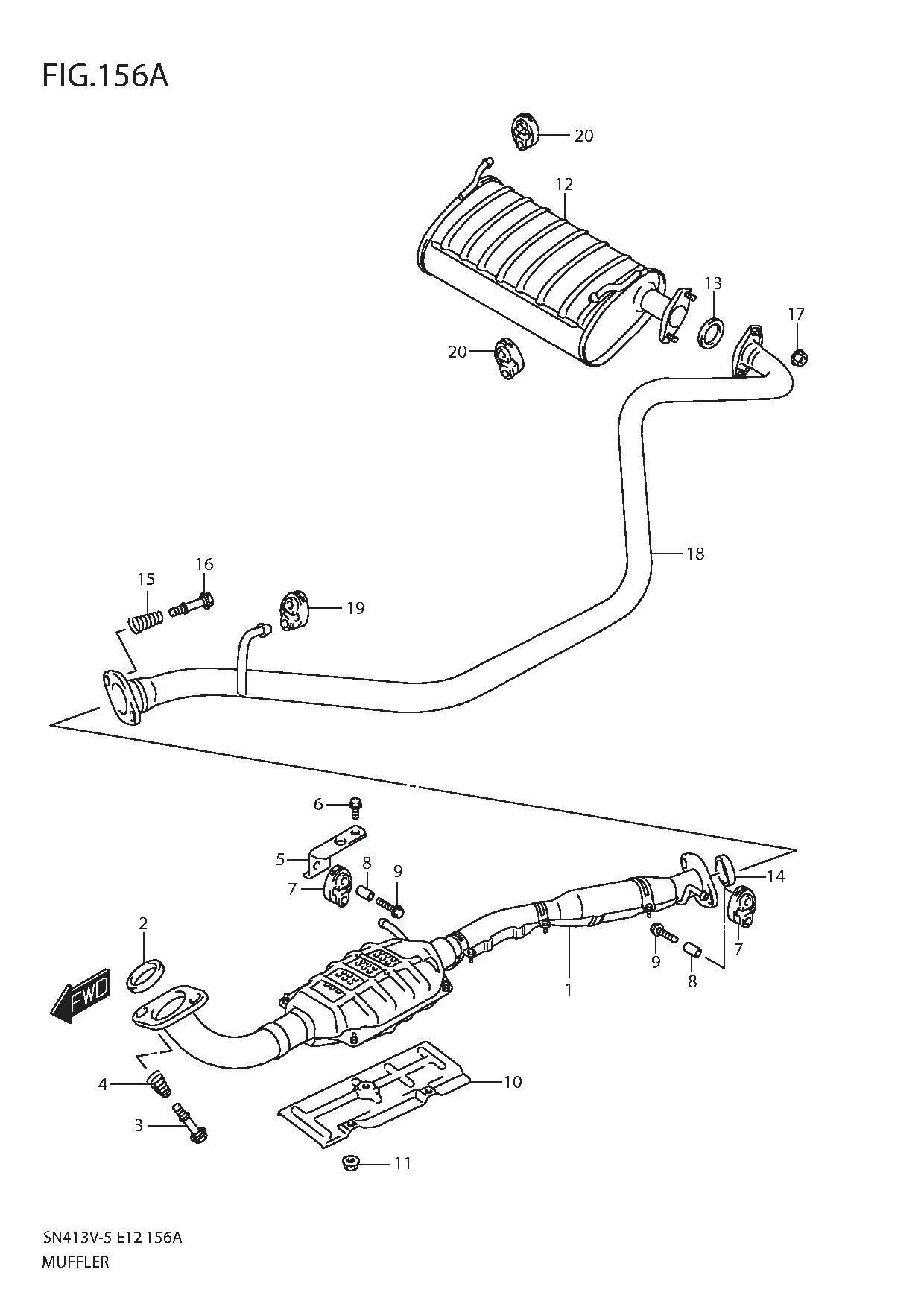

FIG.156A MUFFLER

FIG.156A MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14190-76J12-000 PIPE, EXHAUST 1 Rp13.351.000
2 14183-76A00-000 SEAL RING 1 Rp126.500
3 09119-10073-000
SUB: 09119-10041-000		 BOLT (10X65) 2 Rp75.000
4 14492-67D00-000 SPRING 2 Rp64.000
5 14284-84A01-000 BRACKET, EXH PIPE 1 Rp160.000
6 01551-0816C-000 BOLT 2 Rp13.500
7 14209M78020-000
SUB: 14281-60G01-000		 MOUNTING 2 Rp14.500
8 09180M08095-000
SUB: 09180-08057-000		 SPACER (8.2X12.5X23.5) 2 Rp7.000
9 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 2 Rp3.500
10 14231-81A01-000 PANEL, HEAT PROTECTOR 1 Rp151.000
11 08316-1006A-000
SUB: 08316B1006AN000		 NUT 3 Rp2.000
12 14300-81A12-000 MUFFLER 1 Rp3.915.500
13 14182-60B01-000
SUB: 14182-60B00-000		 GASKET 1 Rp61.000
14 14183-76A00-000 SEAL RING 1 Rp126.500
15 14492-67D00-000 SPRING 2 Rp64.000
16 09119-10073-000
SUB: 09119-10041-000		 BOLT 2 Rp75.000
17 09159M10049-000
SUB: 09159-10102-000		 NUT 2 Rp10.500
18 14260-81A01-000 PIPE, EXH CENTER 1 Rp2.681.500
19 14209M78020-000
SUB: 14281-60G01-000		 MOUNTING 1 Rp14.500
20 14281-60G11-000 MOUNTING 2 Rp80.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
