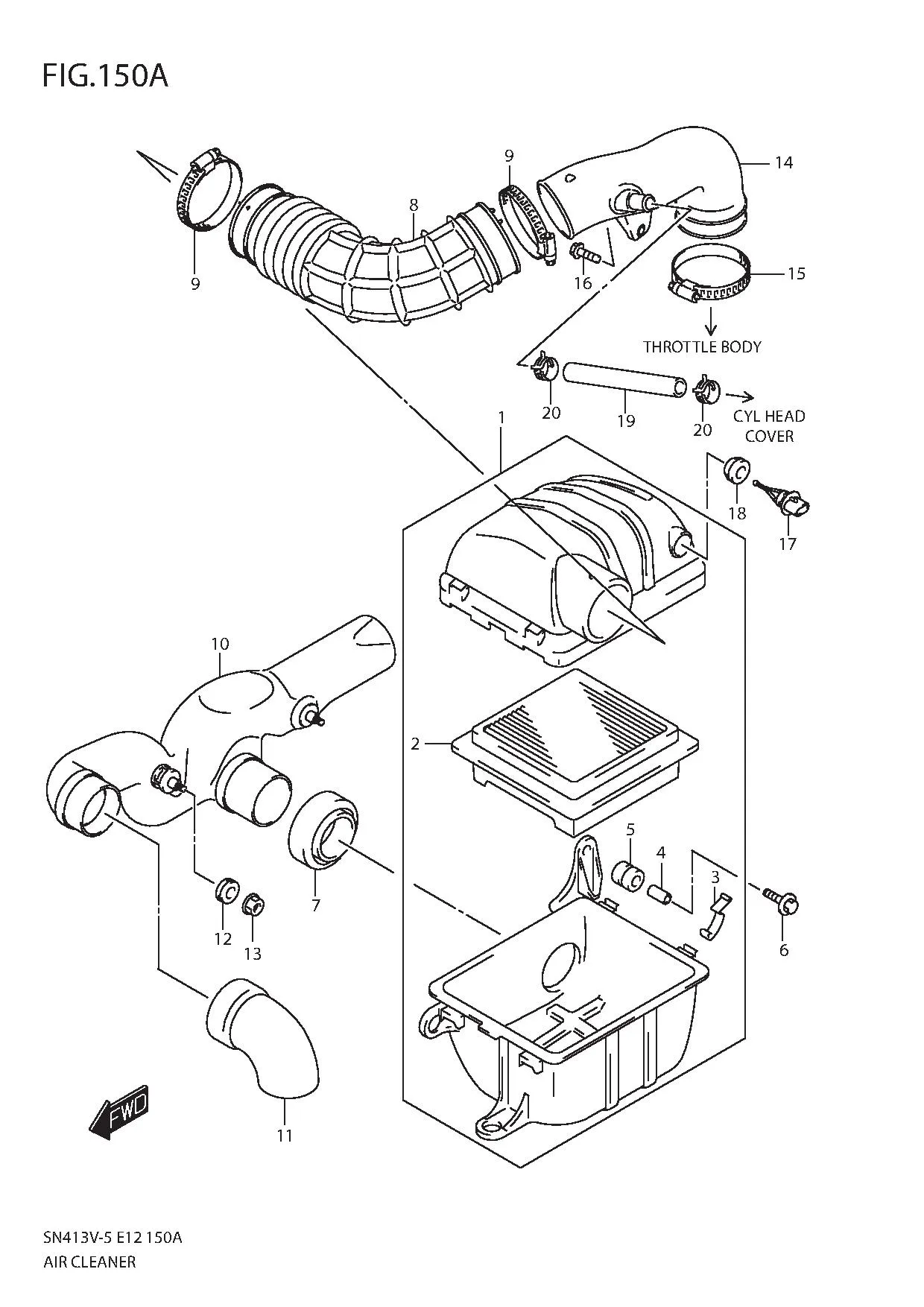

FIG.150A AIR CLEANER

FIG.150A AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-81A00-000 CLEANER ASSY, AIR 1 Rp2.379.000
2 13780-81A00-000 •ELEMENT, AIR CLEANER 1 Rp301.500
3 DISCONTINUE
SUB: 13755-80GA0-000		 •CLAMP 4 -
4 13877-65D00-000 •SPACER 3 Rp45.000
5 13878-65D00-000 •CUSHION 3 Rp43.000
6 09116-06172-000 BOLT (6X30) 3 Rp19.500
7 13872-81A00-000 SEAL, INLET 1 Rp63.500
8 13881-80A00-000 HOSE, OUTLET 1 Rp504.500
9 09402-70503-000 CLAMP 2 Rp91.500
10 13820-80A00-000 CASE, AIR CLEANER SUCTION 1 Rp887.500
11 13871-81A00-000 HOSE, AIR CLEANER SUCTION 1 Rp142.000
12 DISCONTINUE
SUB: 13874-51E50-000		 CUSHION 2 -
13 09159-06081-000 NUT 2 Rp14.500
14 13830-80A00-000 PIPE, AIR INTAKE 1 Rp793.500
15 09402-68208-000 CLAMP 1 Rp51.500
16 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 1 Rp3.500
17 13650-52G00-000 SENSOR, AIR TEMPERATURE 1 Rp762.500
18 13655-87J01-000
SUB: 13655-87J00-000		 GROMMET, AIR TEMP SENSOR 1 Rp31.000
19 09355-13207-600 HOSE (13X20X600) 1 Rp146.000 L:600->150
20 11199M68K00-000
SUB: 09401M18404-000		 CLIP 2 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
