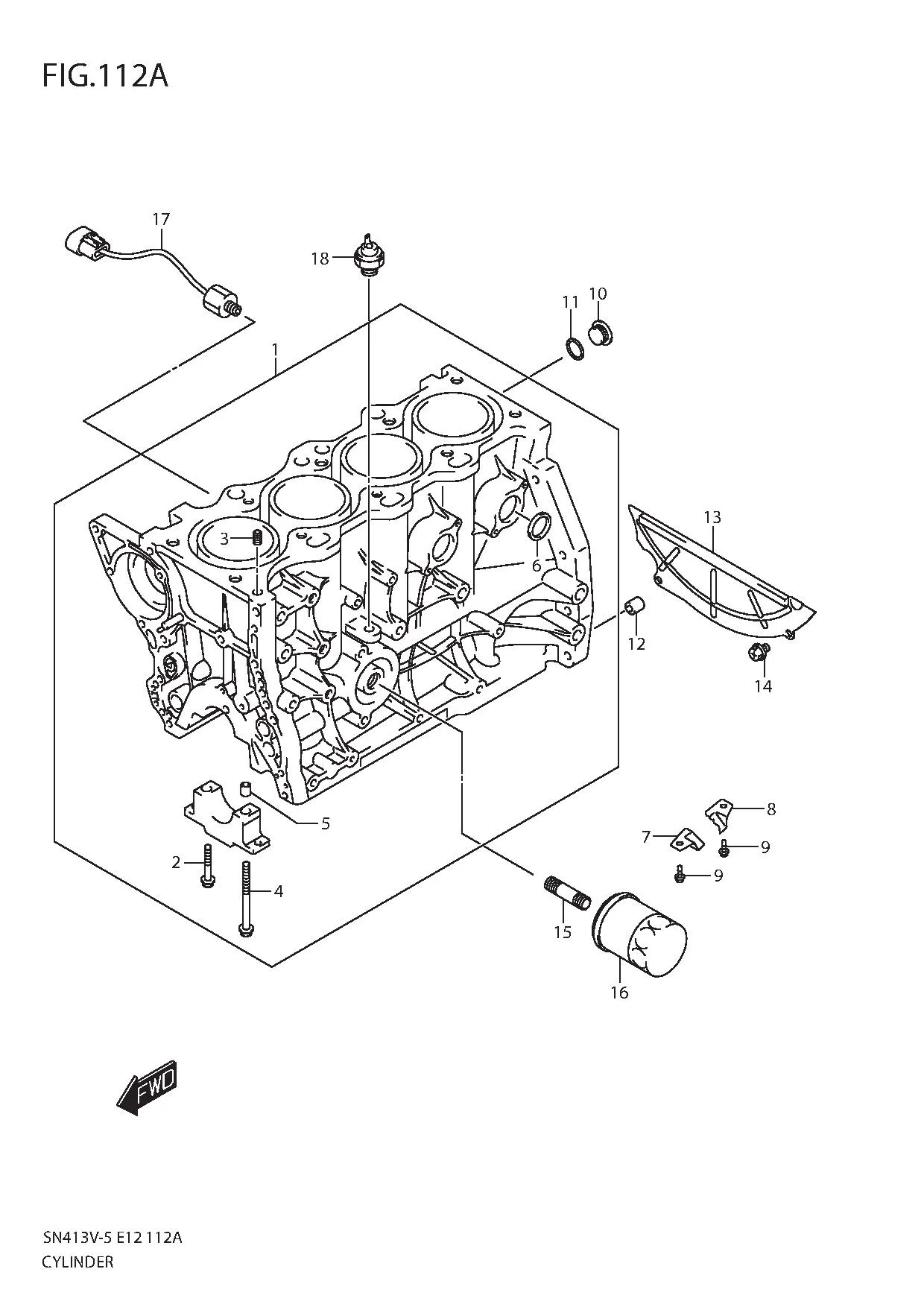

FIG.112A CYLINDER

FIG.112A CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 11200-69G08-X12 BLOCK ASSY, CYLINDER 1 Rp18.938.500
2 01550-0840A-000
SUB: 01550B0840AN000		 •BOLT 10 Rp3.500
3 11112-73010-000 •PLUG, OIL VENTURI 1 Rp24.000
4 11260-69G01-000 •BOLT (10X97) 10 Rp53.500
5 04211M13189-000 •PIN 5 Rp9.000
6 09241M30010-000 •PLUG 1 Rp5.500
7 DISCONTINUE
SUB: 11213-69G00-000		 PLATE, BREATHER FRONT 1 -
8 DISCONTINUE
SUB: 11214-69G00-000		 PLATE, BREATHER REAR 1 -
9 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -
10 09248-18011-000 PLUG 1 Rp38.000
11 11216-77E00-000 GASKET 1 Rp21.000
12 09202-08004-000
SUB: 09202B08004N000		 PIN (8X23) 2 Rp6.500
13 11320-80A00-000 PLATE, CLUTCH HOUSING LOWER 1 Rp703.000
14 02162-0610A-000 SCREW 2 Rp5.000
15 11241-65H02-000
SUB: 11241-65H01-000		 STAND, OIL FILTER 1 Rp92.000
16 16510-61A32-000
SUB: 16510-61A31-000		 FILTER ASSY, OIL (WAKO) 1 Rp164.000
17 18640-78G00-000 SENSOR ASSY, KNOCK 1 Rp1.298.000
18 37820-80GP0-000
SUB: 37820-80G02-000		 SWITCH ASSY, OIL PRESSURE 1 Rp144.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
