JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.101A SHORT ENGINE ASSYFIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTINGFIG.130A INTAKE MANIFOLDFIG.142A THROTTLE BODYFIG.150A AIR CLEANERFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.157A DELIVERY PIPEFIG.160A FUEL PUMPFIG.176A OIL PUMPFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.190A EMISSION CONTROLFIG.199A LABEL

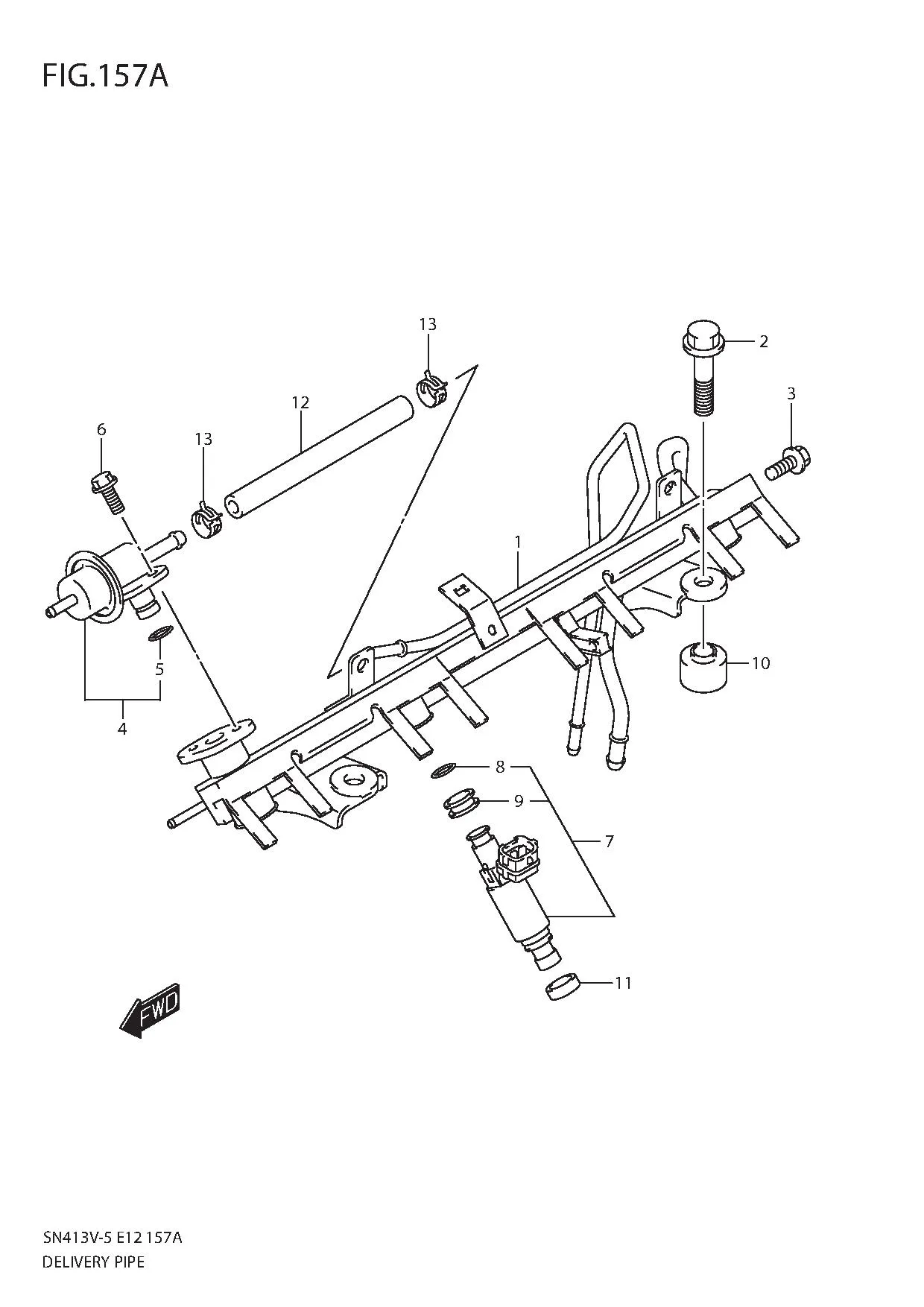

FIG.157A DELIVERY PIPE

FIG.157A DELIVERY PIPE
No No. Part Description Qty Price Per Pcs Remarks
1 15730-54D00-000 PIPE, FUEL DELIVERY 1 Rp1.303.500
2 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 2 Rp4.000
3 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
4 15610-67D00-000 REGULATOR ASSY 1 Rp1.821.000
5 DISCONTINUE
SUB: 15710-51E10-000		 •O RING 1 -
6 09103-06265-000
SUB: 09103-06168-000		 BOLT (6X10) 2 Rp21.500
7 15710-80G01-000 INJECTOR ASSY, FUEL 4 Rp4.480.500
8 15710-09300-000
SUB: 15710B09300N000		 •O RING 4 Rp13.500
9 15720-09300-000
SUB: 15720B09300N000		 •GROMMET 4 Rp11.500
10 15735-58B00-000 INSULATOR 2 Rp45.500
11 09320-09022-000
SUB: 09320B09022N000		 CUSHION 4 Rp8.500
12 09356-55117-600 HOSE (5.5X11.5X600) 1 Rp666.000 L:600->100
13 09401-10409-000
SUB: 09401B10409N000		 CLIP 2 Rp7.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
