JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.101A SHORT ENGINE ASSYFIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTINGFIG.130A INTAKE MANIFOLDFIG.142A THROTTLE BODYFIG.150A AIR CLEANERFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.157A DELIVERY PIPEFIG.160A FUEL PUMPFIG.176A OIL PUMPFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.190A EMISSION CONTROLFIG.199A LABEL

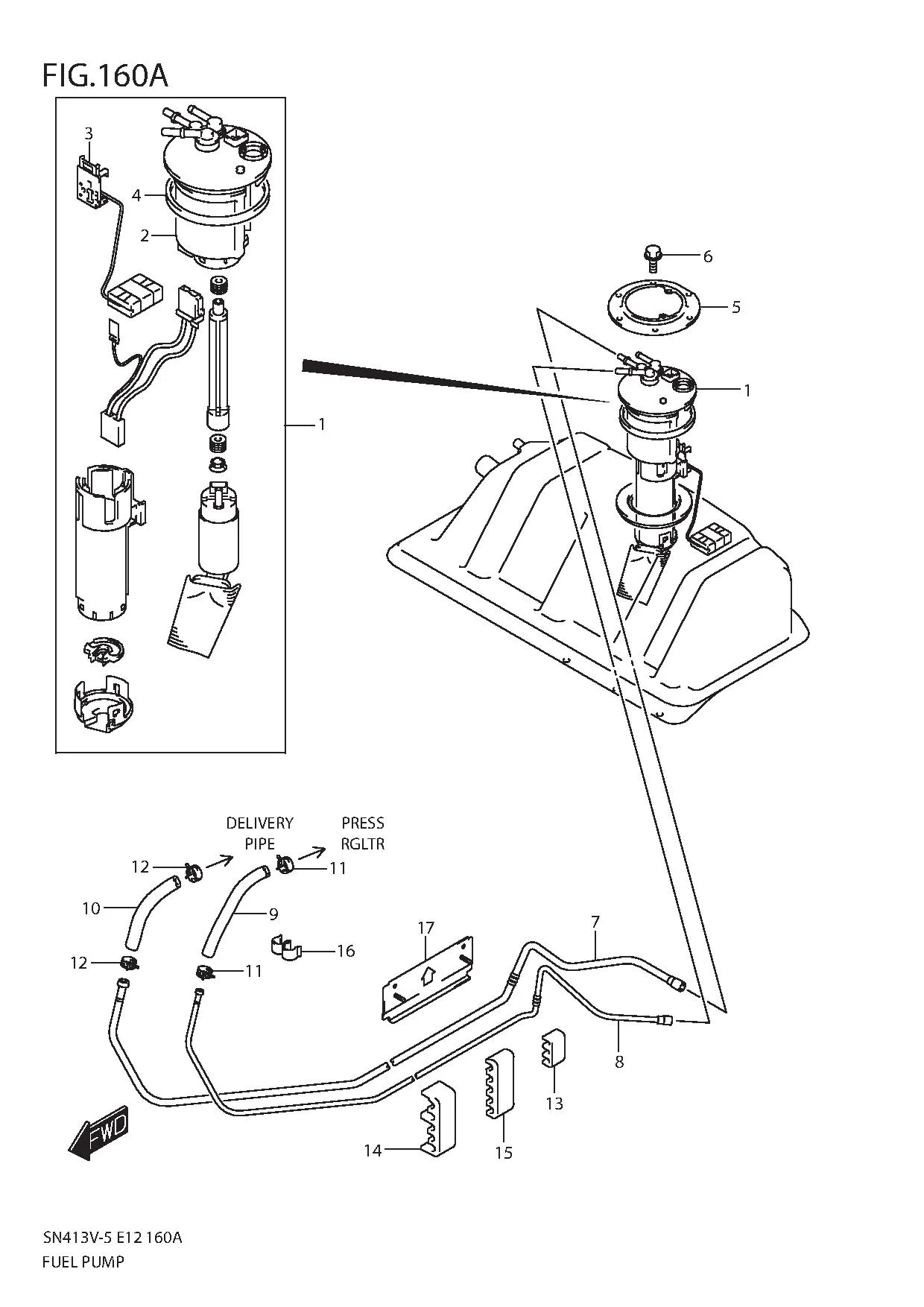

FIG.160A FUEL PUMP

FIG.160A FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 15100-81833-000 PUMP/GAUGE SET, FUEL 1 Rp8.047.000
2 15310-81A02-000 •FILTER ASSY 1 Rp3.799.500
3 DISCONTINUE
SUB: 34810-81A00-000		 •GAUGE ASSY, FUEL LEVEL 1 -
4 DISCONTINUE
SUB: 15111-50G01-000		 •GASKET 1 -
5 15121M50G00-000 PLATE 1 Rp110.500
6 01550-0610B-000
SUB: 01550B0610AN000		 BOLT 6 Rp3.000
7 15820-76J00-000 PIPE, FUEL 1 Rp752.500
8 15860-76J00-000 PIPE, FUEL RTN 1 Rp770.500
9 09356-55117-600 HOSE (5.5X11.5X600) 1 Rp666.000 L:600->230
10 09356-75147-600 HOSE (7.5X14.3X600) 1 Rp464.000 L:600->250
11 09401-10409-000
SUB: 09401B10409N000		 CLIP 2 Rp7.500
12 09401-13419-000 CLIP 2 Rp26.500
13 15893-60A11-000 CLAMP 2 Rp27.000
14 DISCONTINUE
SUB: 15895-56B11-000		 CLAMP 1 -
15 DISCONTINUE
SUB: 15895-60A11-000		 CLAMP 7 -
16 DISCONTINUE
SUB: 09408-00083-000		 CLAMP 1 -
17 15873-76J00-000 PROTECTOR 1 Rp101.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
