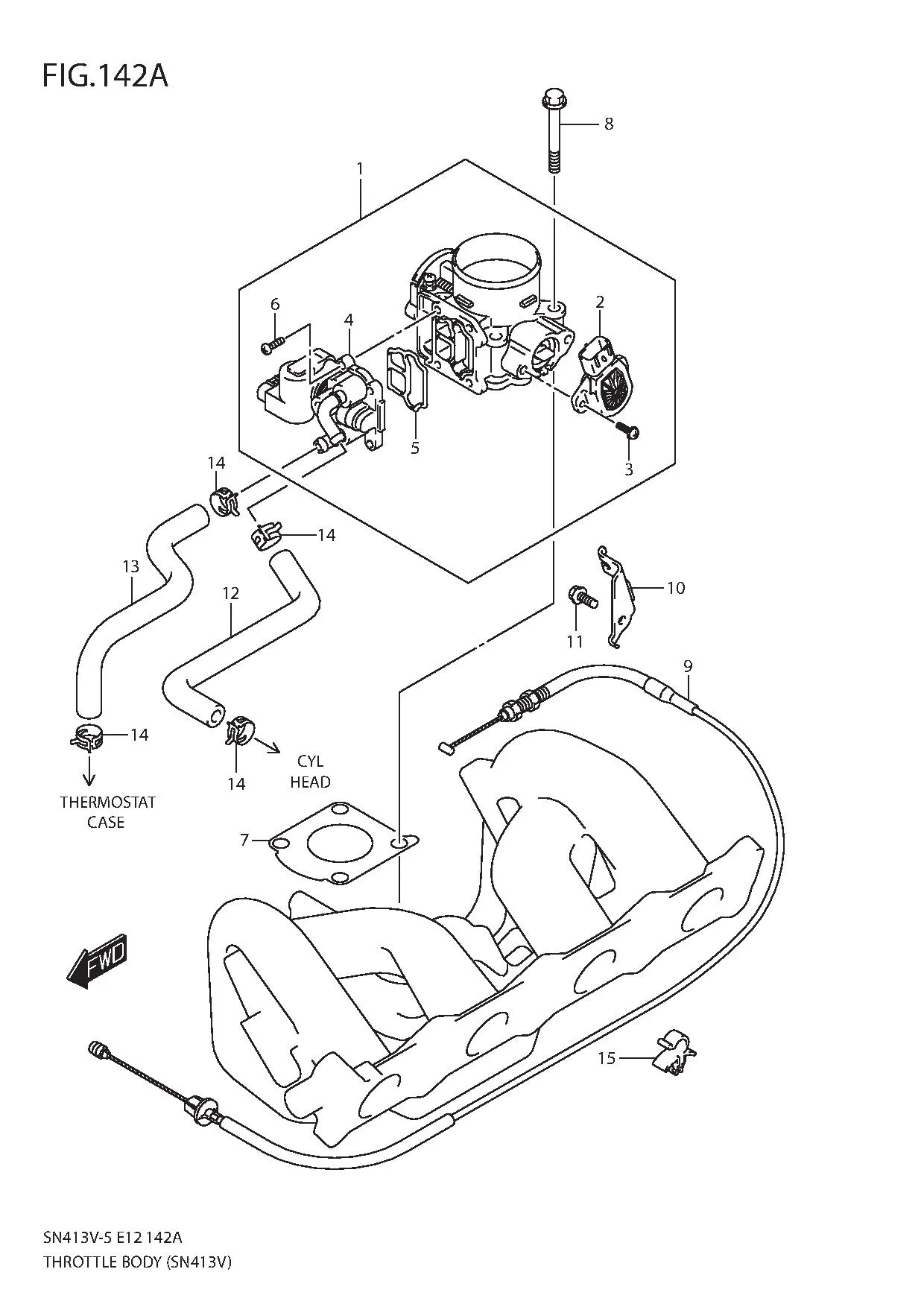

FIG.142A THROTTLE BODY

FIG.142A THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1 13400-69G02-000 BODY ASSY, THROTTLE 1 Rp10.636.500
2 13420-65D01-000 •SENSOR, THROTTLE POSITION 1 Rp2.687.000
3 13428-77G1V-000 •SCREW 2 Rp24.000
4 18117-78F11-000 •VALVE, ISC 1 Rp3.511.500
5 14139-70G30-000
SUB: 14139M70G30-000		 •GASKET 1 Rp38.500
6 13601-05148-XC0 •SCREW (5X14) 4 Rp22.500
7 13421-54G10-000 GASKET 1 Rp33.000
8 01550-0855A-000 BOLT 4 Rp3.500
9 15910-80A01-000 CABLE ASSY, ACCEL 1 Rp413.500
10 15919-80A00-000 GUIDE, CABLE 1 Rp76.000
11 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
12 13491-80GA0-000 HOSE, WATER INLET 1 Rp73.500
13 13492-80GA0-000 HOSE, WATER OUTLET 1 Rp74.500
14 09401-12410-000 CLIP 4 Rp15.000
15 DISCONTINUE
SUB: 09403-06318-000		 CLAMP 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
