JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.101A SHORT ENGINE ASSYFIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTINGFIG.130A INTAKE MANIFOLDFIG.142A THROTTLE BODYFIG.150A AIR CLEANERFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.157A DELIVERY PIPEFIG.160A FUEL PUMPFIG.176A OIL PUMPFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.190A EMISSION CONTROLFIG.199A LABEL

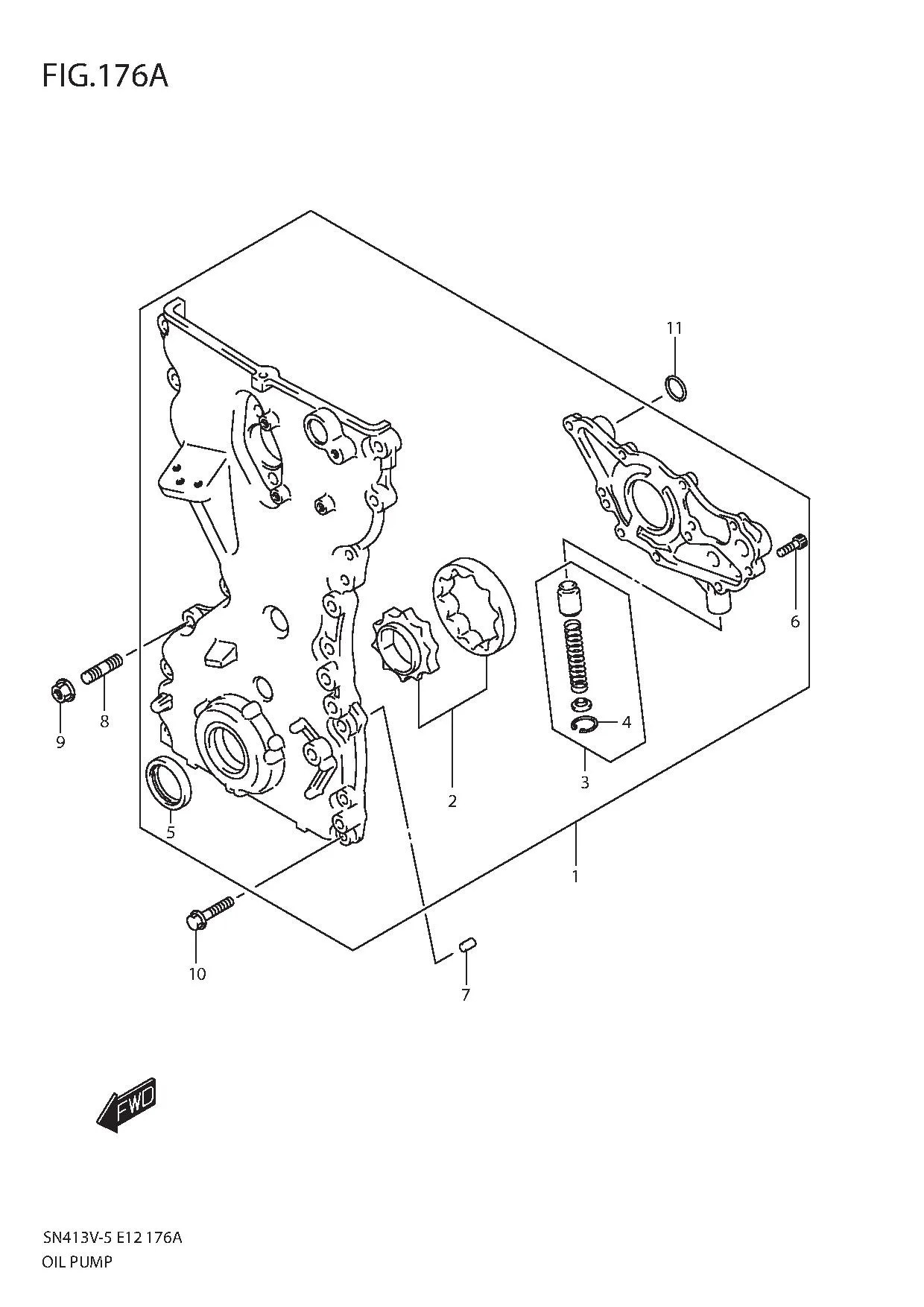

FIG.176A OIL PUMP

FIG.176A OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 16100-69G09-000 PUMP ASSY, OIL 1 Rp3.320.000
2 16130-60A00-000 •ROTOR SET 1 Rp717.000
3 16150-60A20-000 •VALVE SET 1 Rp74.000
4 DISCONTINUE
SUB: 08331-4115A-000		 ••CIRCLIP 1 -
5 09283-41003-000 •SEAL, CRANKSHAFT FRONT OIL 1 Rp94.500
6 07130-0625A-000
SUB: 07130B0625AN000		 •BOLT 10 Rp3.500
7 09206-06005-000
SUB: 09206B06005N000		 PIN (4X6X11) 2 Rp14.500
8 DISCONTINUE
SUB: 09108-08276-000		 STUD BOLT 1 -
9 08316-1008A-000
SUB: 08316B1008AN000		 NUT 1 Rp3.500
10 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 15 Rp3.500
11 51181-37B00-000
SUB: 09280B17002N000		 O RING (D:2.4,ID:16.8) 3 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
