JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.101A SHORT ENGINE ASSYFIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTINGFIG.130A INTAKE MANIFOLDFIG.142A THROTTLE BODYFIG.150A AIR CLEANERFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.157A DELIVERY PIPEFIG.160A FUEL PUMPFIG.176A OIL PUMPFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.190A EMISSION CONTROLFIG.199A LABEL

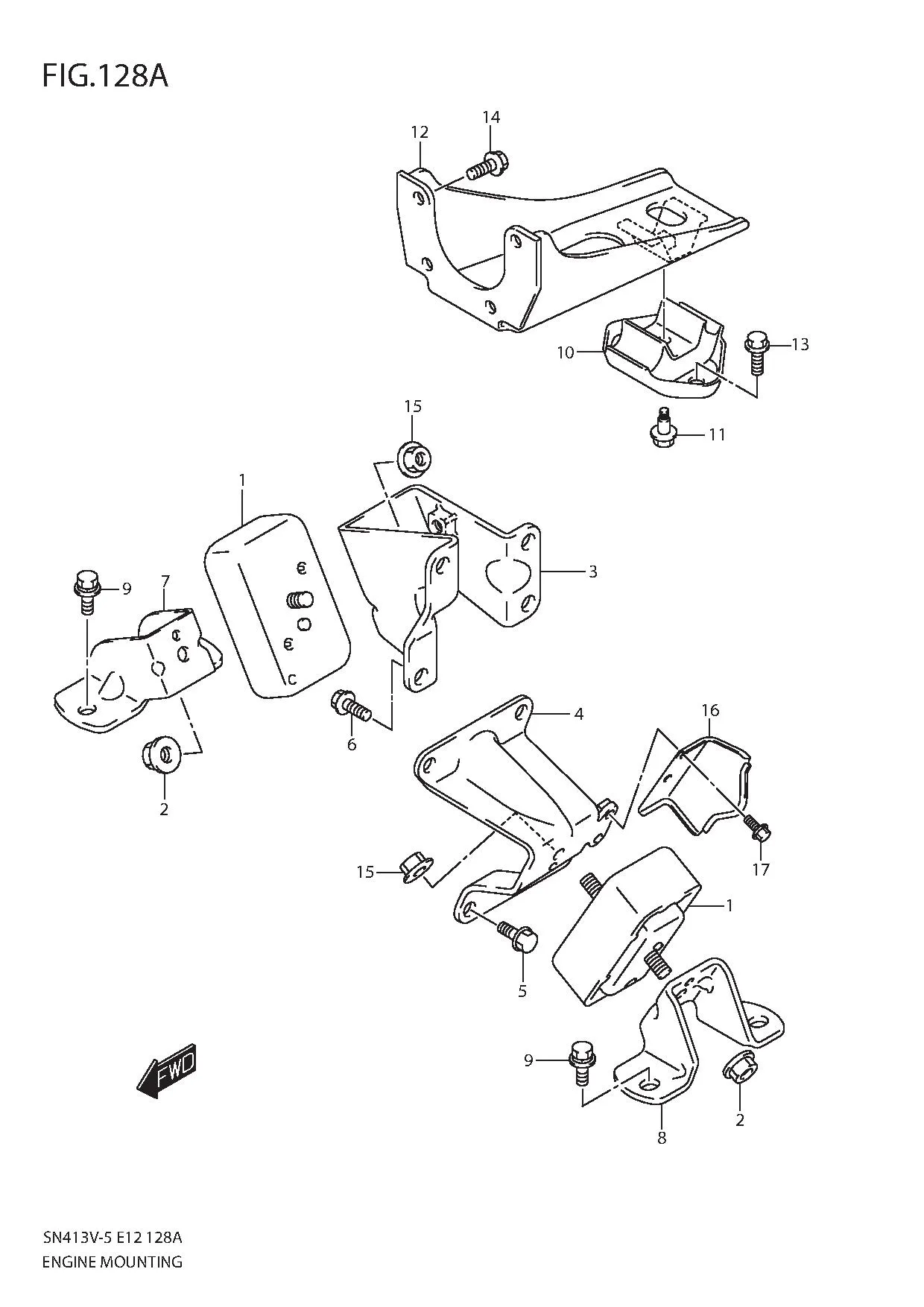

FIG.128A ENGINE MOUNTING

FIG.128A ENGINE MOUNTING
No No. Part Description Qty Price Per Pcs Remarks
1 11610-81A10-000 MOUNTING, ENGINE FRONT 2 Rp714.500
2 08316-1010A-000
SUB: 08316B1010AN000		 NUT 2 Rp3.500
3 11641-80A00-000 BRACKET, ENG FR MTG RH 1 Rp483.000
4 11650-81A10-000 BRACKET, ENG FR MTG LH 1 Rp302.000
5 01550-1025A-000
SUB: 01550B1025AN000		 BOLT 4 Rp3.500
6 01550-1025A-000
SUB: 01550B1025AN000		 BOLT 4 Rp3.500
7 11661-80A00-000 BRACKET, FR MTG RH 1 Rp186.000
8 11671-81A10-000 BRACKET, FR MTG LH 1 Rp210.500
9 09119-10091-000 BOLT (10X30) 4 Rp32.500
10 11710-76J00-000 MOUNTING, ENGINE REAR 1 Rp361.500
11 DISCONTINUE
SUB: 09135-08007-000		 BOLT (8X20) 1 -
12 11740-76JA0-000 BRACKET, REAR MOUNTING 1 Rp806.000
13 01551-0816C-000 BOLT 2 Rp13.500
14 01550-0820A-000
SUB: 01550B0820AN000		 BOLT 4 Rp5.500
15 08316-1010A-000
SUB: 08316B1010AN000		 NUT 2 Rp3.500
16 11681-81A11-000 COVER, FRONT MTG 1 Rp93.500
17 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
