HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 HANDLE SWITCHFIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 FRONT LEG SHIELDFIG.36 LOWER LEG SHIELDFIG.37 LEG SHIELDFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEATFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHELL

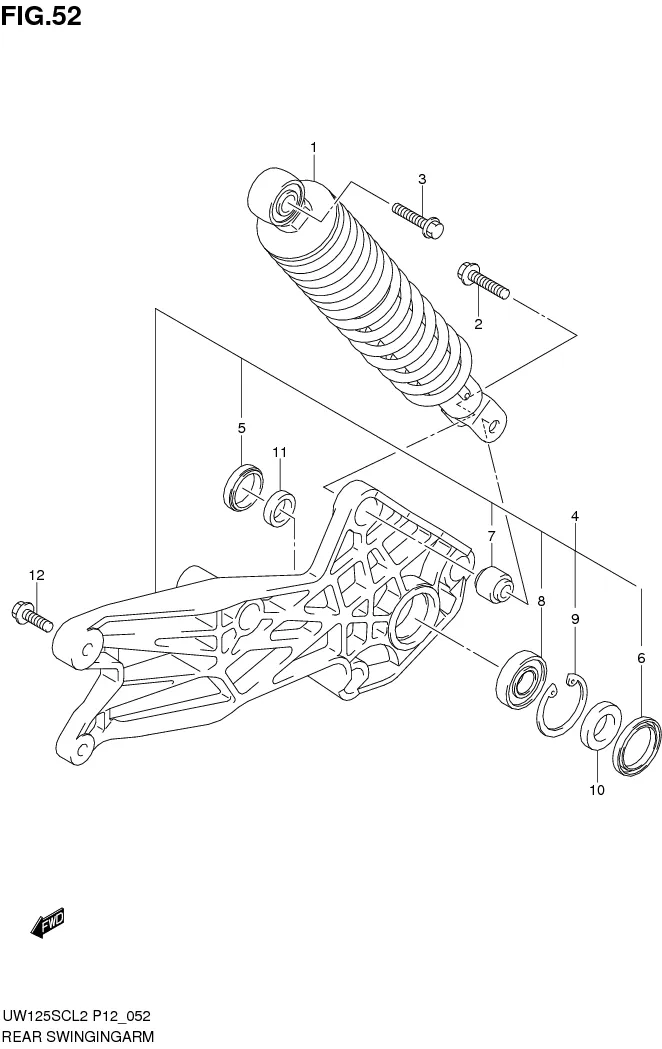

FIG.52 SWINGING ARM REAR

FIG.52 SWINGING ARM REAR
No No. Part Description Qty Price Per Pcs Remarks
1 62100-13H40-019
SUB: 62100B13H40N019		 ABSORBER, REAR SHOCK 1 Rp324.500
2 01550-1035A-000
SUB: 01550B1035AN000		 BOLT 1 Rp5.500 LOWER
3 01550-1035A-000
SUB: 01550B1035AN000		 BOLT 1 Rp5.500 UPPER
4 DISCONTINUE
SUB: 61000B13H60N019		 SWINGINGARM, REAR 1 -
5 09285-25006-000 ?SEAL 1 Rp17.000 OUTER
6 09285-25L01-000
SUB: 09285B25L01N000		 ?SEAL 1 Rp7.000 INNER
7 11316-41H10-000
SUB: 11316B41H10N000		 ?BUSH, RR CUSHION UNIT 1 Rp72.000
8 08133-62037-000
SUB: 08133B62037N000		 ?BEARING 1 Rp41.500
9 08331-41406-000 ?CIRCLIP 1 Rp20.500
10 64741-13H10-000
SUB: 64741B13H10N000		 SPACER, REAR AXLE INNER 1 Rp18.500
11 64751-13H00-000
SUB: 64751B13H00N000		 SPACER, REAR AXLE OUTER 1 Rp15.500
12 01550-0830B-000
SUB: 01550B0830BN000		 BOLT 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
