HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 HANDLE SWITCHFIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 FRONT LEG SHIELDFIG.36 LOWER LEG SHIELDFIG.37 LEG SHIELDFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEATFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHELL

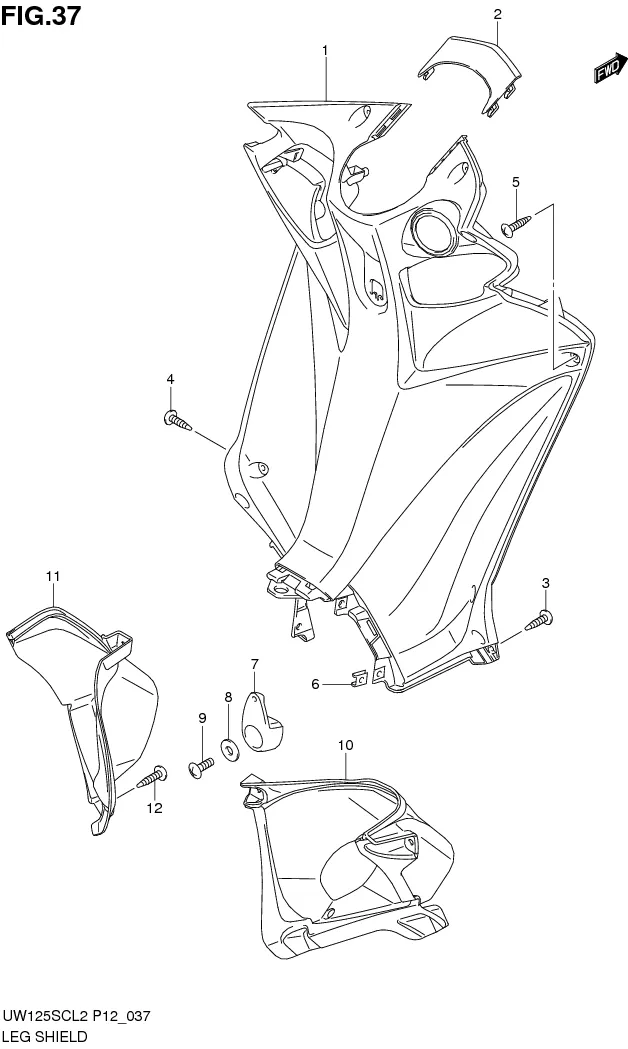

FIG.37 LEG SHIELD

FIG.37 LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1 92111B13HA0N000 COVER, LEG SHIELD 1 -
2 92113-13HA0-000
SUB: 92113B13HA0N000		 COVER, LEG SHIELD UPPER 1 Rp21.000
3 03541-0512A-000
SUB: 03541B0512AN000		 SCREW 2 Rp3.500
4 03541-0512B-000
SUB: 03541B0512BN000		 SCREW 2 Rp4.000
5 03541-0516A-000
SUB: 03541B0516BN000		 SCREW 8 Rp3.500
6 09148-05045-000 NUT 4 Rp4.000
7 92171-32G00-291
SUB: 92171B32G00N000		 HOOK, LEG SHIELD 1 Rp15.500
8 09160-06079-000 WASHER (6.5X16X1.2) 1 Rp10.500
9 02142-0612A-000
SUB: 02142B0612BN000		 SCREW 1 Rp4.000
10 92161B13HA0N000 RACK, INNER RH 1 -
11 92162B13HA0N000 RACK, INNER LH 1 -
12 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 8 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
